GATEWAY COMMUNICATIONS MANUAL
24
1.10.3 LON to AERCO XPC (with LON-OC)

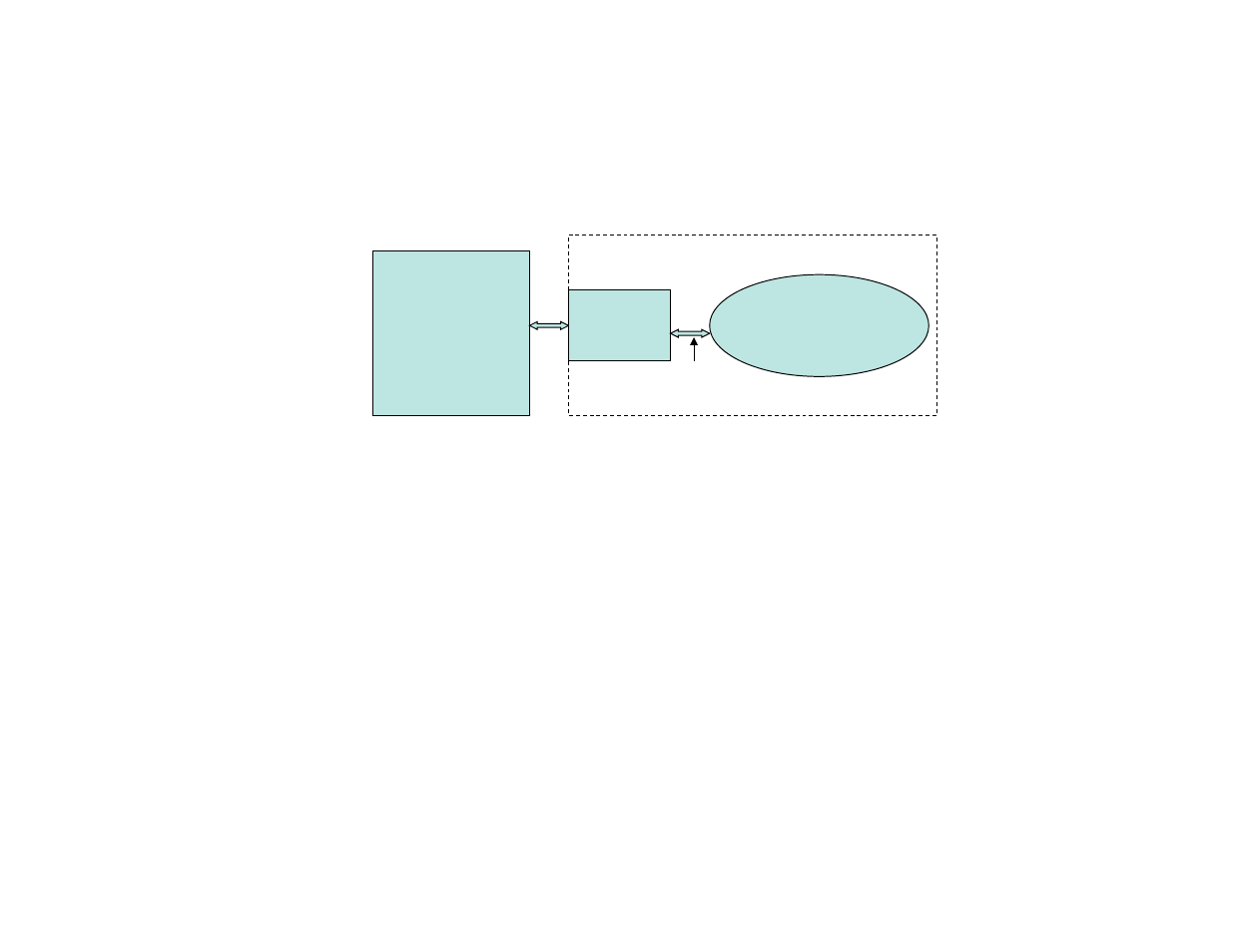

LON TO AERCO XPC (with LON-OC)
XPC “Net” Port on LON-OC:
•
Wire to “Net” Port on LON-OC  Polarity does not matter in this case. Connect shield at one end only.
8-Position Dipswitch:
•
Dipswitch 1,2 = On, Off (38.4 K baud);
•
Dipswitch 3 = Off (B.A.S. on port 1);
•
Dipswitch 4 = On (port 1b);
•
Dipswitch 5-8 = Off, On, On, On (for Lon plug-in).
Rotary Address Switches:
•
Not applicable in this case.
Note: Lon XIF files are downloadable from “www.aerco.com”.
BE SURE TO CYCLE AERCO XPC POWER AFTER MAKING ANY DIPSWITCH OR JUMPER CHANGES.
AERCO XPC
LON
Port 1b Port 2
Ftt -10a
BAS
Lo
n
LON-OC
Net
Ribbon
cable
Ftt-10a
