GATEWAY COMMUNICATIONS MANUAL
22
1.10.1 Quick Setup Guide
AERCO XPC QUICK SETUP GUIDE
Follow the instructions below to quickly wire and set up the AERCO XPC between your
Building Automation System (BAS) and AERCO equipment - Boiler Management System
(BMS/BMSII), Boiler Controls (C-MORE on Benchmark or KC1000 boilers or Boiler Control
Module (BCM) on Modulex (MLX) boilers), or Electronic Control System (ECS).
Select the 2 pages that apply to your configuration – one from pages 2 to 5 which outlines the
wiring and set up between your BAS and the AERCO XPC, and the other from pages 6 to
10 which outlines the wiring and set up between the AERCO XPC and AERCO equipment.
Note: The AERCO XPC cannot share power with other equipment. It must have its own
dedicated 24VAC supply else communication dropouts could result.

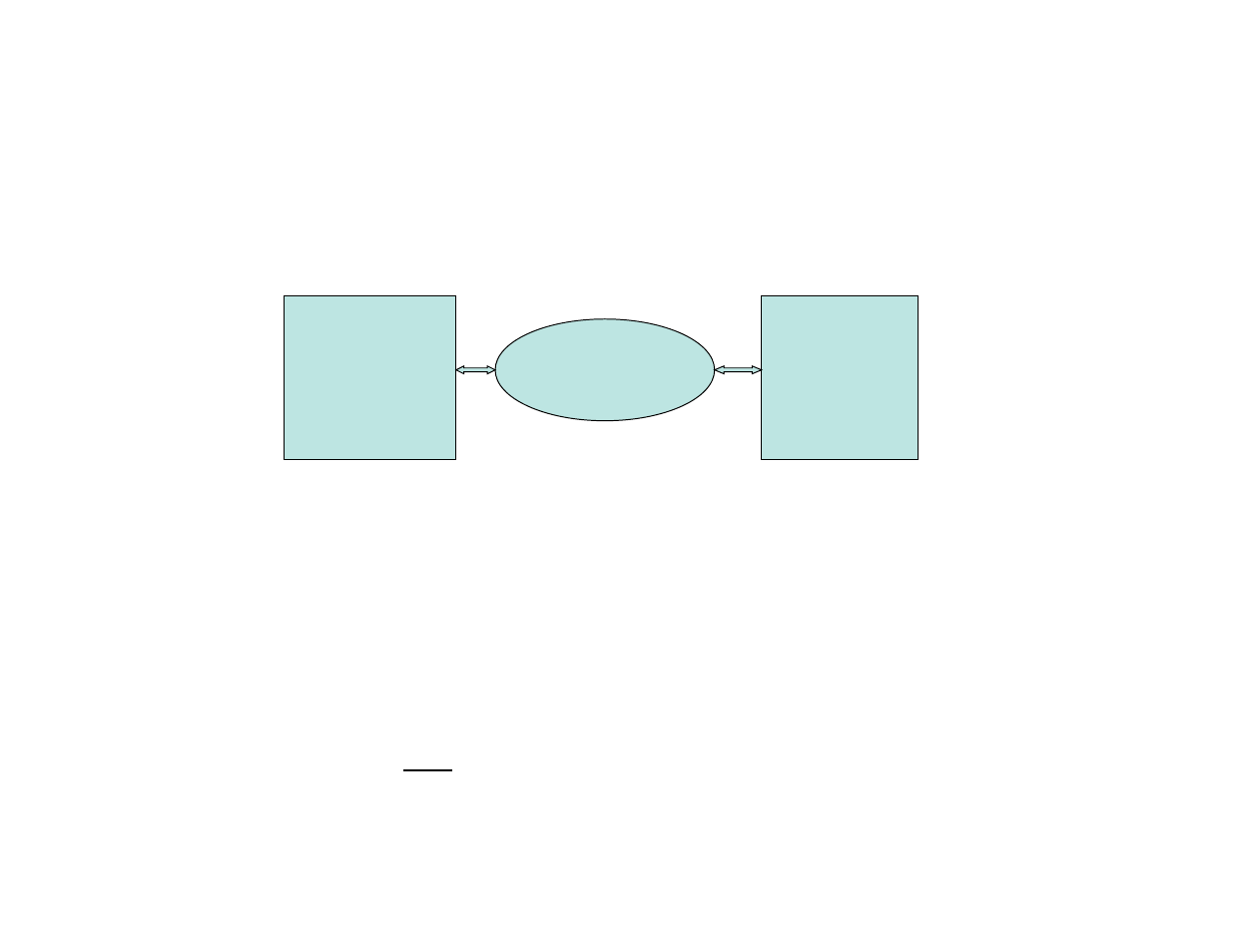

AERCO XPC
AERCO
EQUIPMENT
BUILDING
AUTOMATION
SYSTEM
An extra ground wire must be connected to the earth ground screw in the XPC metal plate.
