3-1 Making Settings
N-410 Setting
s
3
• The following settings are required to run the device in either "BL Series Multi-head mode" or "RF
Series Multi-head mode." The following applies only to multi-head mode.

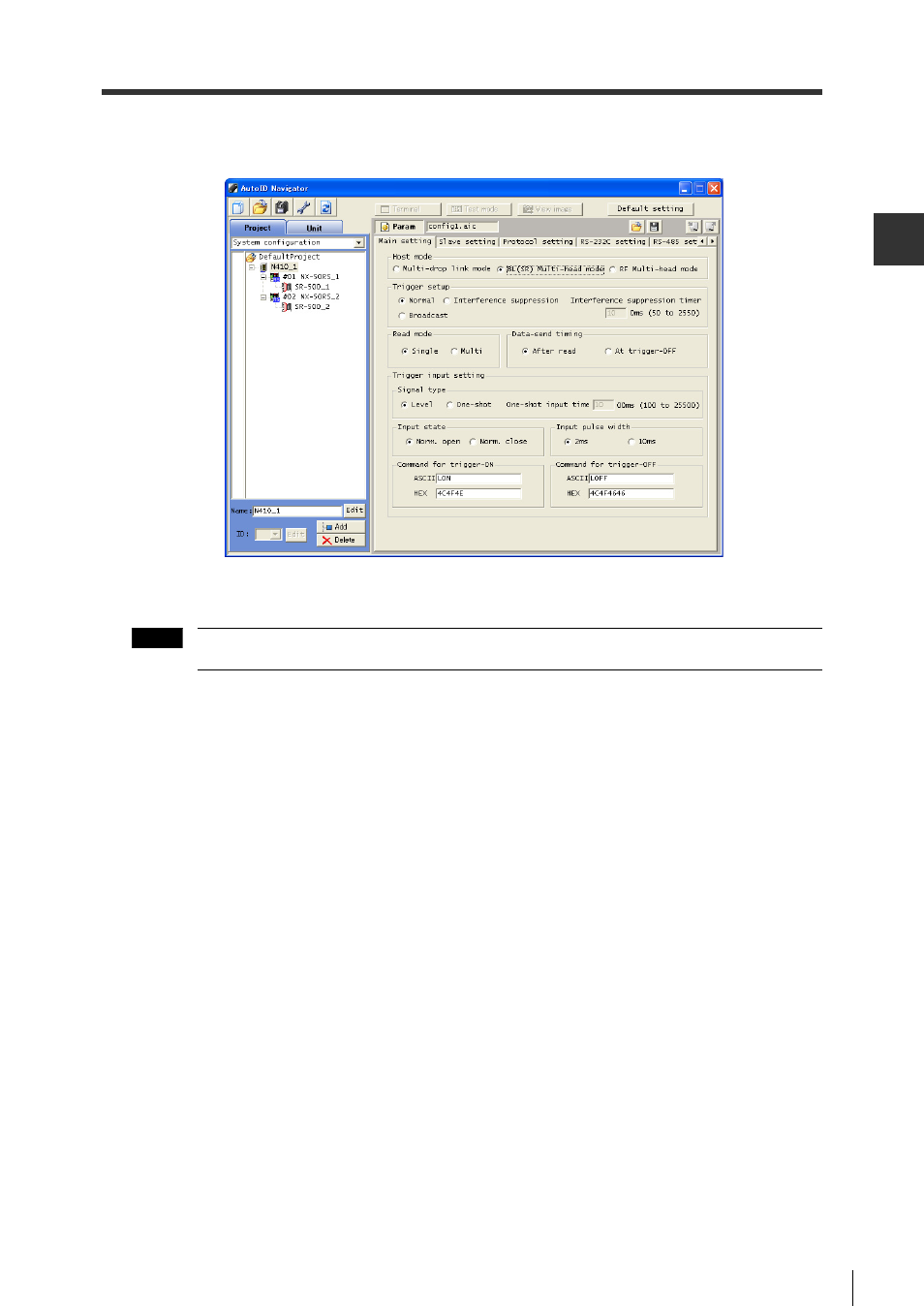

1. Select a trigger setup, either "Normal," "Interference suppression" or "Broadcast." If "Interference
suppression" is selected, set the "Interference suppression timer" (50 to 2550 ms).
If "RF Multi-head mode" is selected, "Interference suppression" cannot be selected.
2. Select either "Single" or "Multi" for the "Read mode".
3. Select either "After read" or "At trigger-OFF" for the "Data-send timing".
4. Select the following items for "Trigger input setting".
• Signal type: Select either "Level" or "One-shot" (if "One-shot" is selected, specify a one-shot input
time)
• Input state: Select either "Norm. open" or "Norm. close"
• Select either "2ms" or "10ms" for the input pulse width.
• Input the commands for trigger input on/off. These can be set to anything, up to eight characters. It
is recommended that you use the factory defaults of "LON/LOFF".
Note
