1-4
N-410 Overview
1
1-2

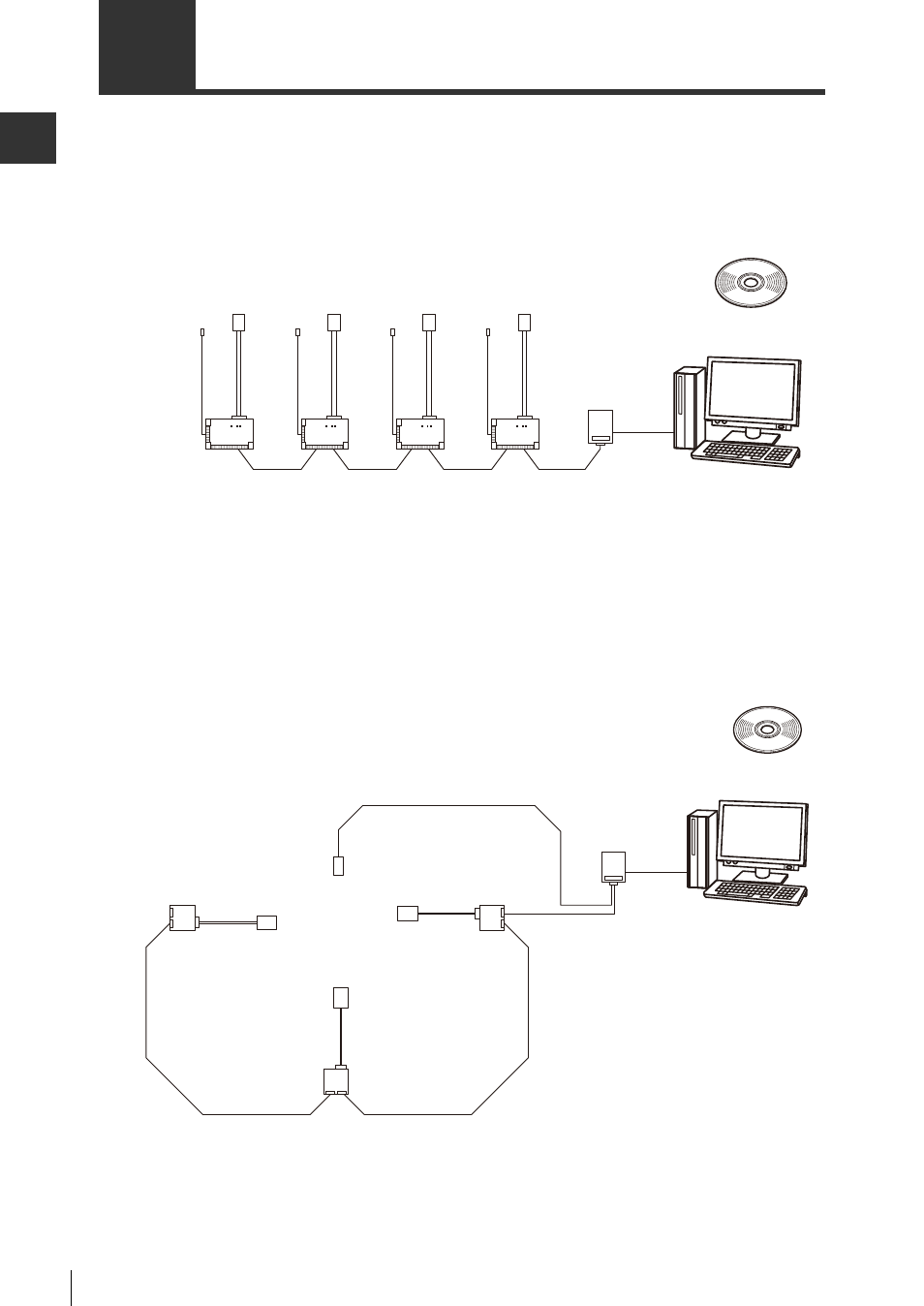

System Configuration
The system configuration for using the N-410 is as follows. The configurations for multi-drop
link mode and multi-head mode will be explained separately.
 For multi-drop link mode
• Maximum devices connected: 31
• Maximum connection distance: 1.2 km
* The settings for the N-410 are made with the AutoID Navigator.
* The devices that can be connected are the BL-1300/700/600/500/180/210 Series, the SR-500/
600 Series, and the RF-500 Series.
* The N-410, N-R4, N-48 and NX-50RS all requires a 24 V DC power source.
 For multi-head mode (including using interference suppression)
• Maximum devices connected: 31
• Maximum connection distance: 1.2 km
* Connect a trigger sensor to the N-410.
* The devices that can be conned are the BL-1300/700/600/500/180/210 Series, the SR-500/600
Series, and the RF-500 Series.
* The N-410, N-R4, N-48 and NX-50RS all requires a 24 V DC power source.
N-410
AutoID
Navigator
RS-485
RS-232C
N-R4
N-48
BL-U1
or
NX-50RS
Trigger
sensor
N-410
RS-485
RS-232C
Trigger sensor
N-R4
N-48
BL-U1
or
NX-50RS
AutoID
Navigator
