2-10
Inst
allatio
n
2
2-3

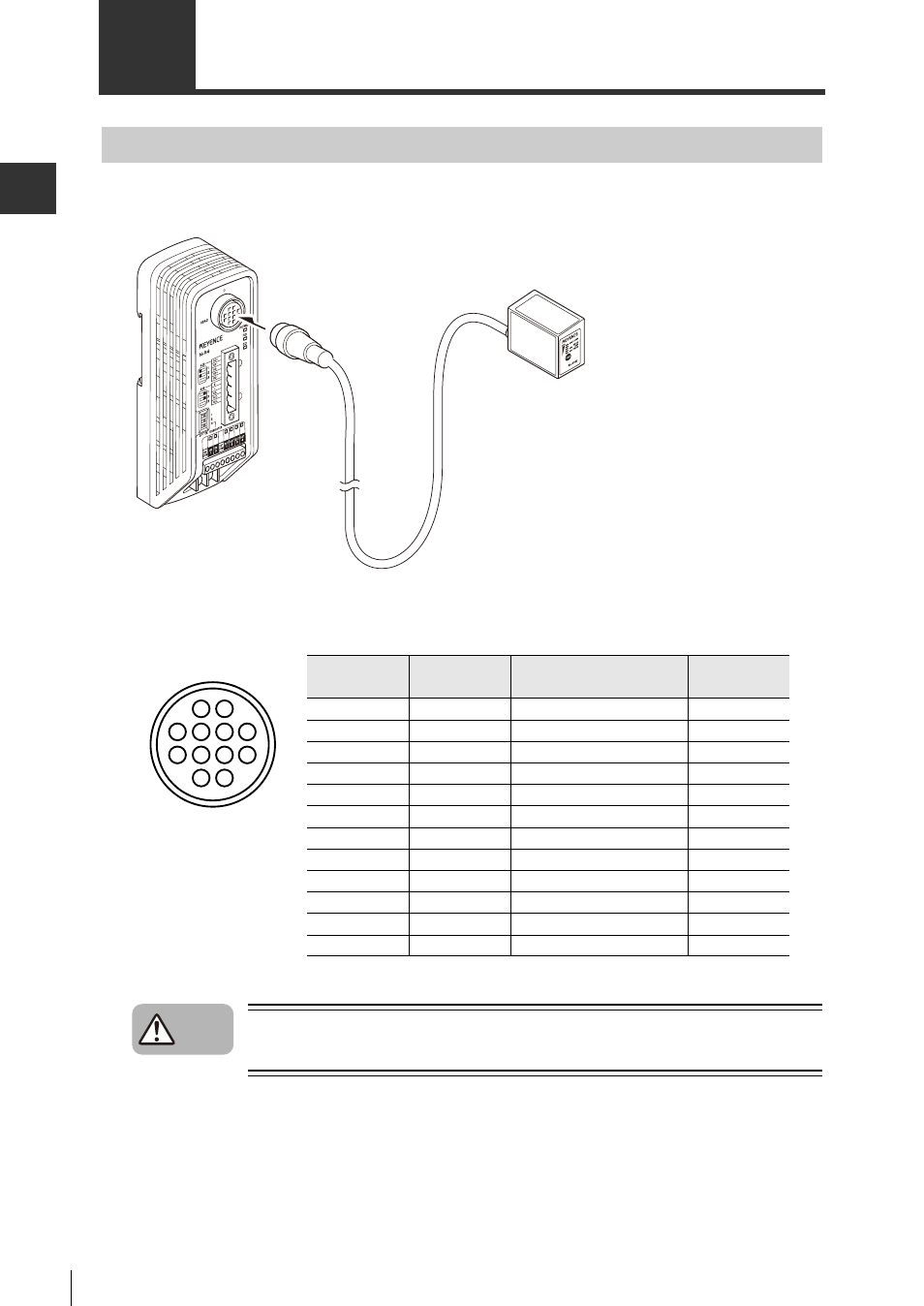

Connecting and Wiring to the N-R4 Series
Connecting to BL-1300 Series/SR Series/RF Series Devices
Use the N-R4 when connecting an N-410 Series device to a BL-1300 Series/SR Series/RF Series
device. Connect it in the following way.
 Pin layout of the head port
Install and remove connection cables with the power OFF.
Pin
number
Name Signal name
Signal
direction
1 OUT1 For OUT1 input Input
2 OUT2 For OUT2 input Input
3 TXD Data transmission Input
4 CTS Transmission permitted Output
5 OUT4 For OUT4 input Input
6 IN2 For IN2 output Output
7 RXD Data reception Output
8 RTS Transmission request Input
9 OUT3 For OUT3 input Input
10 IN1 For IN1 input Output
11 +5V +5V power supply Output
12 GND GND –
3
7
4
8
5
1 2
9
11 12
6
10
Round 12-pin jack
Caution
