Main Components

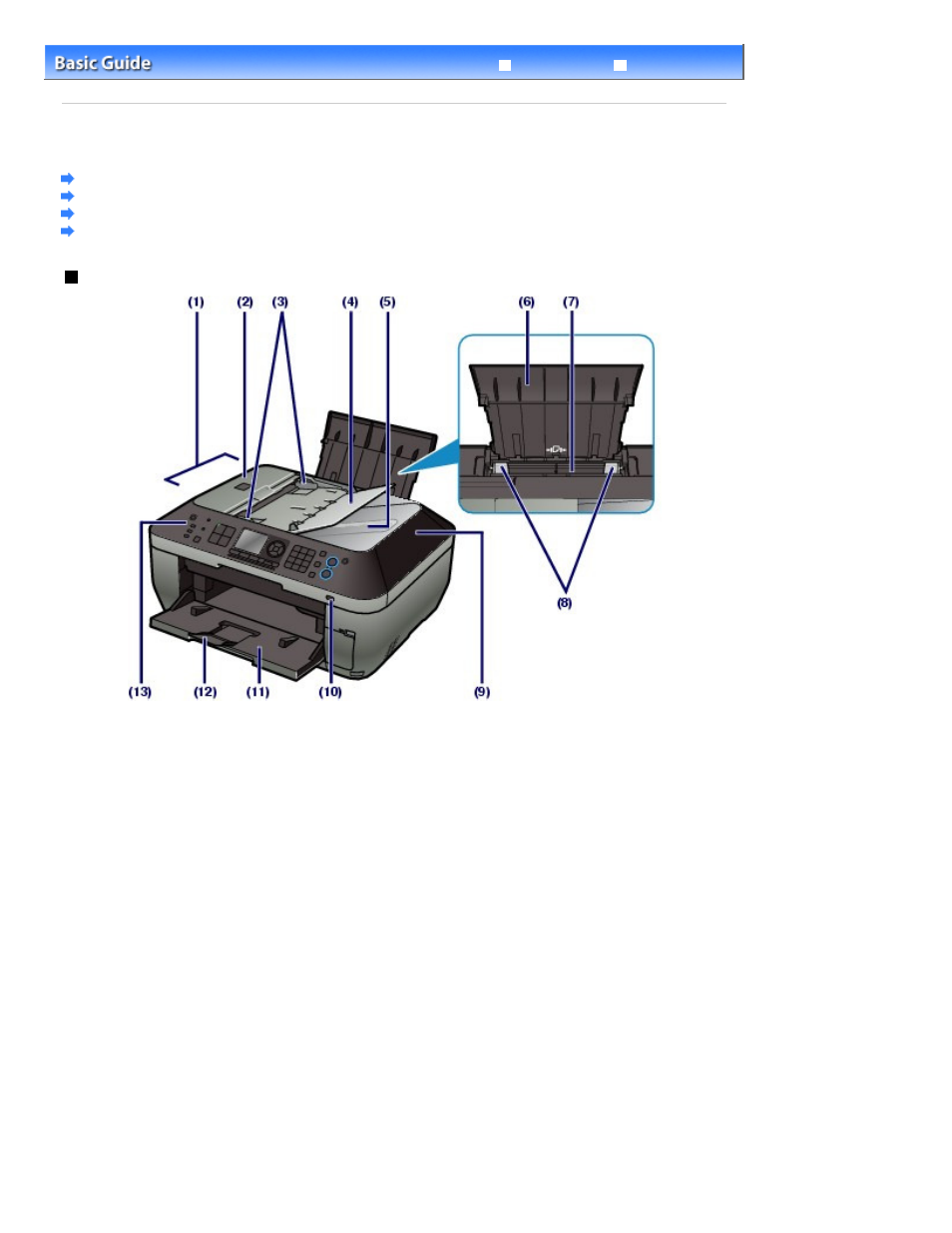

Front View
Rear View
Inside View
Operation Panel
Front View
(1)
ADF (Auto Document Feeder)
Load a document to copy, scan, or fax. The documents loaded in the Document Tray are scanned
automatically one sheet at a time.
See Loading Documents in the ADF .
(2)
Document Feeder Cover
Open when clearing jammed documents.
(3)
Document Guides
Adjust these guides to match the width of document in the ADF.
(4)
Document Tray
Open to load a document in the ADF. You can load two or more sheets of document of the same size and
thickness. Load the document with the side you want to scan facing up.
(5)
Document Output Slot
Documents scanned from the ADF are delivered here.
(6)
Paper Support
Raise and tip back to load paper in the Rear Tray.
(7)
Rear Tray
Load photo paper or envelopes which you can use on the machine. Two or more sheets of the same size
and type of paper can be loaded at the same time, and fed automatically one sheet at a time.
See Loading Paper .
(8)
Paper Guides
Slide to align with both sides of the paper stack.
