Installation
8200SHB0199 4-42

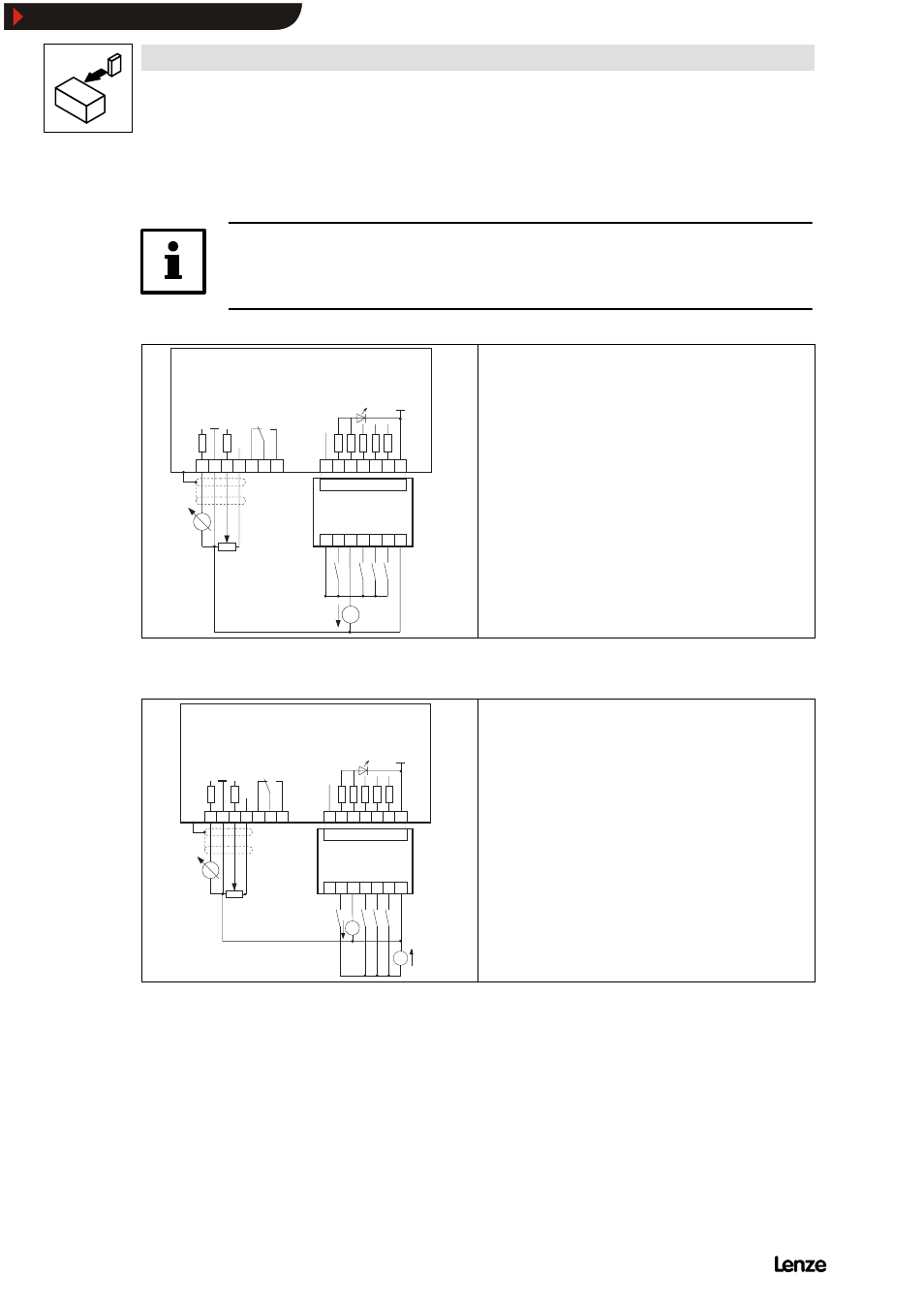

4.2.8.4 Connection diagrams: Analog plug-in module
Note!
Only controllers of the series 8210, 8220 and 8240 HVAC can be equipped with
an analog plug-in module.
62 7 8 9 K11K12K14 20 28 E1 E2 E3 E4 39
821X/822X/824X HVAC (V020)
20 28 E1 E2 E3 E4 39
8279
R
K3501421
3K
GND2
GND1
VCC15
5%
0 ... 10 V
0 ... 20 mA
4 ... 20 mA
Connection
Voltage supply for the 8279 plug-in module:
- Plug the module on the controller.
- Bridge terminals 7 and 39.
Note:
With this type of wiring there are 2 or more wires connected to
one terminal. To avoid this, provide an external connection facility.
FIG 4-26 Control connections: Supply with internal control voltage
62 7 8 9 K11K12K14 20 28 E1 E2 E3 E4 39
821X/822X/824X HVAC (V020)
20 28 E1 E2 E3 E4 39
8279
R
K3501422
3K
GND2
GND1
VCC15
5%
12 ... 30V
0 ... 10 V
0 ... 20 mA
4 ... 20 mA
Danger!
There is no mains isolation between external supply and unit
mass.
There is no double mains isolation between the mains and the
terminals.
Therefore, the unit is not electrically isolated, i.e. not protected
against contact.
Connection
Voltage supply for the 8279 plug-in module:
- Plug the module on the controller.
- Bridge terminals 7 and 39.
Note
With this type of wiring there are 2 or more wires connected to
one terminal. To avoid this, provide an external connection facility.
FIG 4-27 Control connections: Supply with external control voltage (+12 V ... +30 V)
GND1 Reference for internal voltages
GND2 Reference for external voltages
GND1 and GND2 have a potential isolation inside the unit.
