4.1.2 Standard assembly with fixing rails or fixing brackets
4.1.2.1 Types 8201 to 8204
g
Ty
p
Id
.-N
R
Fer
t.-
Nr
Se
rie
n-N
r.
Ei
ng
an
g1
Ei
ng
an
g2
Lenze
Postfach101352 ,31763 HAMELN
?
k
a
A
d b
!

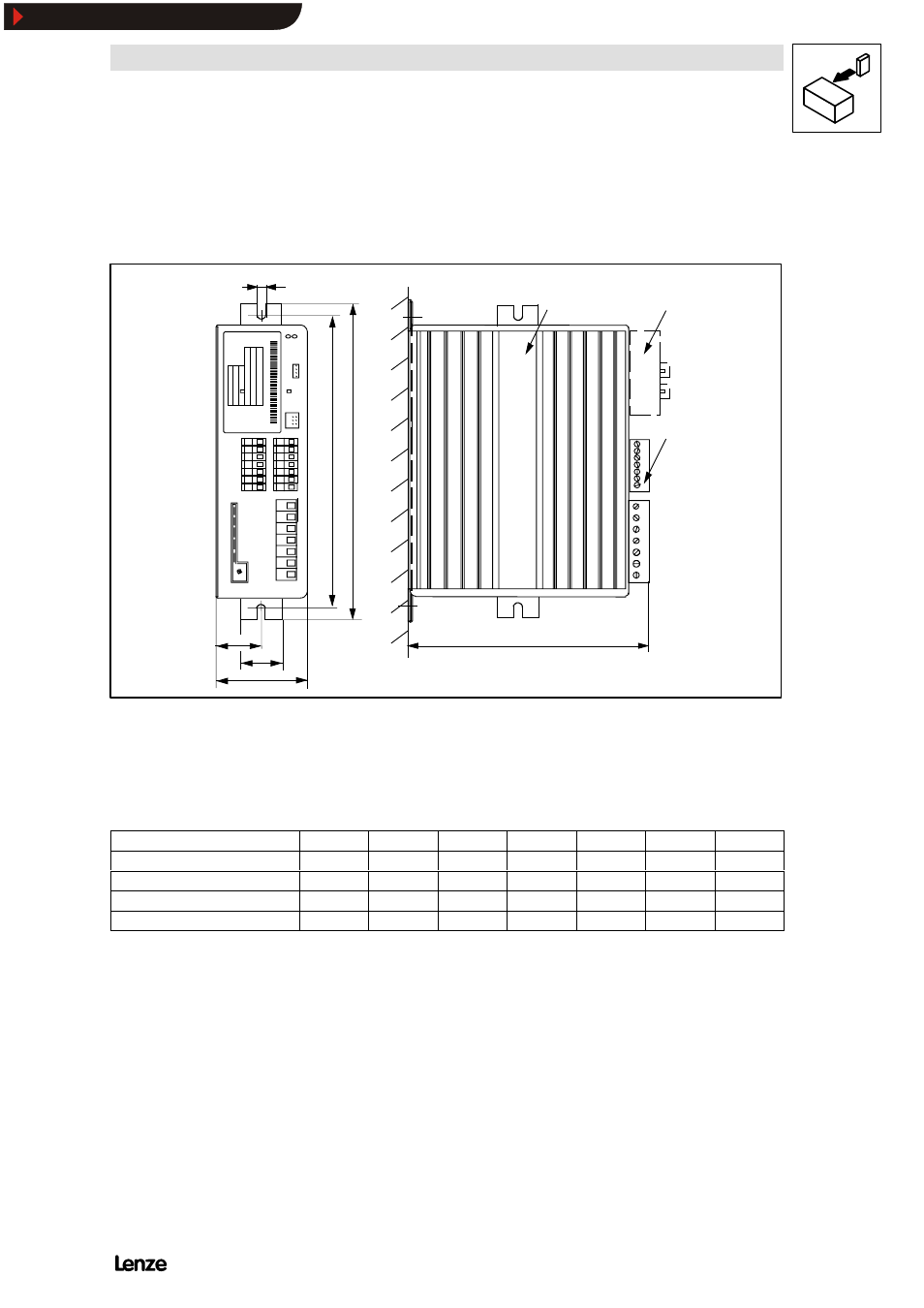

FIG 4-1 Dimensions 8201 - 8204: Standard assembly
1) Insert the fixing rail here for side assembly
2) Observe the free space required for the connection cables
3) With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm] a b c d e 3) g k
8201 64 210 29 190 158 6.5 30
8202 64 210 29 190 198 6.5 30
8202-V002 64 210 29 190 158 6.5 30
8203 / 8204 83 283 38 263 211 6.5 30
4.1.2.2 Type 8202-V002 (reduced assembly depth)
This variant is equipped with a heat sink with a smaller surface. Observe the
following points to comply with the technical data:
-
Assembly on an unpainted, metallic assembly board.
-
Area > 0.15 m 2 .
-
Sheet thickness at least 2 mm.
