Installation
8200SHB0199 4-6
4.1.2.5 Types 8221 to 8227
Assembly preparation (see FIG 4-4)
To assemble and install the controller it is necessary to remove the unit
cover. The accessory kit inside the controller contains the parts required
for assembly and installation. 1.Loosen screws (x).
2.Swing cover to the top and detach.
3.Screw fixing brackets onto the housing.
(x)
3)

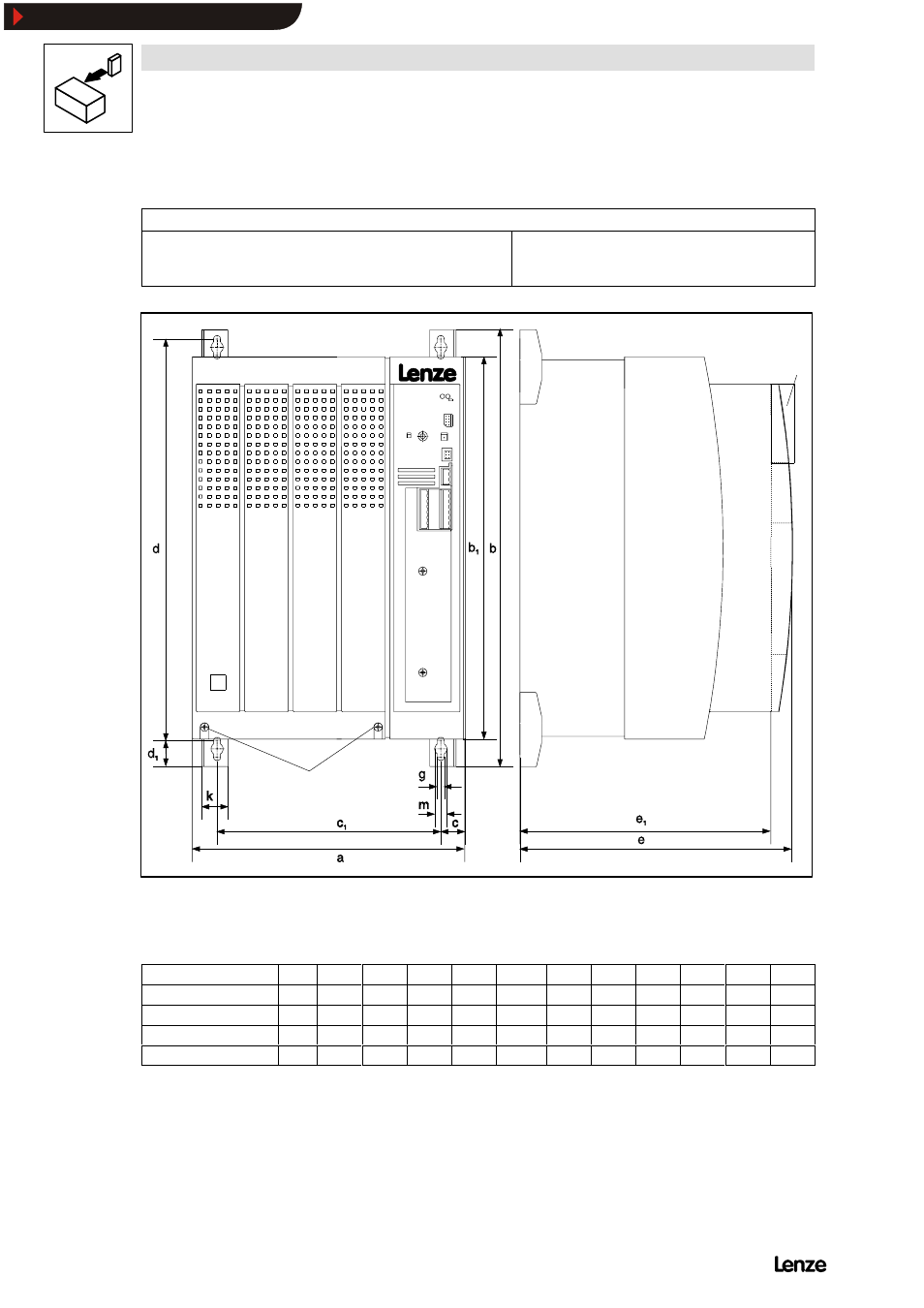

FIG 4-4 Dimensions 8221 - 8227: Standard assembly
3) With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm] a b b1 c c1 d d1 e 3) e1 g k m
8221 / 8222 / 8223 250 402 350 22 206 370 24 250 230 6.5 24 11
8224 340 580 510 28.5 283 532 38 285 265 11 24 18
8225 340 672 591 28.5 283 624 38 285 265 11 28 18
8226 / 8227 450 748.5 680 30.5 389 702 38 285 265 11 28 18
