Network of several drives
8200SHB0199 10-15
10.4.2 Central supply via 934X for 821X/822X/824X/93XX
L1 L2 L3
F1...F3
934X
PE +UG -UG
Z1
K1
U V W
M
3~ PE
L1 L2 L3 PE +UG -UG
PE U V W
M
3~ PE
L1 L2 L3 PE +UG -UG
PE
F4 F5
Z2
M
3~
L3
N
PE
L1
L2
K1
K1
Mot1
ϑ
ON
OFF
Mot2
ϑ
Mot1 Mot2
821X/ 822X
824X/ 93XX
821X/ 822X
824X/ 93XX

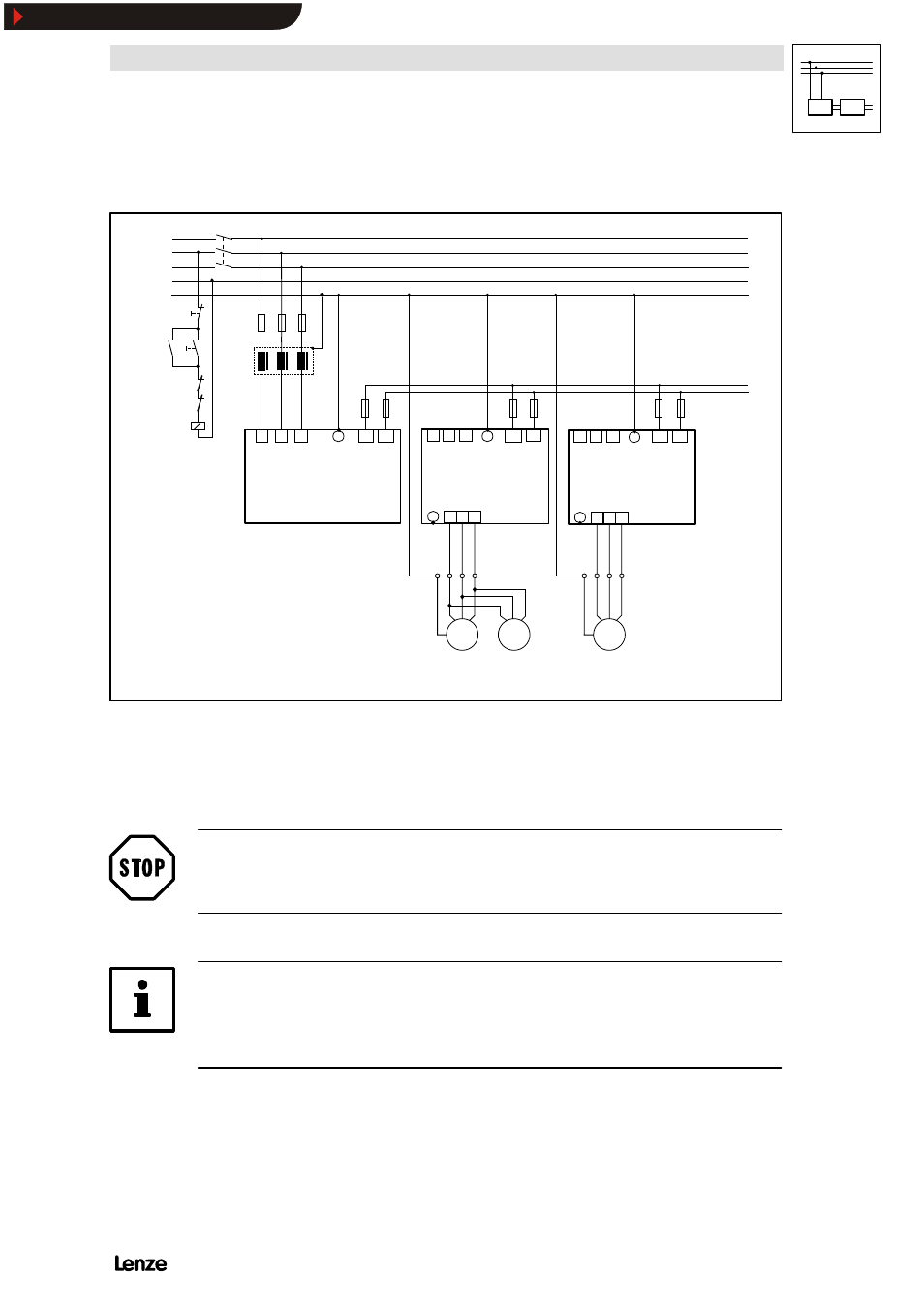

FIG 10-3 Principle diagram: Central supply for network operation of 821X/822X/824X/93XX
Z1
Mains filter/choke
Z2 Regenerative power supply
F1 ... F5 Fuses
K1 Main contactor
Stop!
The DC-bus voltage thresholds of the 93XX controller and the 934X supply unit
must be set to the same value.
Note!
Z2 is selected after balancing the power in the DC-bus. If the power supply of the
supply is not sufficient, a parallel supply can be installed via the mains input of a
controller (see Network of severval drives with decentral supply).
