Installation
8200SHB0199 4-20
Wall mounting of Lenze convection coolers
1. Use the 8 fixing screws M5 x 20 to screw the convection cooler onto the
cold plate.
- The fixing screws are included in the delivery package of the convection
cooler.
- For other screws observe the insertion depth t in the cold plate:
8 mm
$
t
$
10 mm
- Tightening torque: 3.4 Nm.
2. Fix the unit at the wall by screwing the 4 screws (max. diameter 8 mm)
through the bores provided.
Ty p Id .- N R
Fe rt .- Nr
Serie
n -N r.
Einga
n g1
Einga
n g2
Lenze
Postfach 101352 ,31763 HAMELN
a
b d
f e c
g
3)
max. 75 °C

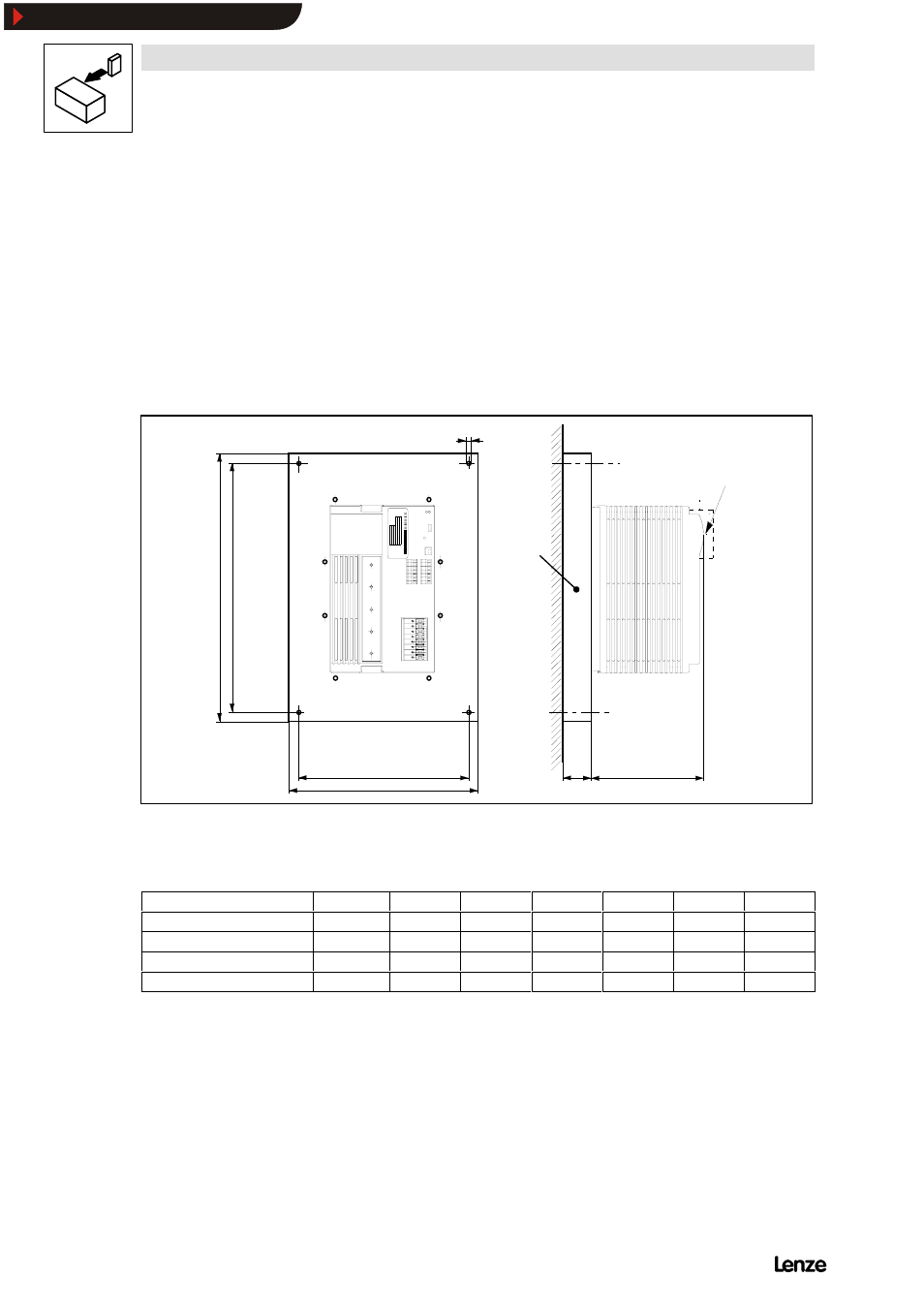

FIG 4-12 Dimensions 821X-V003: Wall mounting of Lenze convection coolers
3) With of attachable fieldbus or I/O modules:
Observe the assembly depth and the space required for connection cables.
[mm] a b c d e 3) f g
8215-V003 300 400 230 320 138 83 9
8216-V003 300 500 230 320 138 83 9
8217-V003 300 600 230 320 138 83 9
8218-V003 300 750 230 320 138 83 9
