Controls for the MCS-Spectrum

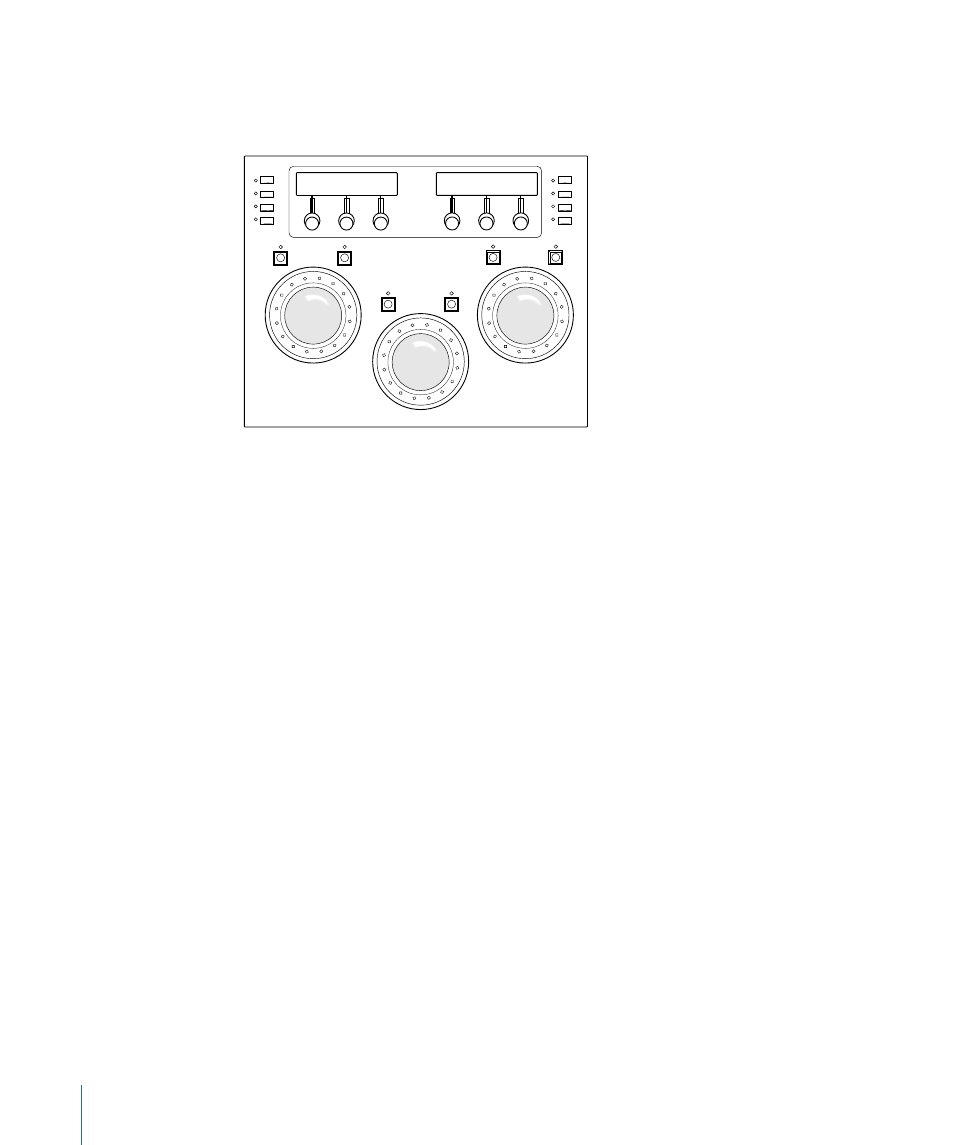

Many of the controls in the MCS-3000 and MCS-Spectrum are identified by the text
displays running along the top of each panel.
B3 R3
B2
B1 R1
R2
PAGE 5
PAGE 6
PAGE 8
PAGE 7
PAGE 1
PAGE 2
PAGE 4
PAGE 3
The less obvious controls and functions are as follows:
• R1: Reset Shadow contrast slider
• B1: Reset Shadow color control
• Left joyball: Shadow color control adjustment
• Left wheel: Shadow contrast slider adjustment (black point)
• R2: Reset Midtone contrast slider
• B2: Reset Midtone color control
• Center joyball: Midtone color control adjustment
• Center wheel: Midtone contrast slider adjustment (gamma)
• R3: Reset HIghlight contrast slider
• B3: Reset Highlight color control
• Right joyball: HIghlight color control adjustment
• Right wheel: HIghlight contrast slider adjustment (white point)
Tangent Devices CP100 Control Surface
The Tangent Devices CP100 is a single, large control surface that combines all available
functionality into a single device.
The following procedure describes how to configure and use this control surface with
Color.
Note: You must be logged in as an administrator to set up the Tangent Devices CP100.
