Installing Hardware
Installing expansion cards
67
3 Remove the fan module.
4 Disconnect the SCSI cable from the main board. Do not pull the cable.
Grasp the connector and pull straight out. Free the cable from a plastic clasp
on the floor of the server.

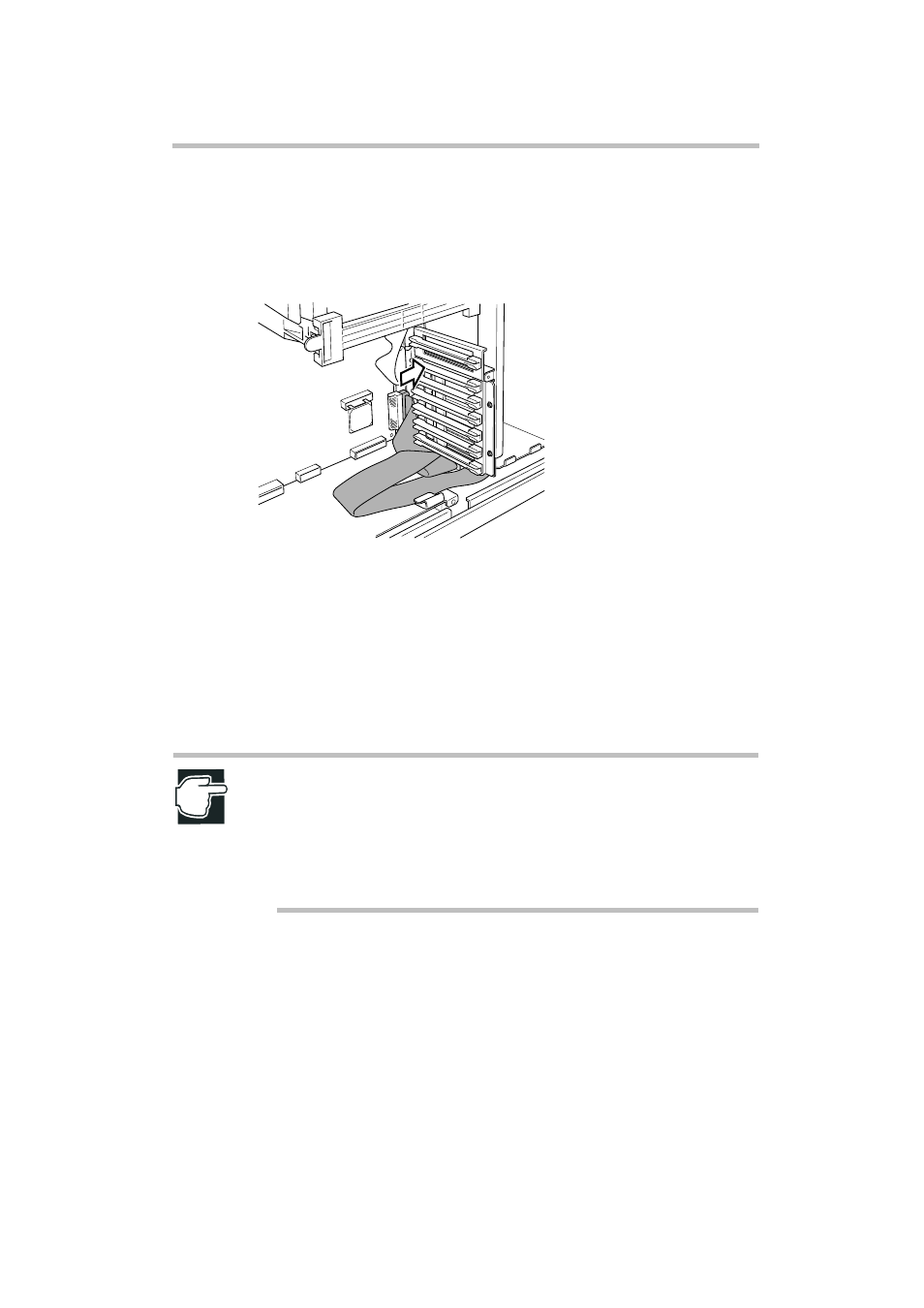

Removing the SCSI cable
5 Install the fan module.
6 Partially unlock the I/O lockdown bracket of the card or slot cover above the
slot in which you are installing the card as shown in step 3 in “Installing the
expansion card” on page 65. Pull the I/O lockdown bracket up a little past
90 degrees, so that the bottom of the lock does not obstruct access to the
target slot. Do not unlock it fully, because the card or slot cover could drop
down.
NOTE: If installing optional memory in the RAID controller, do so before
installing the card. The standard 16 MB memory can be upgraded to 64
MB. See your RAID memory module installation guide.
To remove a memory module, push the two pins to the outside. Grasp the
edges of the card and pull it out. To install a memory module, press it into
place and push down carefully until it is secured by the pins.
7 Install the RAID card into an available PCI slot. Place the slot cover on the
inside of the slot and fit the plastic support at the other end into the
appropriate rail level with the server. Push the card forward until its
connection is secure. Be careful not to catch the card on the slot’s top and
bottom tabs.
