Installing Hardware
Adding internal SCSI devices 52

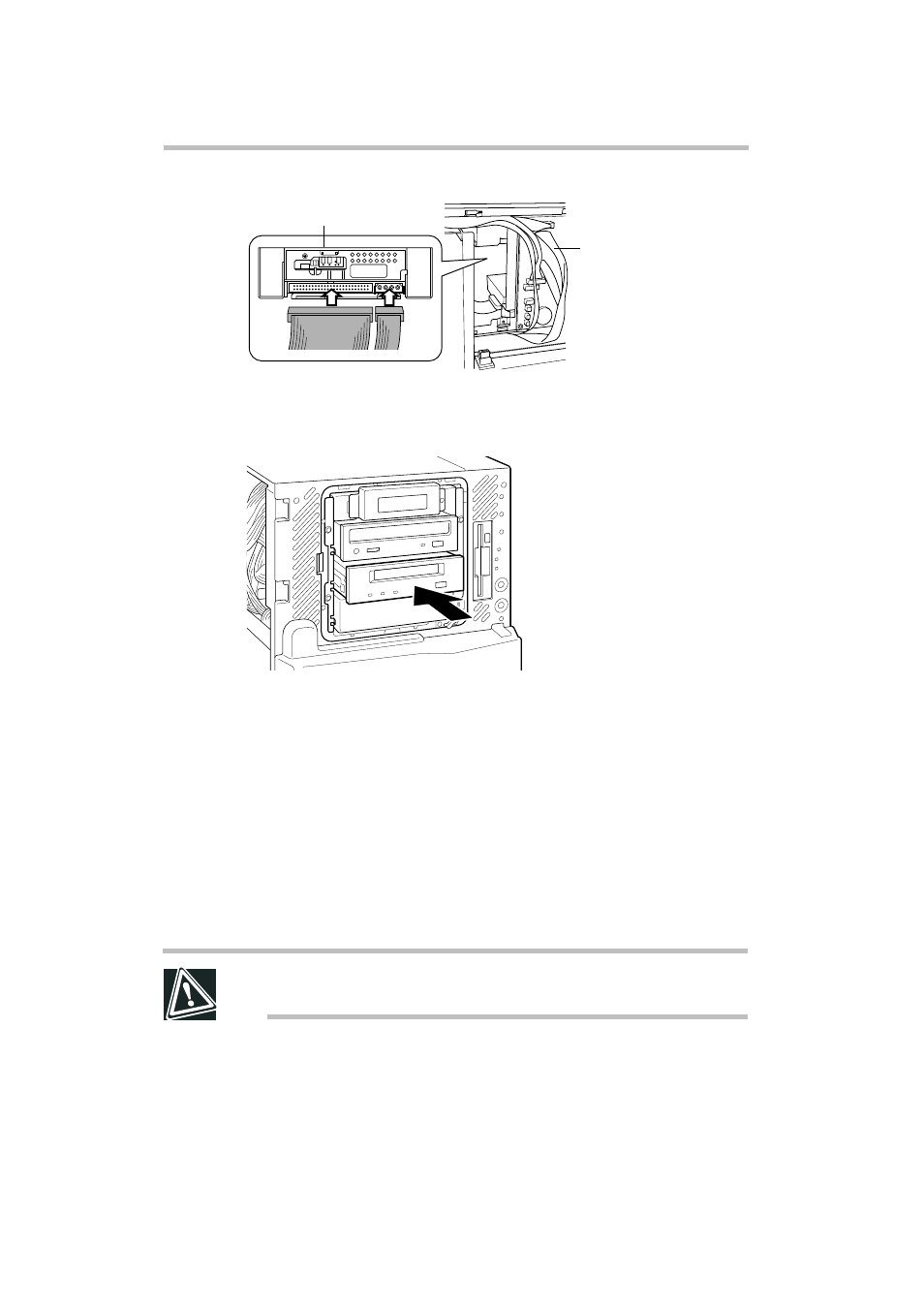

Connecting the SCSI device cables
9 Firmly push the device in until the latches click into place.
Inserting a SCSI device
10 Replace the device bay's rear cover and Fan module.
11 Replace the device bay bezel.
12 Replace the server covers.
13 Plug in the server’s power cable and switch on the server.
Removing an internal SCSI device
1 Set the AC switch on the back of the server to OFF and unplug the power
cable.
CAUTION: Removing an internal SCSI device while the power is on could
damage the device and/or the server.
2 Remove the server covers. See “Removing and replacing the server panels”
on page 19.
SMC board
Access area
