142

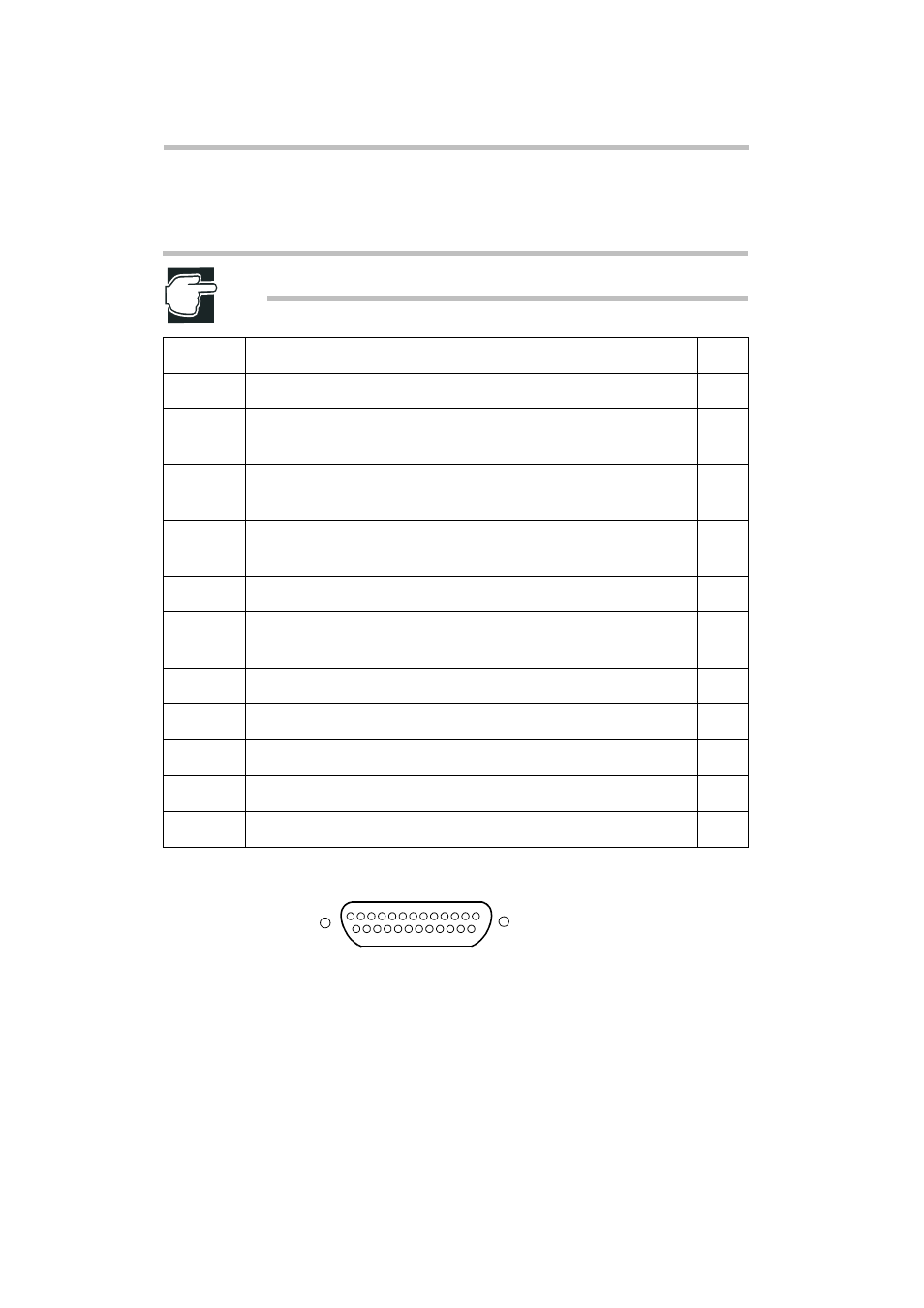

Printer interface
NOTE: I/O indicates an input or output as viewed from the server.
Pin No. Signal Meaning I/O
1 STROBE_L Sync output signal to write data of PD0- to PD7 O
2-9 RD0-PD7 Output signal to send information of data bit 0 to bit
7 O
10 ACK_L Request pulse from printer output immediately
after printer is released from busy state I
11 BUSY DC level signal indicating whether printer is ready
to receive data I
12 PE DC level signal to notify detection of paper runout I
13 SELECT DC level signal indicating printer selection and
directory state I
14 AUTFD_L Input/output signal O
15 ERROR_L DC level signal indicating printer error status I
16 PRINT_L Output signal to initialize printer controller O
17 SLIN_L Unused I/O
18-25 GND I Signal ground
1 13
25 14
