140

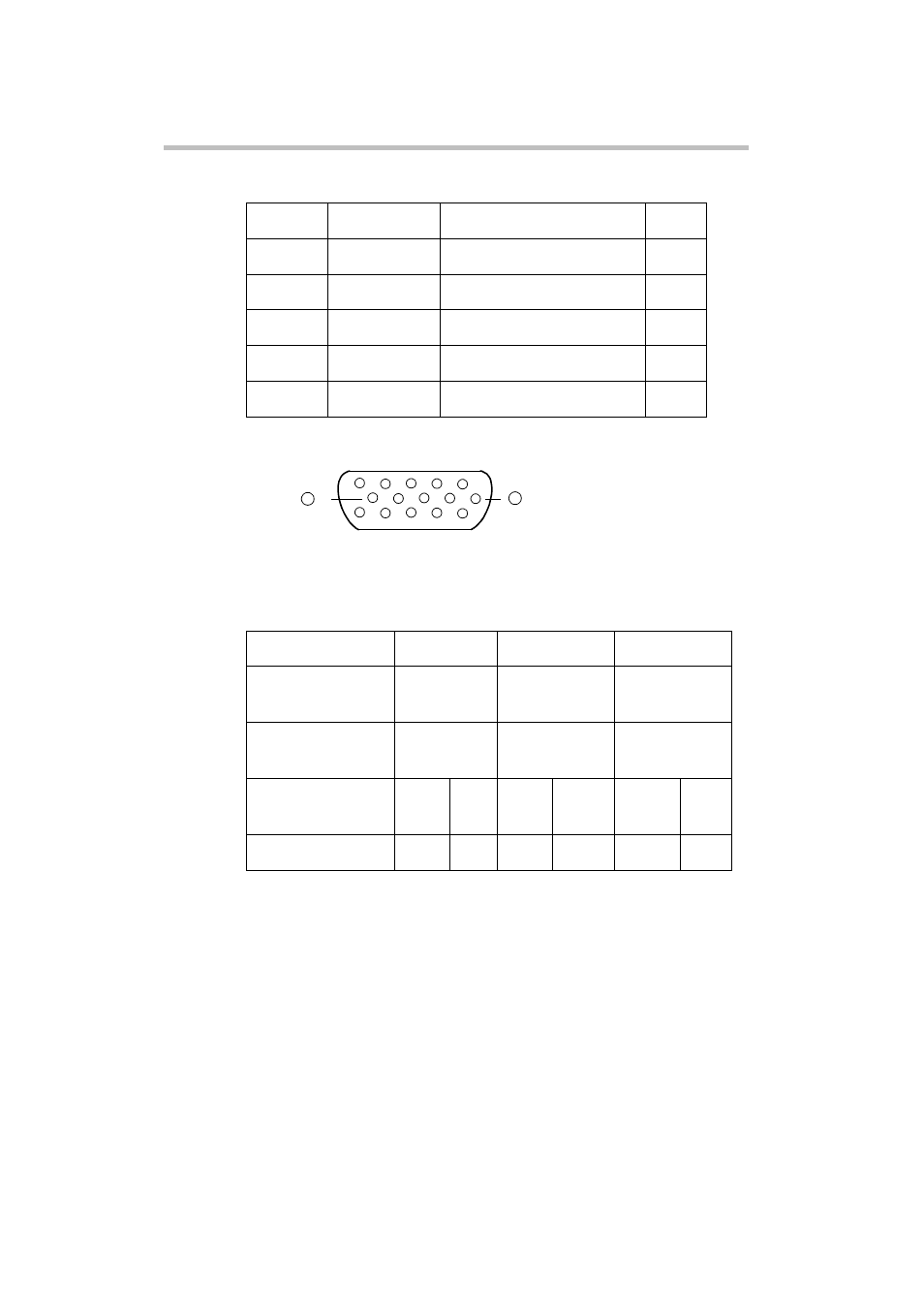

RGB interface synchronizing signals
Modes that can be displayed vary depending on the operating system and
display unit used.
11 Unused Unused
12 Unused Unused
13 CHSYNC Horizontal sync signal (TTL) O
14 CHSYNC Vertical sync signal (TTL) O
15 Unused Unused
Resolution 640 x 480 800 x 600 1024 x 768
Colors 256, 64K,
16M 256, 64K, 16M 256, 64K
Scan Non-
interlaced Non-interlaced Non-interlaced
Horizontal sync
(kHz) 31.5 37.5 46.9 53.7 60.0 68.3
Vertical sync (Hz) 60 75 75 85 75 85
Pin No. Signal Meaning I/O
5 1
15 11
10 6
