143

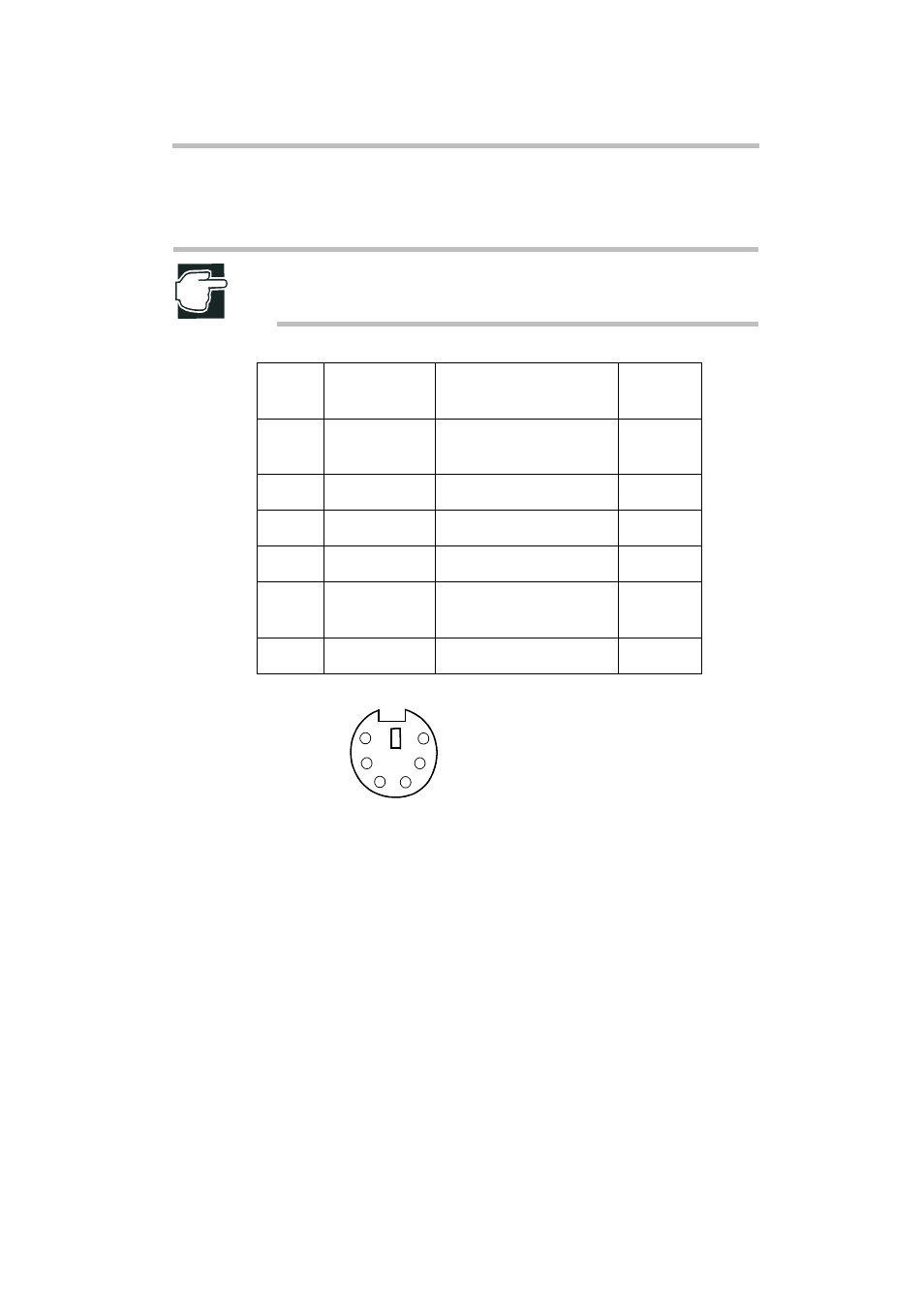

Keyboard/mouse interface
NOTE: I/O indicates an input or output as viewed from the server.
The keyboard and mouse interfaces are functionally equivalent.
Pin
No.
Signal Meaning I/O
1 DATA Data (keyboard or
mouse) I/O
2 Unused Unused
3 GND Signal ground
4 +5V +5V, fused
5 CLOCK Clock (keyboard or
mouse) I/O
6 Unused Unused
5
3
6
4
2 1
