Getting Started
Removing the front doors 18
Security loops
The security loops let you attach a locking device to the back of the server to
prevent theft and unauthorized removal of the power supplies. See “Rear
access” on page 22 for more information.
I/O ports
Connect the various server components to the appropriate I/O port. See
“Connecting peripherals” on page 26.
AC power cable receptacle and AC power button
The AC power cable plugs into the power receptacle, and the AC power button
enables AC power to the power supply modules.
Expansion slot covers
The Magnia7010 has seven expansion slots available for additional expansion
cards. There are six PCI slots and one shared PCI/ISA slot.
Power supply slots
These slots provide locations to install optional power supplies for redundancy
and load sharing.
Removing the front doors
1 Open the door.
2 Lift up on the door to disengage the hinge pins.

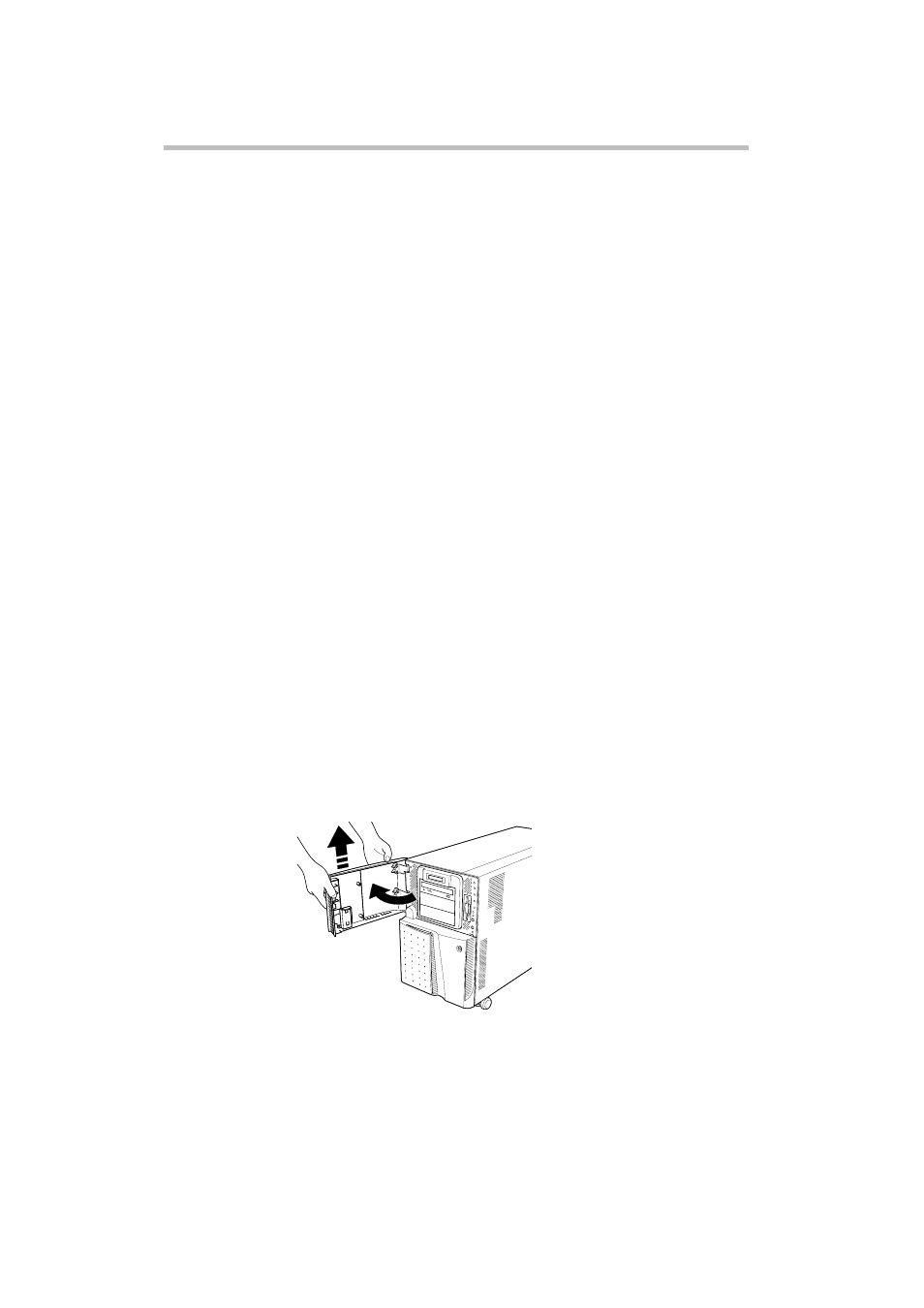

Removing the upper door
3 Pull the door away from the cabinet.
Remove bottom door the same way. (Unlock it first, if necessary.)
