Installing Hardware
Adding internal SCSI devices
53
3 Remove the device bay bezel. For more information, see “Removing a
device bay spacer” on page 49.
4 Put your fingers into the slots on either side of the module and press to
release the latches.
5 Partially pull the device out.
6 Remove the FAN module. See “Fan module installation/removal” on
page 37.
7 Remove the device bay's rear cover. See “Installing a SCSI device” on
page 50.
8 Then disconnect the power cable and signal cable.

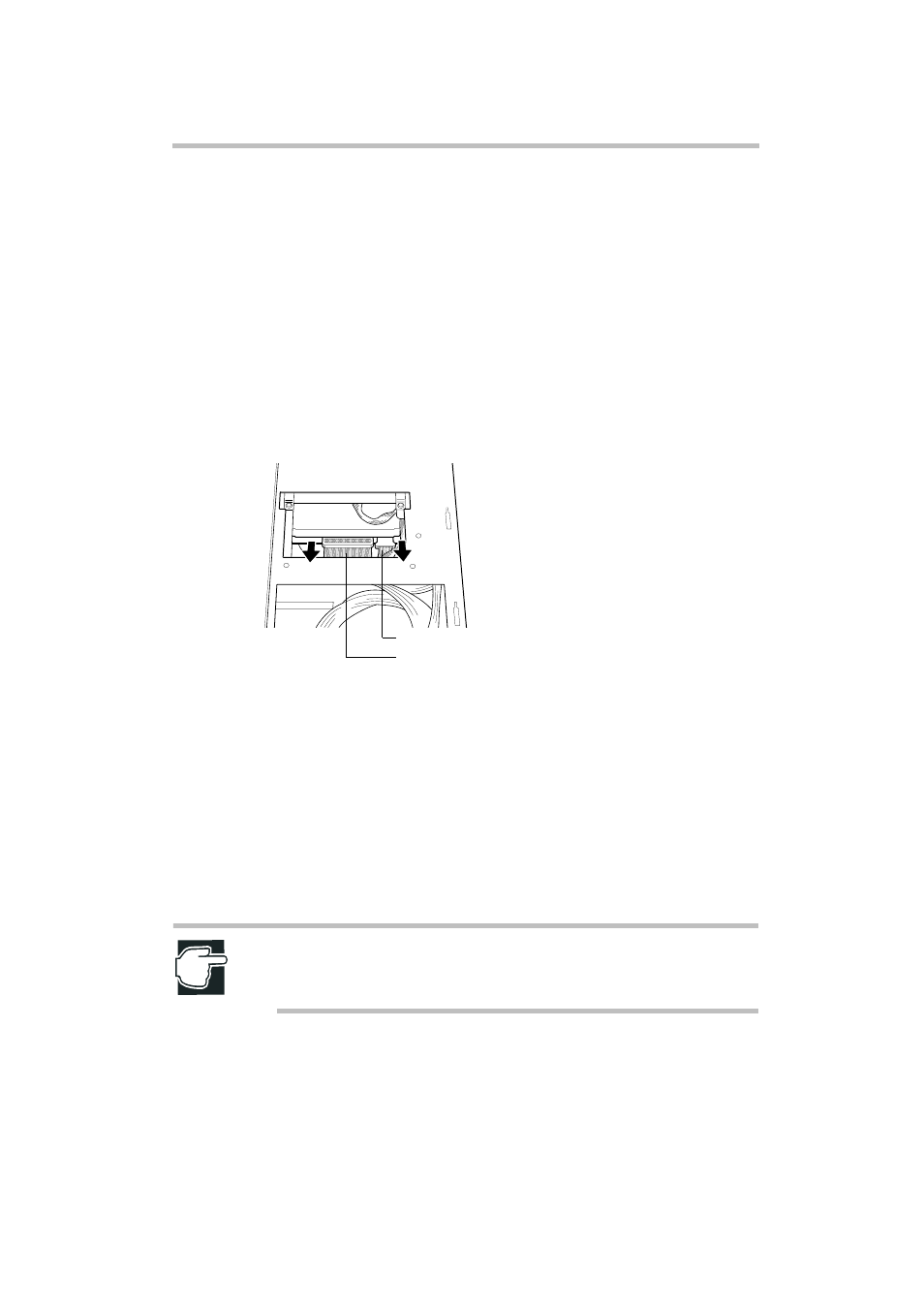

Removing a SCSI device cable (Top view)
9 Pull the SCSI device out completely.
10 Replace the device bay’s rear cover and Fan module.
11 Replace the device bay bezel.
12 Replace the server covers.
13 Plug in the power cable and switch on the server.
For the configuration setup procedures, see “Built-in SCSI utility” on
page 110.
NOTE: Use only SCSI devices that Toshiba recommends. Other devices
may not be installable due to differences in dimensions and shape. Toshiba
assumes no responsibility for devices not specifically recommended.
Power cable
Signal cable
