Installing Hardware
Fan module installation/removal 38

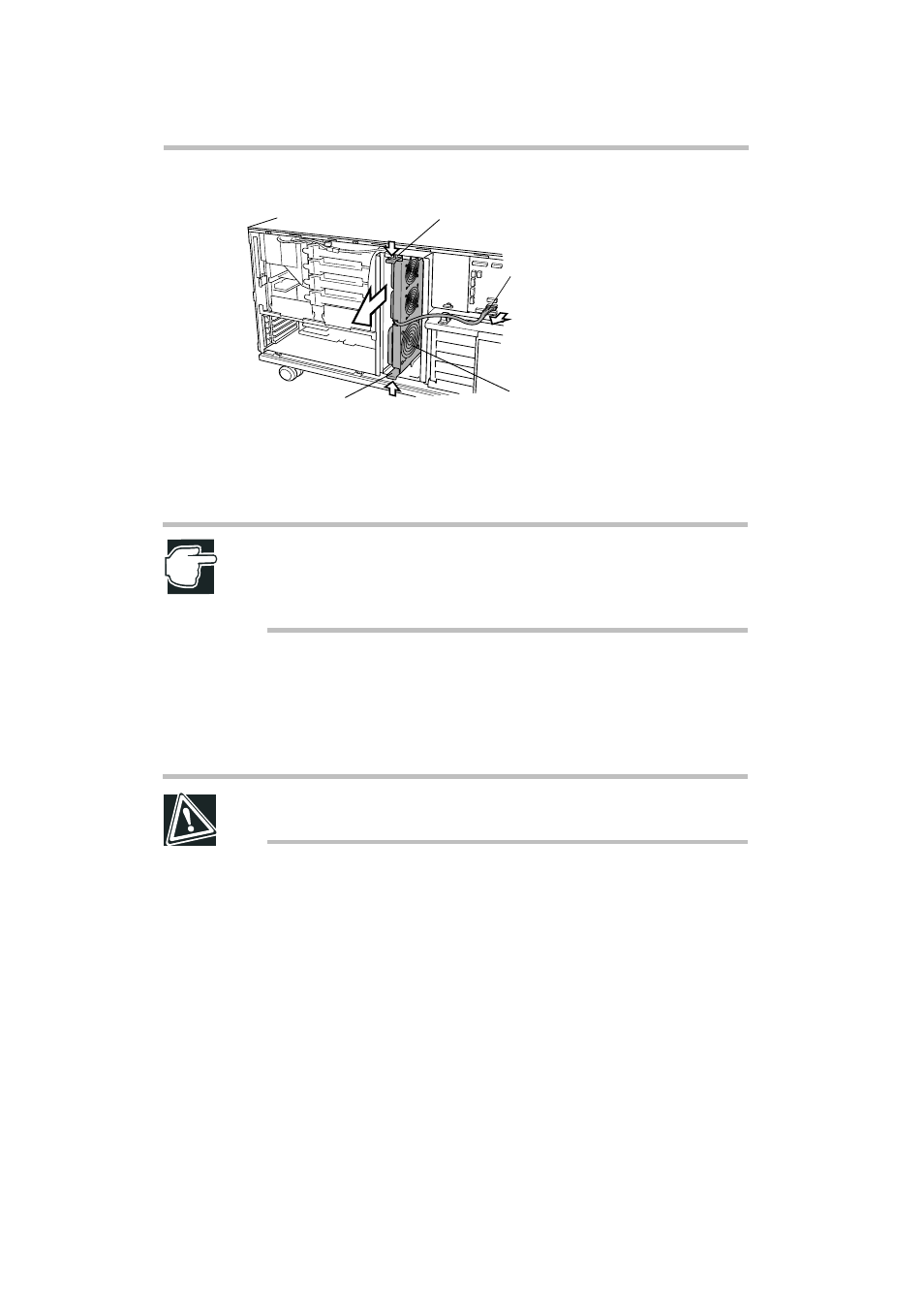

Fan module and chassis
4 Press the two latches on the upper and lower corners of the unit and pull out
the module.
NOTE: If removing fan modules, you should use the Sensor Data and LCD
Setup tool to update the information in the server’s internal files about this
device. Refer to “Using the Sensor Data and LCD Setup tool” on page 106
for additional details.
Installing the fan module
1 If the server is in use, shut it down, set the AC switch on the back of the
server to OFF and unplug the power cable.
CAUTION: Installing a fan module while the power is on could damage the
module and/or the server.
2 Remove the server panels.
See “Removing and replacing the server panels” on page 19.
3 Insert the fan module and push it in until the spring lock is secured.
4 Connect the fan cables.
The standard fan module connects to PJ25.
The Redundant fan module connects to PJ27.
5 Replace the server panels.
Spring lock
Spring lock
Main fan cable
Fan unit
