Installing Hardware

Adding a CPU

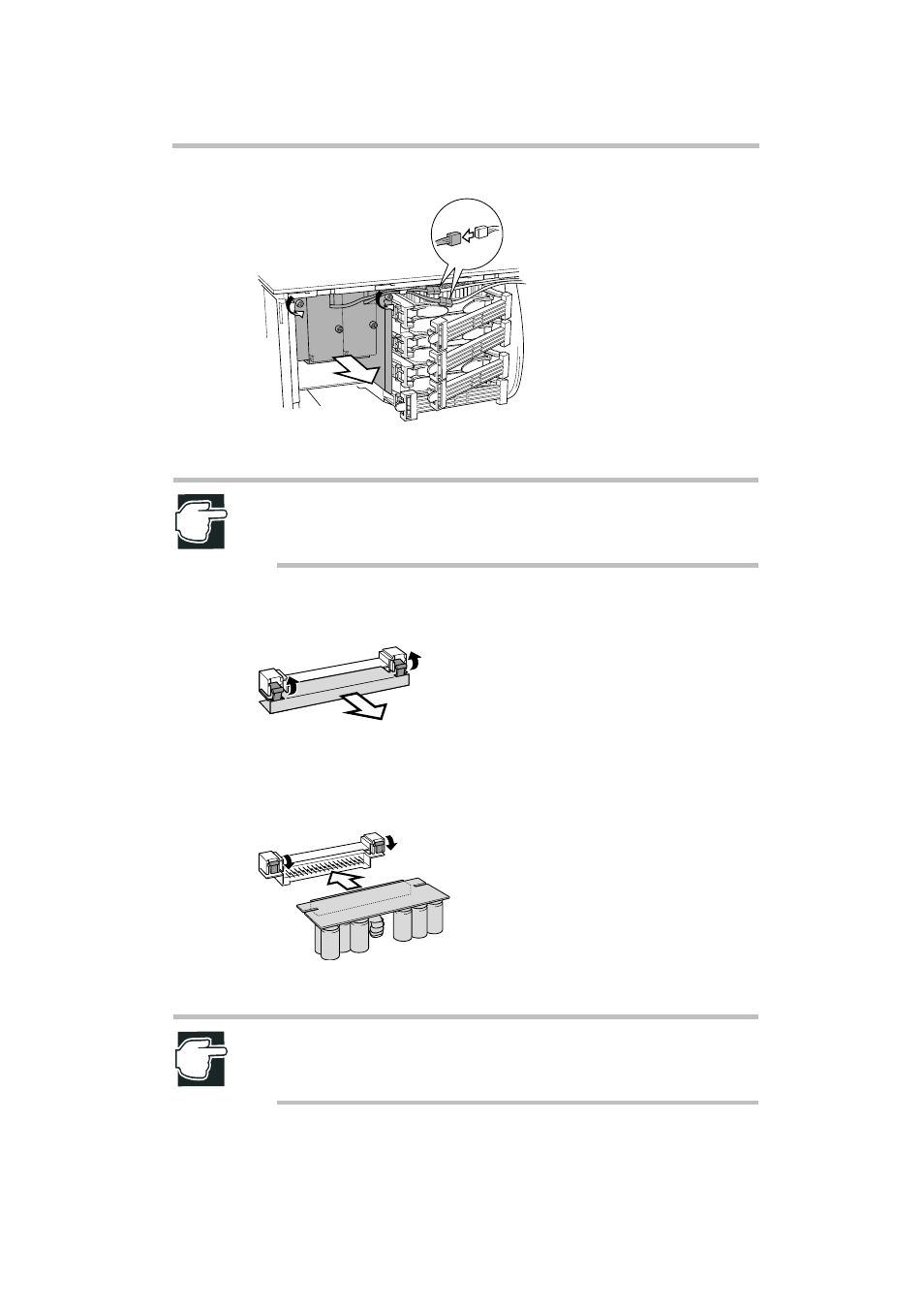

Pulling out the CPU fan unit

NOTE: The first CPU module is installed in the higher slot. CPU add-in
modules should be installed from the next bottom vacant slot. VRMs should
also be installed from the up bottom.

6 Voltage Regulator Module (VRM) slots are located behind the CPU fan

unit. Remove the VRM dummy cover from its slot.

Removing the VRM dummy cover

7 Insert the VRM and close the latches so that they fit into slots on either side

of the power supply.

VRM installation

NOTE: When installing VRMs, follow the table below for the number of
VRMs needed vs. the number of CPUs installed. CPU slots must have a
terminator if the CPU is not installed.
