Chapter 4: Setting Port Parameters
64
Port Numbers on the Switch

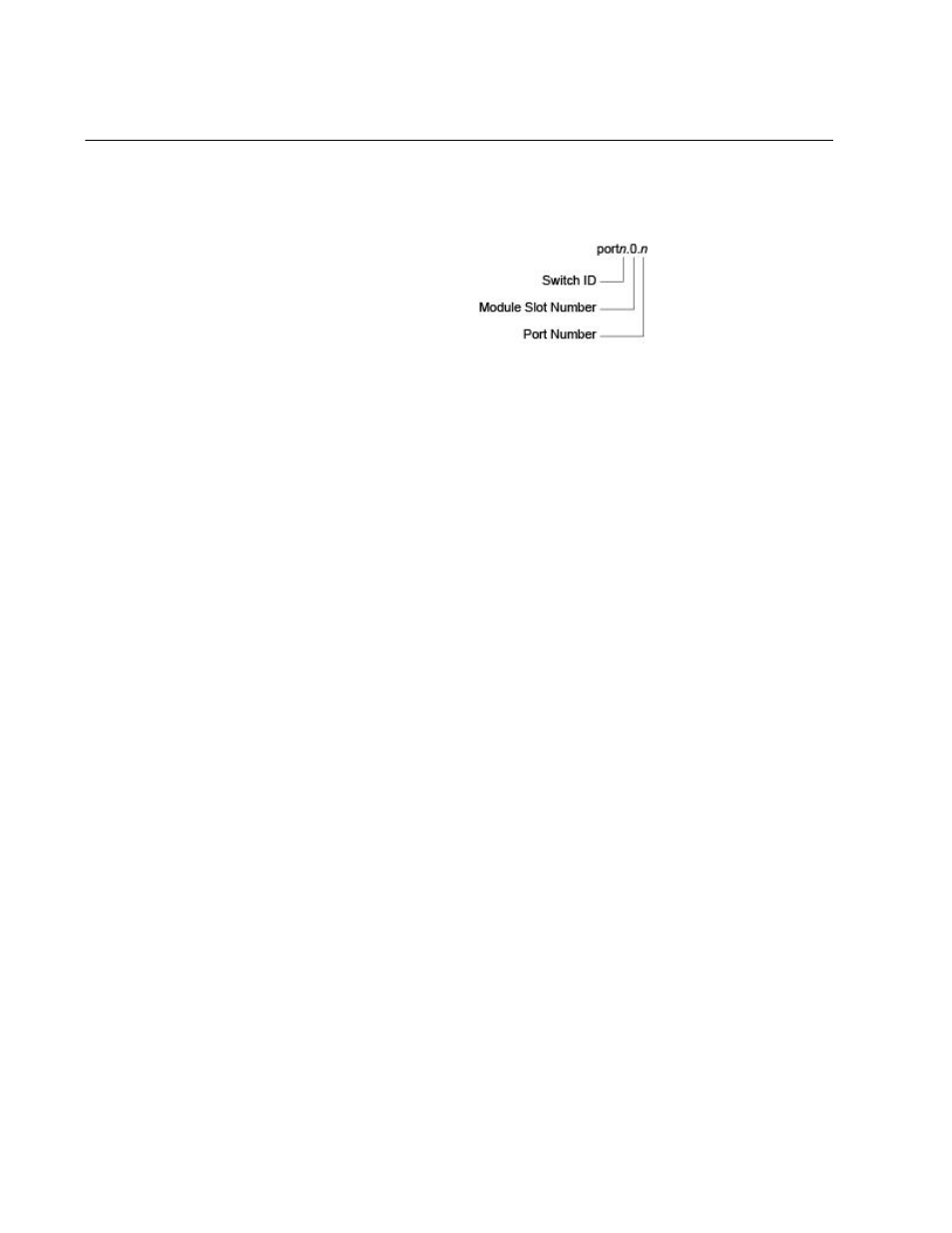

The ports on the switch are identified in the format shown in Figure 23.
Figure 23. Port Number
Switch ID: This number is used if the switch supports stacking. It is the
switch’s ID number in a stack. This number should always be 1 for
AT-FS970M Series switches because they do not support stacking.
Module Slot ID: This number is used to identify a slot in a modular
switch. This number is always 0 for AT-FS970M Series switches
because they are not modular switches.
Port number: This is the port number.
