AT-FS970M Series Version 2.3.1.0 Web Interface User’s Guide

145

Displaying and Modifying Spanning Tree Protocol Settings on the
Switch

To display and modify Spanning Tree Protocol settings on the switch, do
the following:

1. Hover the cursor over the Switching tab.

The Switching tab is displayed. See Figure 24 on page 65.

2. From the Switching tab drop-down menu, select Spanning Tree.

The Spanning Tree Settings page is displayed. See Figure 55.

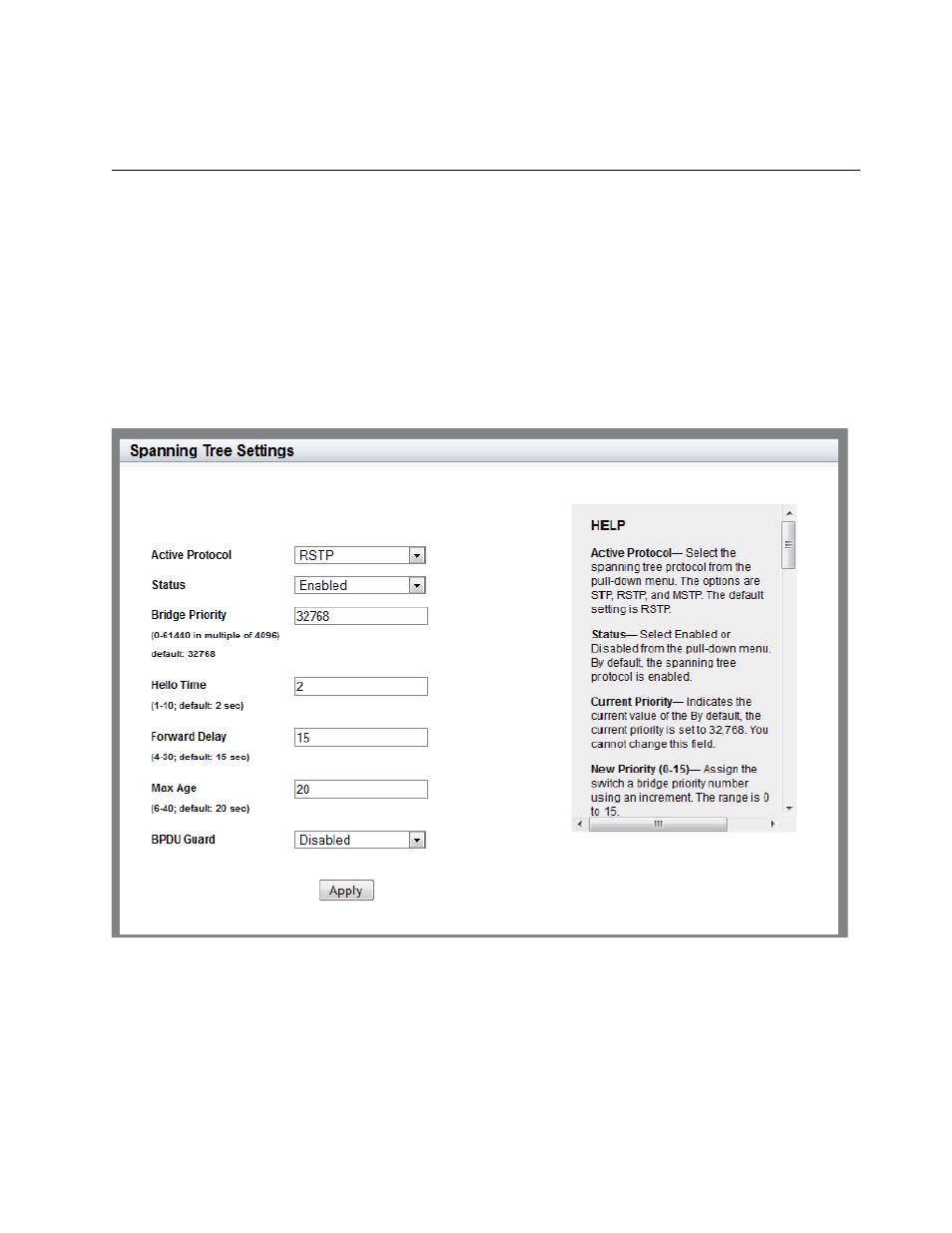

Figure 55. Spanning Tree Settings Page

The following fields are displayed. Change the settings as needed:

Active Protocol— Select the spanning tree protocol from the pull-
down menu. The options are STP and RSTP. The default setting is
RSTP.
