AT-FS970M Series Version 2.3.1.0 Web Interface User’s Guide

257

Actions— Click a radio button to select an action from the
following options:

Priority Queue: Instructs ports to place all ingress packets that
match the filtering criteria into a specified priority queue.

When you select Priority Queue, a text box appears below the
action icons as shown in Figure 106. Enter a priority queue
number. Choose from 0 to 7.

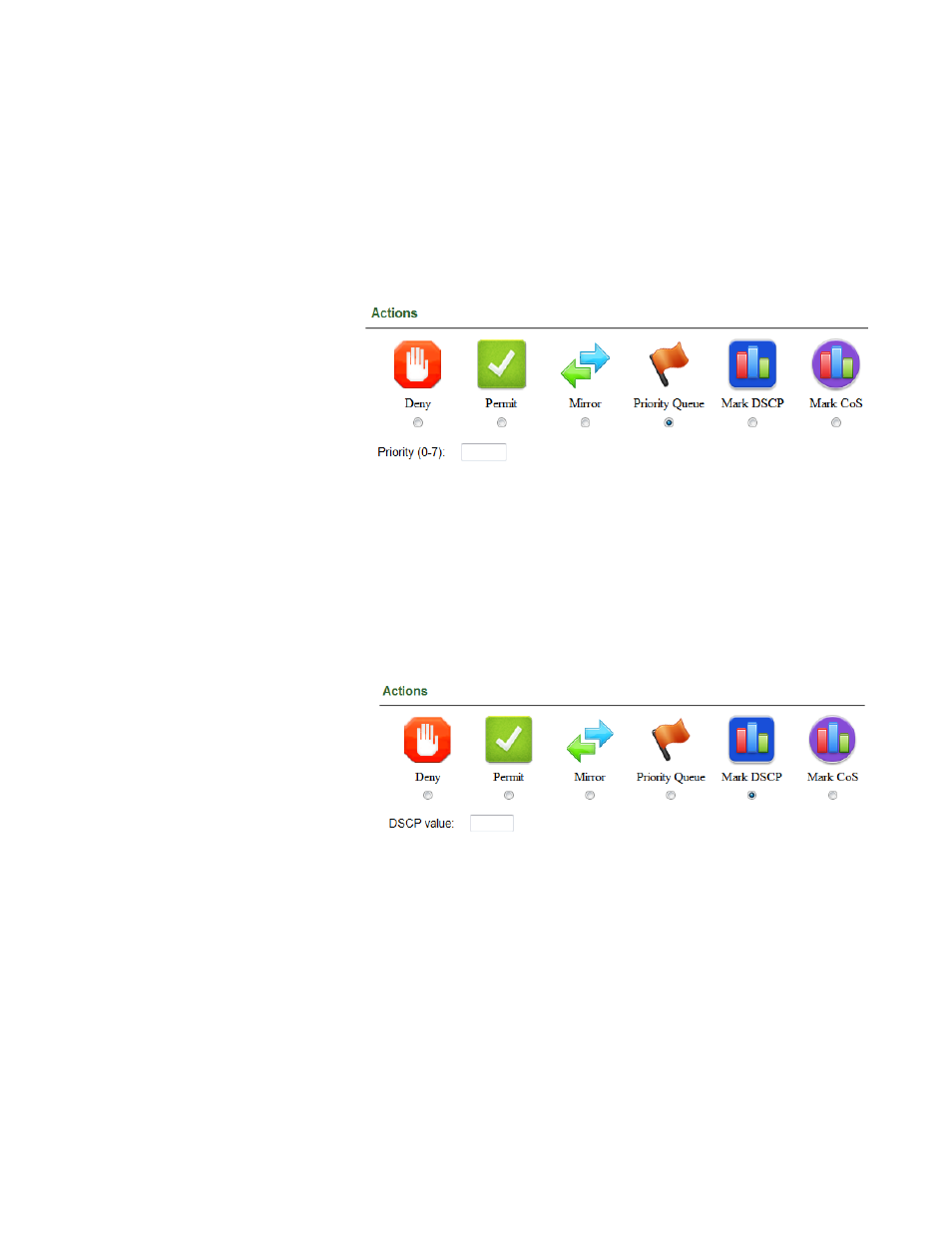

Figure 106. Text Box for Priority Queue

Mark DSCP: Instructs ports to set the DSCP value in all
ingress packets that match the filtering criteria with a specified
DSCP value.

When you select Mark DSCP, a text box appears below the
action icons as shown in Figure 107. Enter a DSCP value.
Choose from 0 to 63.

Figure 107. Text Box for DSCP

Mark CoS: Instructs ports to set the CoS value in all ingress
packets that match the filtering criteria with a specified CoS
value.

When you select Mark CoS, a text box appears below the
action icons shown in Figure 108 on page 258. Enter a CoS
value. Choose from 0 to 7.
