Chapter 20: Access Control Lists (ACL)

236

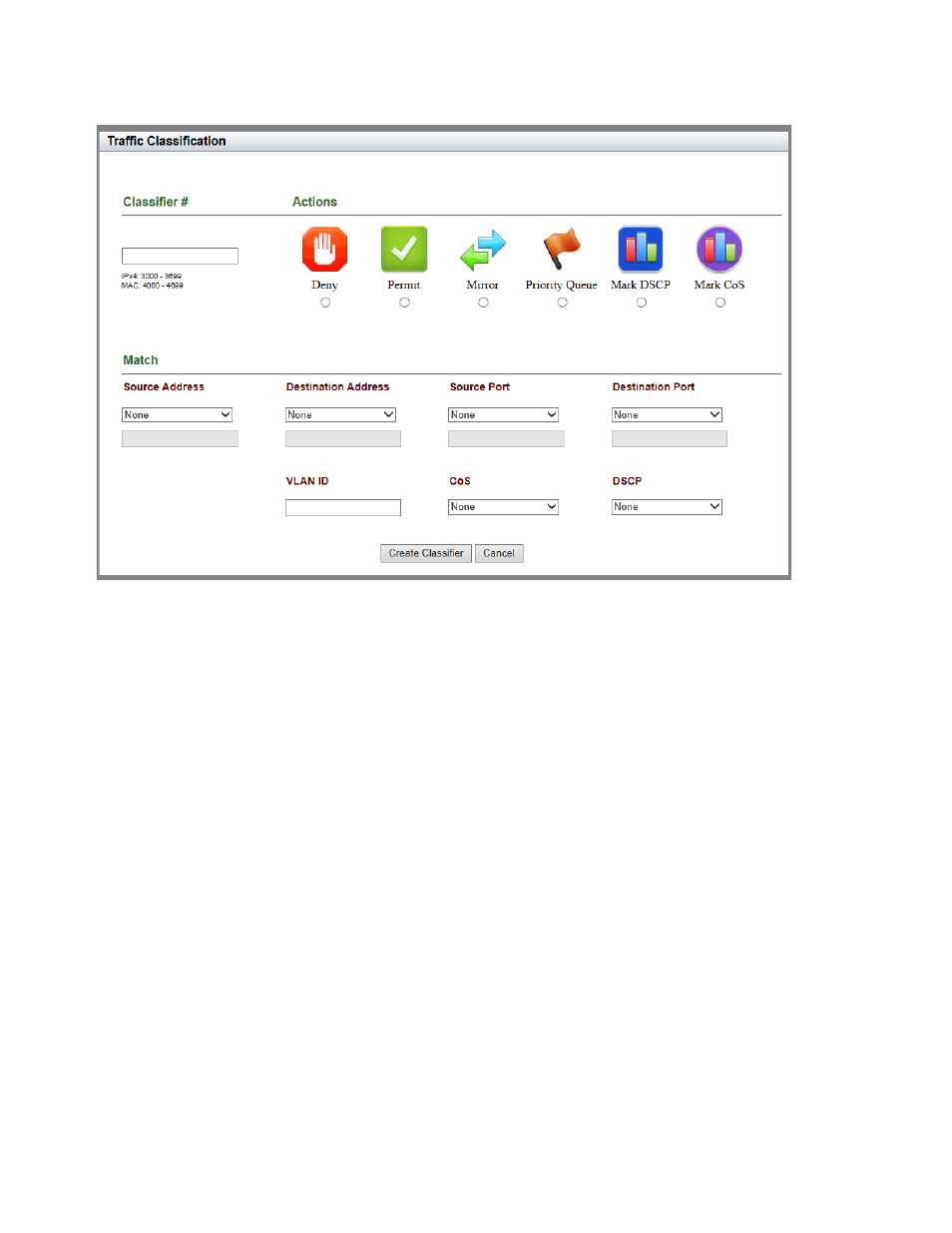

Figure 93. Traffic Classification Page

4. Enter and select the following fields as needed:

Classifier #— Enter a classifier number to identify an ACL.
Choose a number from the following ranges:

IPv4 ACL: 3000 to 3699

MAC ACL: 4000 to 4699

Actions— Click a radio button to select an action from the
following options:

Deny: Instructs ports to discard the ingress packets that match
the specified filtering criteria.

Permit: Instructs ports to forward ingress packets that match
the specified filtering criteria. By default, all ingress packets are
forwarded by the ports.

Mirror: Instructs ports to copy all ingress packets that match
the filtering criteria to the mirror port.

When you select Mirror, a pull-down menu appears below the
action icons. Select a port number (for example, port1.0.1)
