Assigning a Multicast MAC Address

To assign a multicast MAC address to the MAC address table, do the
following:

1. Hover the cursor over the Switching tab.

The Switching tab is displayed. See Figure 24 on page 65.

2. Hover over Mac Table and then move the cursor to the right to select

Multicast.

The Multicast MACs page is displayed. See Figure 40 on page 104.

3. Click Add.

The Multicast MAC Address page is displayed. See Figure 42.

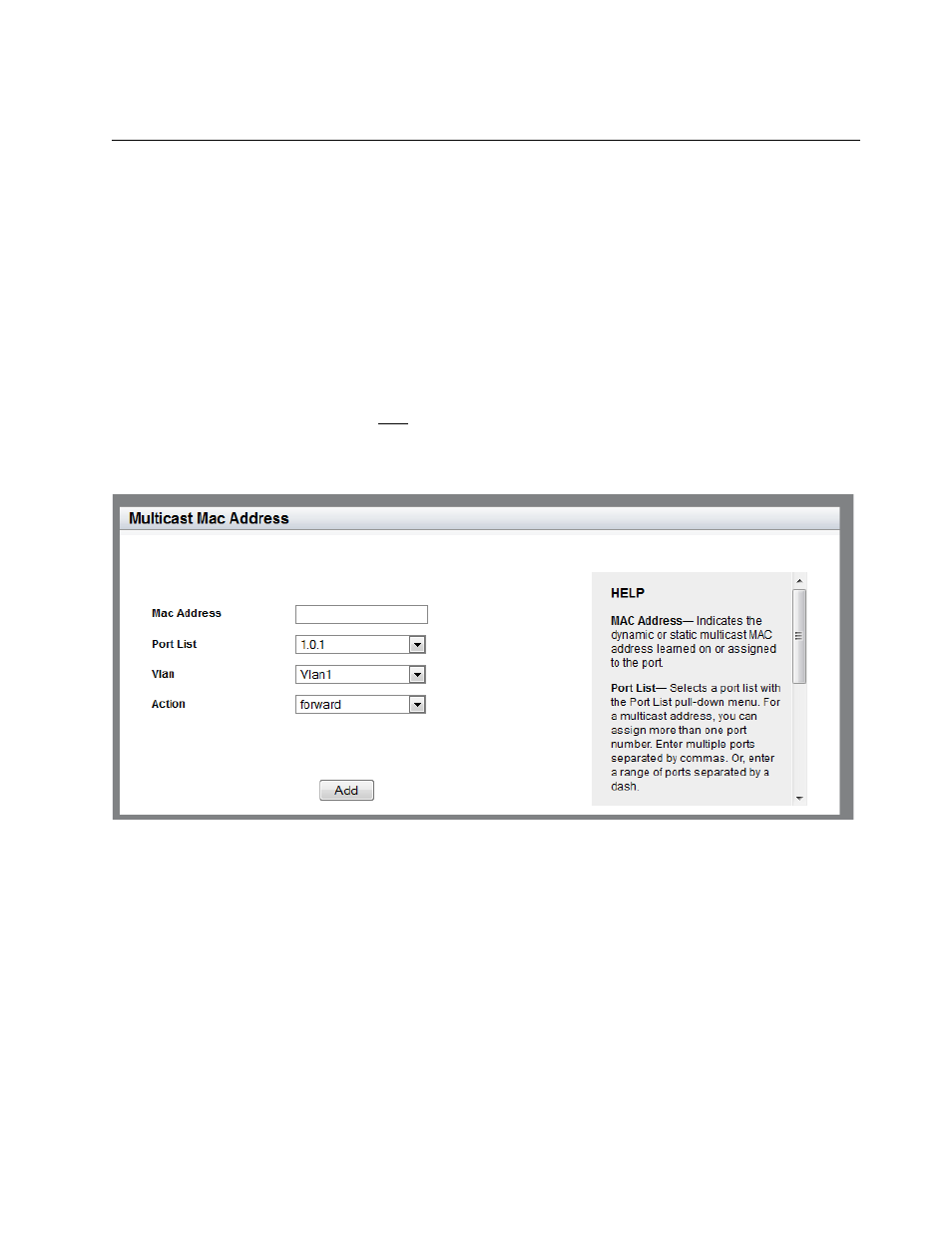

Figure 42. Multicast MAC Address Page

4. To add a new multicast MAC address, do the following:

MAC Address— Enter a multicast MAC address. Use the
following format:

xx:xx:xx:xx:xx:xx or xxxx.xxxx.xxxx

Port Number— Select the port number to which the end node of
the MAC address is connected.

Vlan— Select a VLAN where the port is a member.

Action— Select one of the following options:
