Chapter 3: Basic Switch Parameters

50

Managing the Configuration File

Within the web browser interface, you can upload a configuration file onto
the switch, download a configuration file from the switch, delete a
configuration file, and save your changes to the current configuration file.
However, to create a new configuration file, you need to access the switch
through the CLI.

See the following procedures:

“Displaying the Configuration Files” on page 50

“Setting the Active Configuration File” on page 51

“Downloading a Configuration File onto Your PC” on page 51

Displaying the

Configuration

Files

To display a list of the configuration files on the switch, do the following:

1. From the Dashboard page, hover the cursor over the System tab.

2. From the System tab drop-down menu, select Configuration Files

from the pull-down menu.

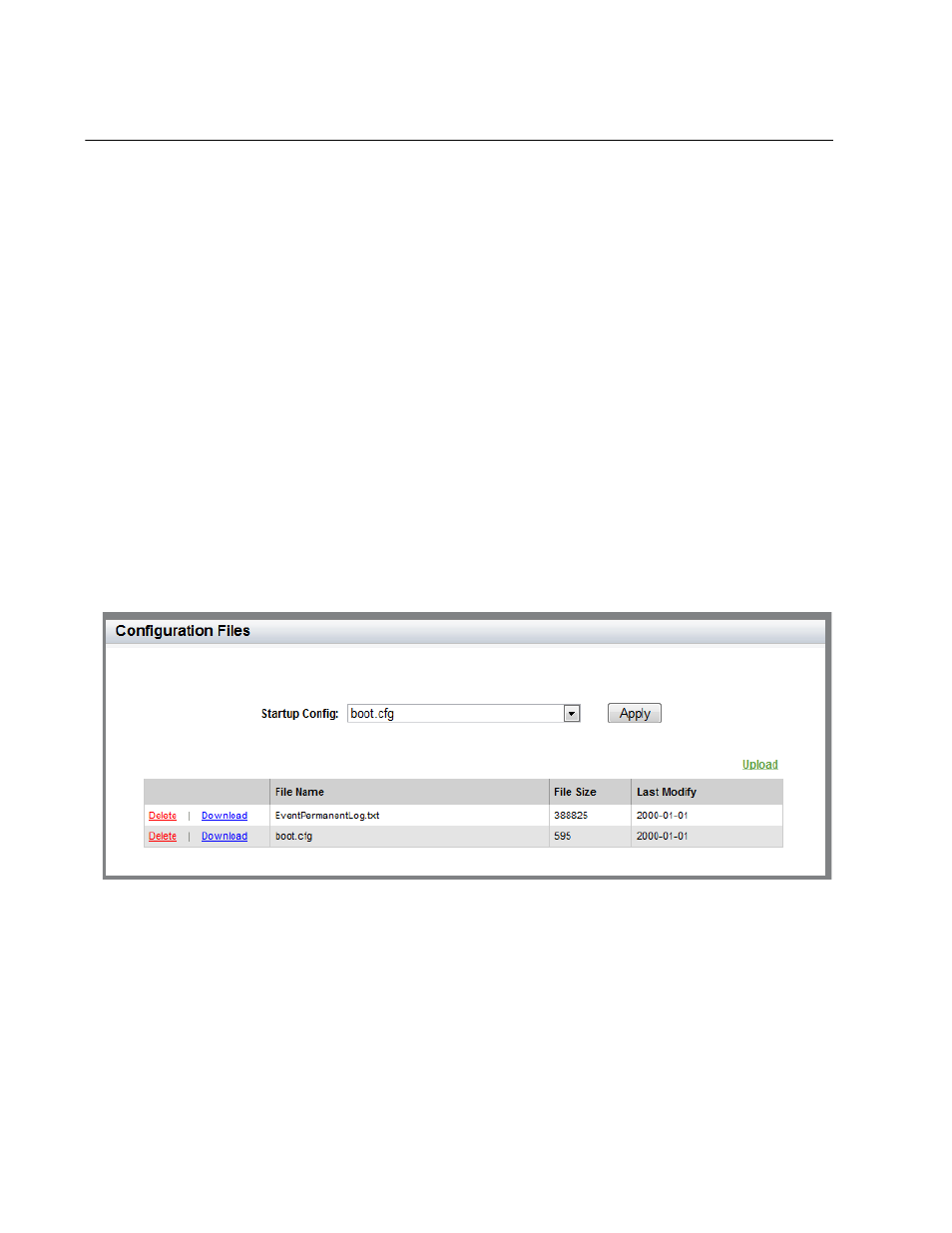

For an example of the Configuration Files page, see Figure 15.

Figure 15. Configuration Files Page

The following fields are displayed:

Startup Config— Name of the active boot configuration file, which
for the switch of the example is “boot.cfg.”

File Name— Name of the file.

File Size— File size in bytes.
