Chapter 11: Setting Port-based and Tagged VLANs
134
Displaying VLANs
To display the VLAN assignments for all of the switch ports, do the
following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 24 on page 65.
2. From the Switching tab drop-down menu, select VLANs.
The VLANs page is displayed. For an example of the VLANs page,
see Figure 51.

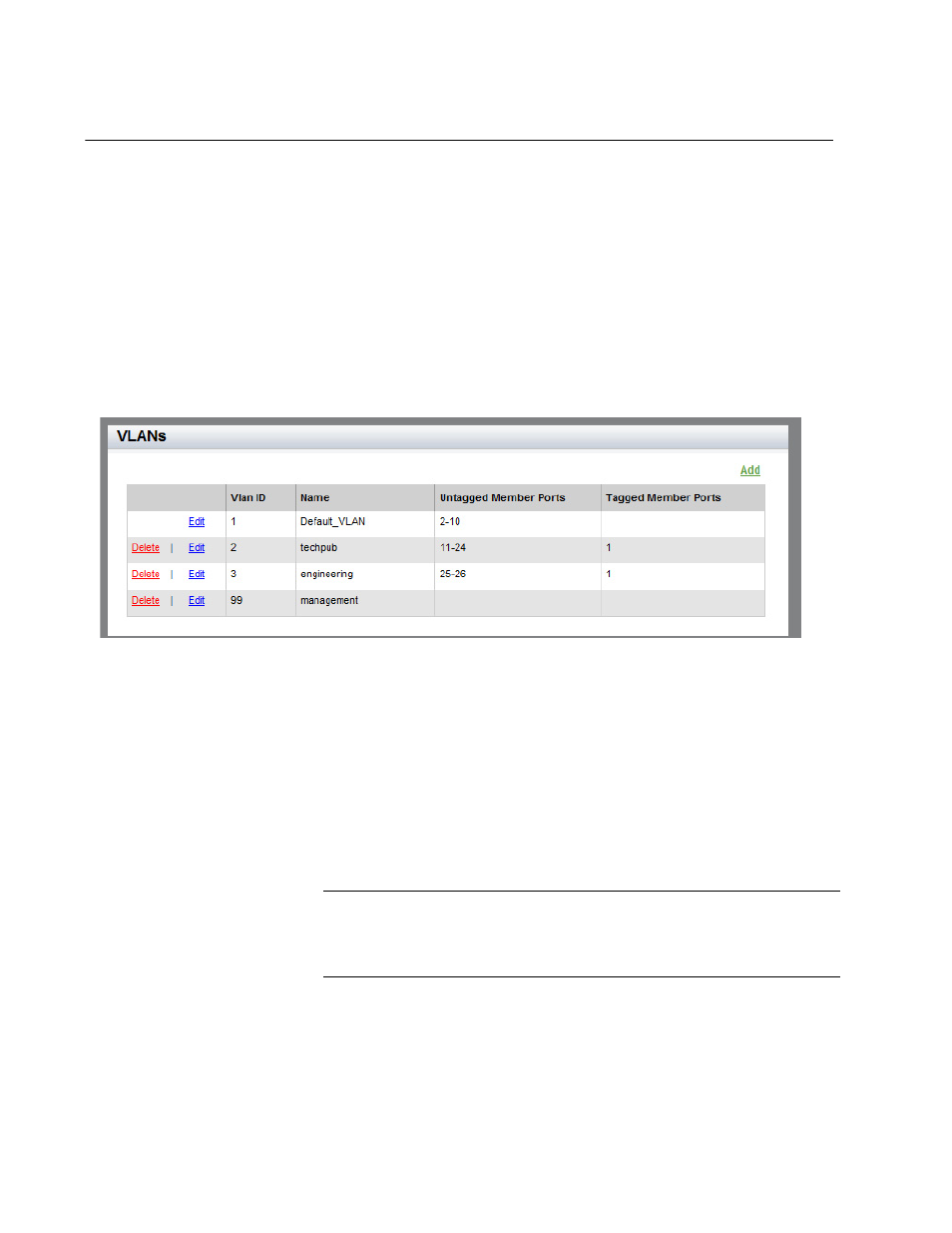

Figure 51. VLANs Page
The following fields are displayed:
 Vlan ID— VLAN identifier. The range is 1 to 4094. The VID of 1 is
the default VLAN.
 Name— VLAN name.
 Untagged Member Ports— Untagged ports that belong to the
VLAN.
 Tagged Member Ports— Tagged ports that belong to the VLAN.
Note
By default, there is one VLAN configured. This is the default VLAN,
with a VLAN ID of 1. All ports on the switch are assigned to the
default VLAN. All ports in VLAN ID 1 are untagged by default.
