Chapter 25: LLDP and LLDP-MED
298
 Additional Code— 1234
 Seat— cube-411a
 Primary Road Name— Zanker
 Road Section— North
 Branch Road Name— State-Lane
 Sub Branch Road Name— Boulder-Creek-Avenue
 Street Name Pre Modifier— West
 Street Name Post Modifier— Div
8. Click Apply.
9. Click SAVE to save your changes to the startup configuration file.
Creating a
Coordinate
Location
To create an LLDP Coordinate Location, do the following:
1. Hover the cursor over the Discovery & Monitoring tab.
The Discovery & Monitoring tab is displayed. See Figure 122 on
page 284.
2. From the Discovery & Monitoring tab, hover over LLDP.
The LLDP tab appears on the right.
3. From the LLDP tab, move the cursor to the right and hover over
Locations.
The Locations tab is displayed. See Figure 129 on page 295.
4. From the Locations tab drop-down menu, move the cursor to the right
and select Coordinates.
The LLDP Coordinate Location List page is displayed. See Figure 132.

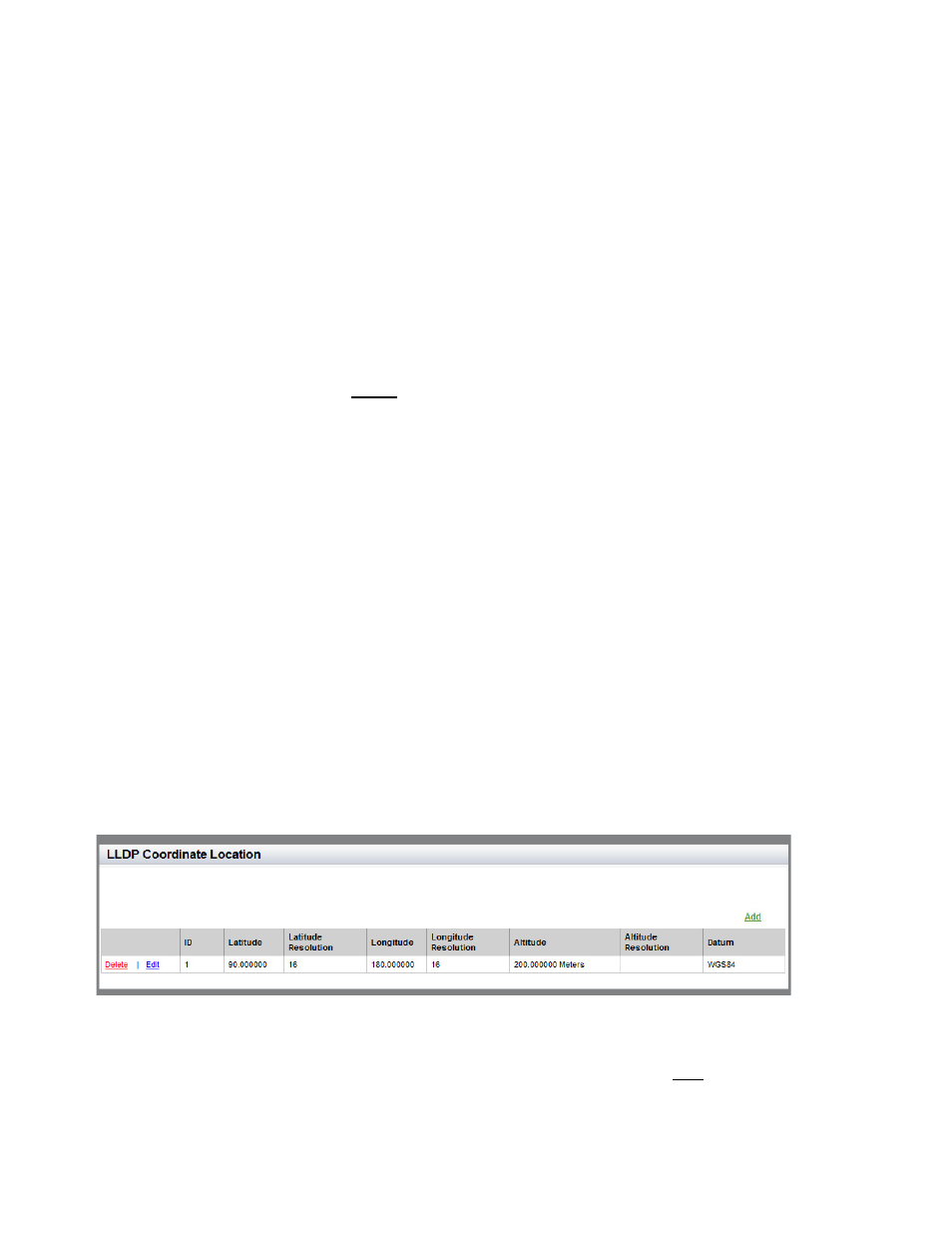

Figure 132. LLDP Coordinate Location List Page
5. From the LLDP Coordinate Location page, click Add.
