Displaying the RIP Configuration

To check how the RIP is configured on the switch, do the following:

1. Hover the cursor over the Layer 3 tab.

The Layer 3 tab is displayed. See Figure 112.

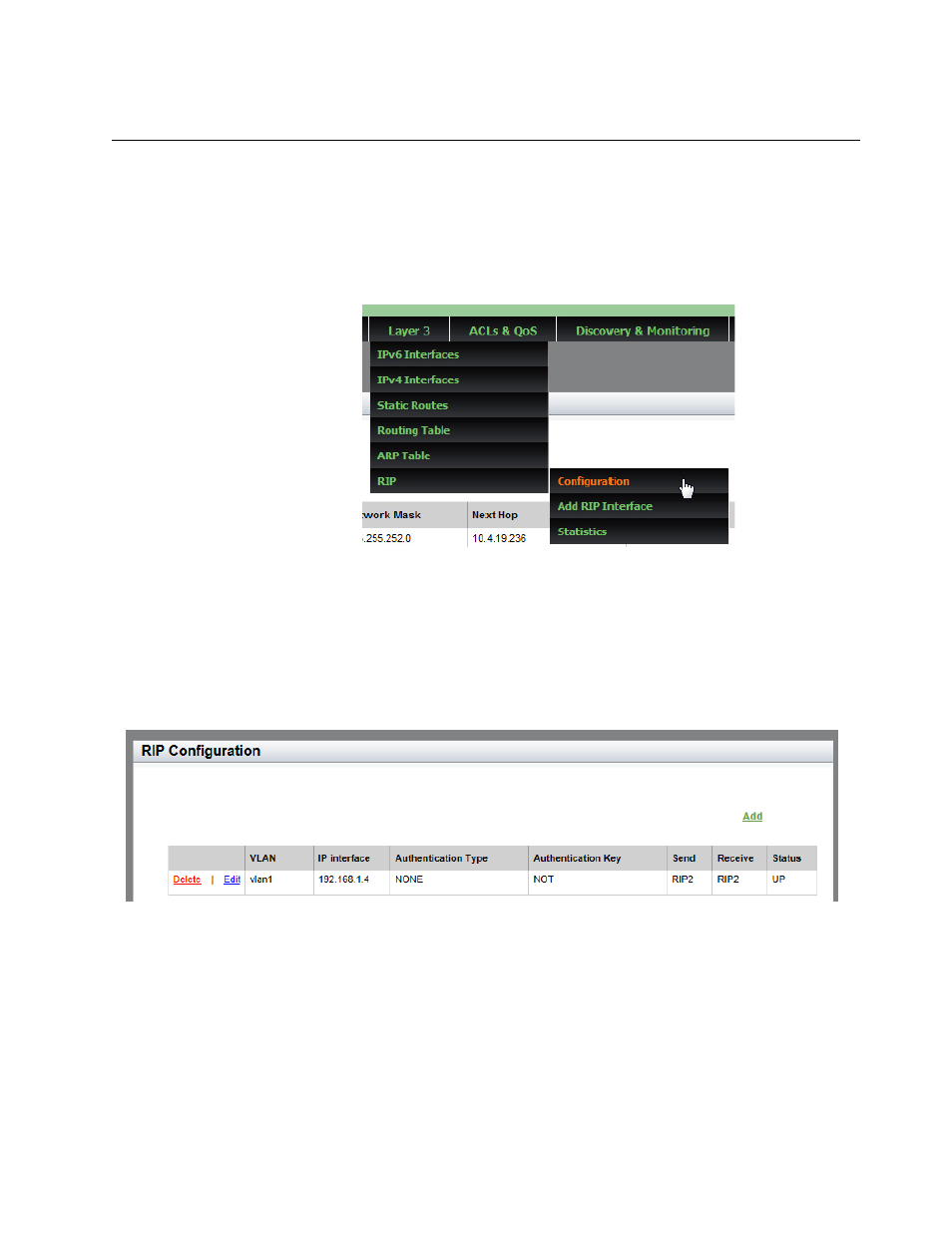

Figure 112. Layer 3 Tab

2. From the Layer 3 tab drop-down menu, hover the cursor over RIP,

move the cursor to the right, and select Configuration from the RIP
drop-down menu.

The RIP configuration page is displayed. See Figure 113.

Figure 113. RIP Configuration Page

The following fields are displayed:

VLAN— ID number of the VLAN. This VLAN interface receives and
sends RIP packets, and the network that the VLAN belongs to is
advertised through RIP.

IP Interface— IP address that the VLAN interface is assigned to.
