Chapter 25: LLDP and LLDP-MED
292

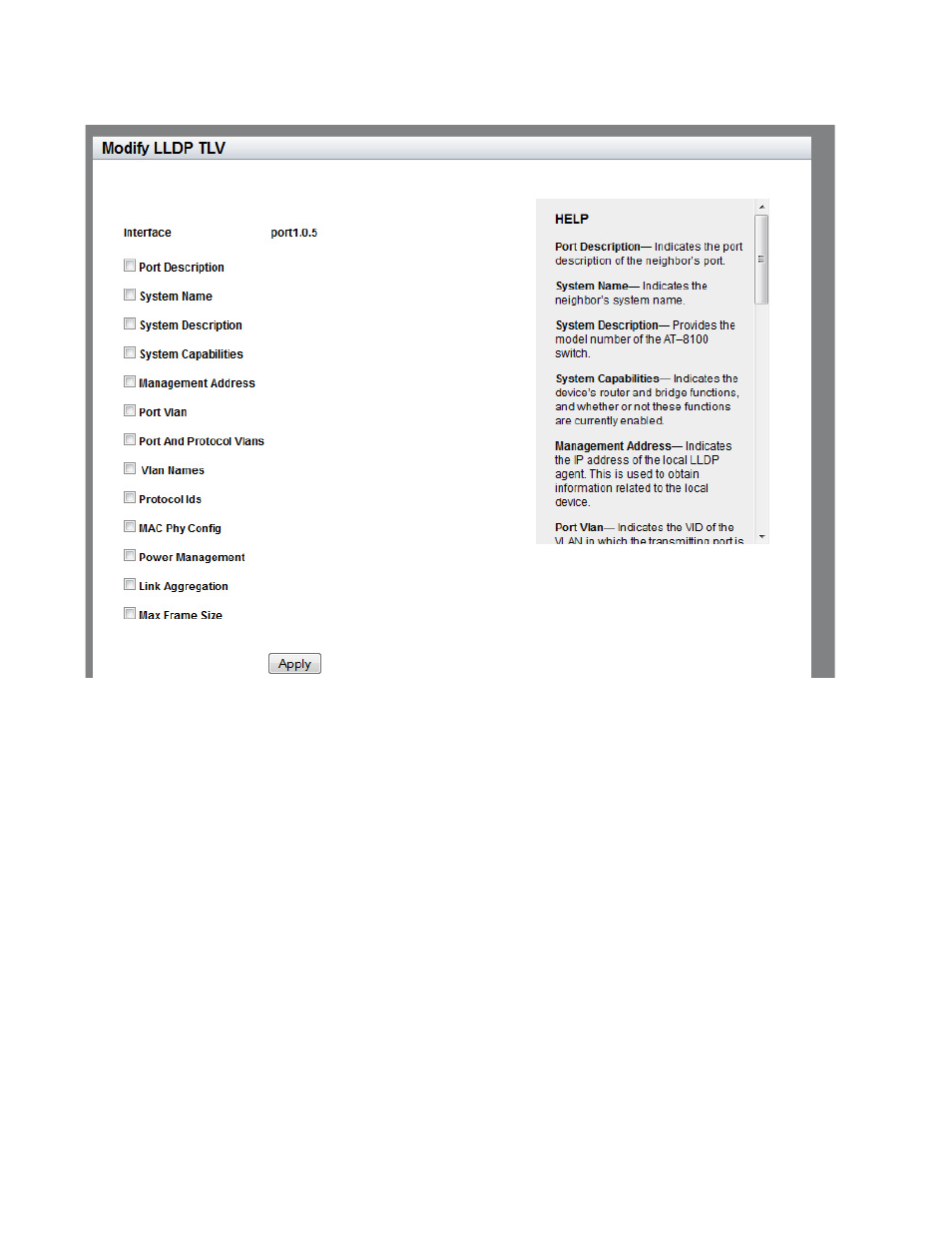

Figure 128. Modify LLDP TLV Page
6. Change the settings as needed:
 Interface— Indicates the port ID.
 Port Description— Check the checkbox to select the port
description to be included in LLDPDUs.
 System Name— Check the checkbox to select the system name
to be included in LLDPDUs.
 System Description— Check the checkbox to select the model
number of the AT-FS970M switch to be included in LLDPDUs.
 System Capabilities— Check the checkbox to include the
device’s capabilities, such as router or bridge, and whether or not
these functions are currently enabled in LLDPDUs.
