AT-FS970M Series Version 2.3.1.0 Web Interface User’s Guide
173

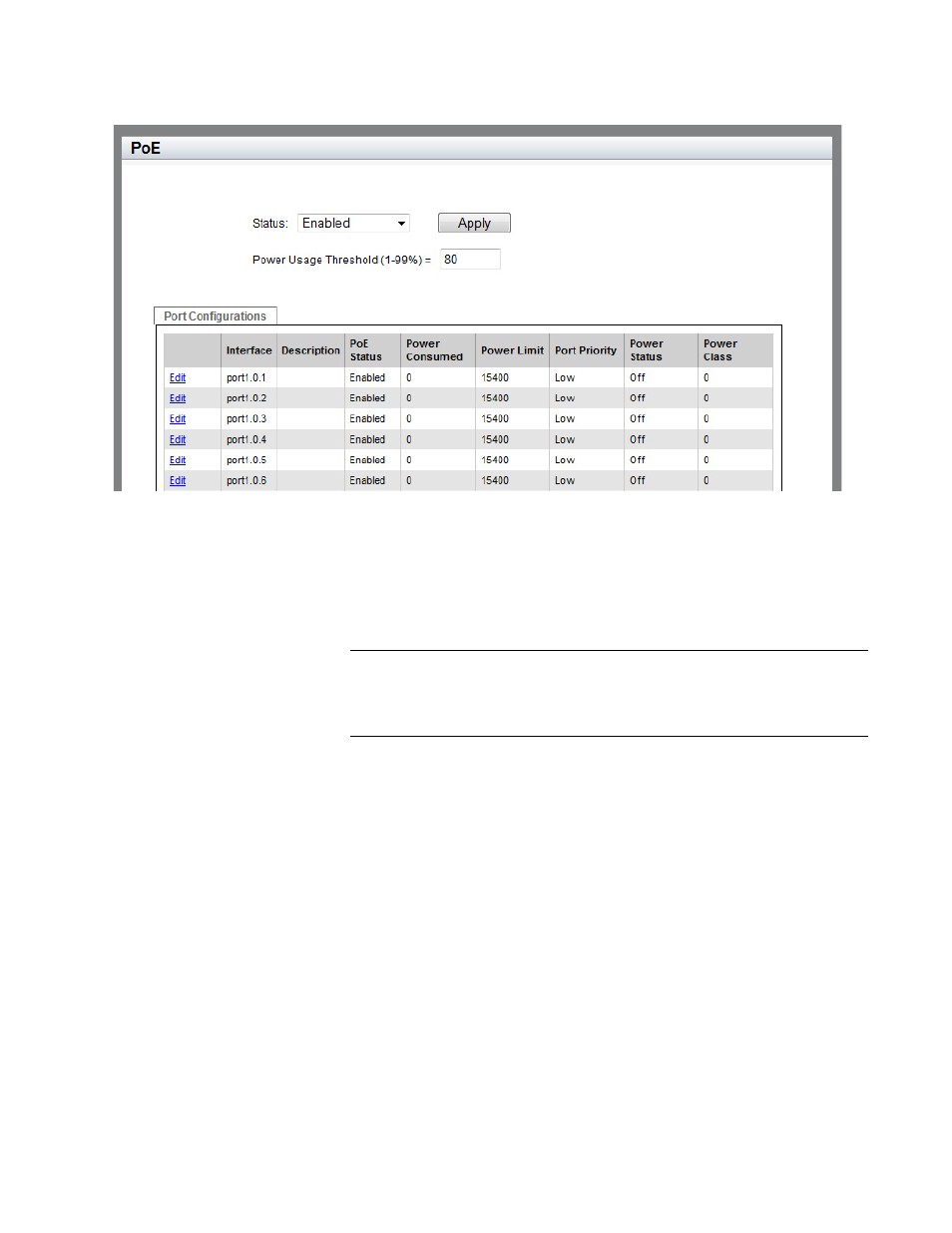

Figure 66. PoE Port List Page
The following fields are displayed:
 Status— Enable or disable PoE on the ports globally. By default,
power is enabled on all ports.
Note
This status does not indicate that the PoE status of all the ports is
the same. To find out the PoE status, you must examine the PoE
status for a port individually.
 Power Usage Threshold— Power usage threshold in a
percentage of the switch’s total available power. The range is 1 to
99%.
 Interface— Port ID.
 Description— Description of the port.
 PoE Status— Indicates if power for the port is enabled or disabled.
By default, power is enabled for all the ports on the switch.
 Power Consumed— Power consumption in milliwatts (mW) for
the port.
 Power Limit— Power limit in milliwatts (mW) on the port.
 Port Priority— Port priority: Low, High, or Critical. For more
details, see “Port Prioritization” on page 171.
