Chapter 21: Setting Static Routes

244

Displaying Static Routes

To display the static routes, do the following:

1. Hover the cursor over the Layer 3 tab.

The Layer 3 tab is displayed. See Figure 98.

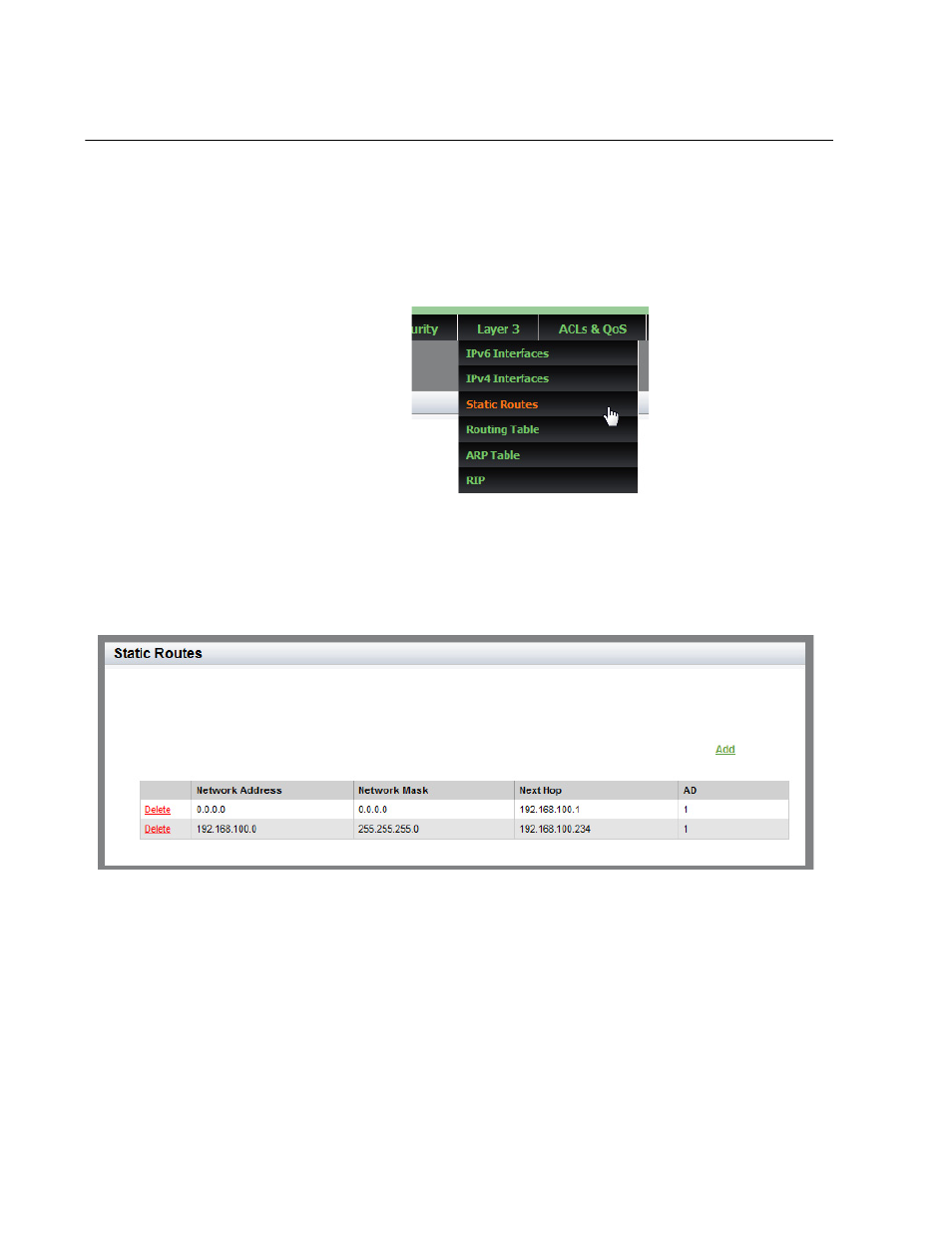

Figure 98. Layer 3 Tab

2. From the Layer 3 tab drop-down menu, select Static Routes.

A list of static routes is displayed. See Figure 99.

Figure 99. Static Routes Page

The following fields are displayed:

Network Address— IP address of the destination network. The IP
address for a default route is 0.0.0.0.

Network Mask— Subnet mask of the destination network.

Next Hop— IP address of the next hop to the route.

AD— Value of the administrative distance specified to the route.
