10.2 Saving the current position
(Preset)
10.2.1 Quick save
Using the control keyboard it is possible to save the
current position (for further information, refer to the
manual of the keyboard in use).
During the saving stage, it is possible to change the
speed at which Preset is reached using keys Focus
Far/Focus Near and to change the waiting time using
keys Iris Open/Iris Close.
------------------------

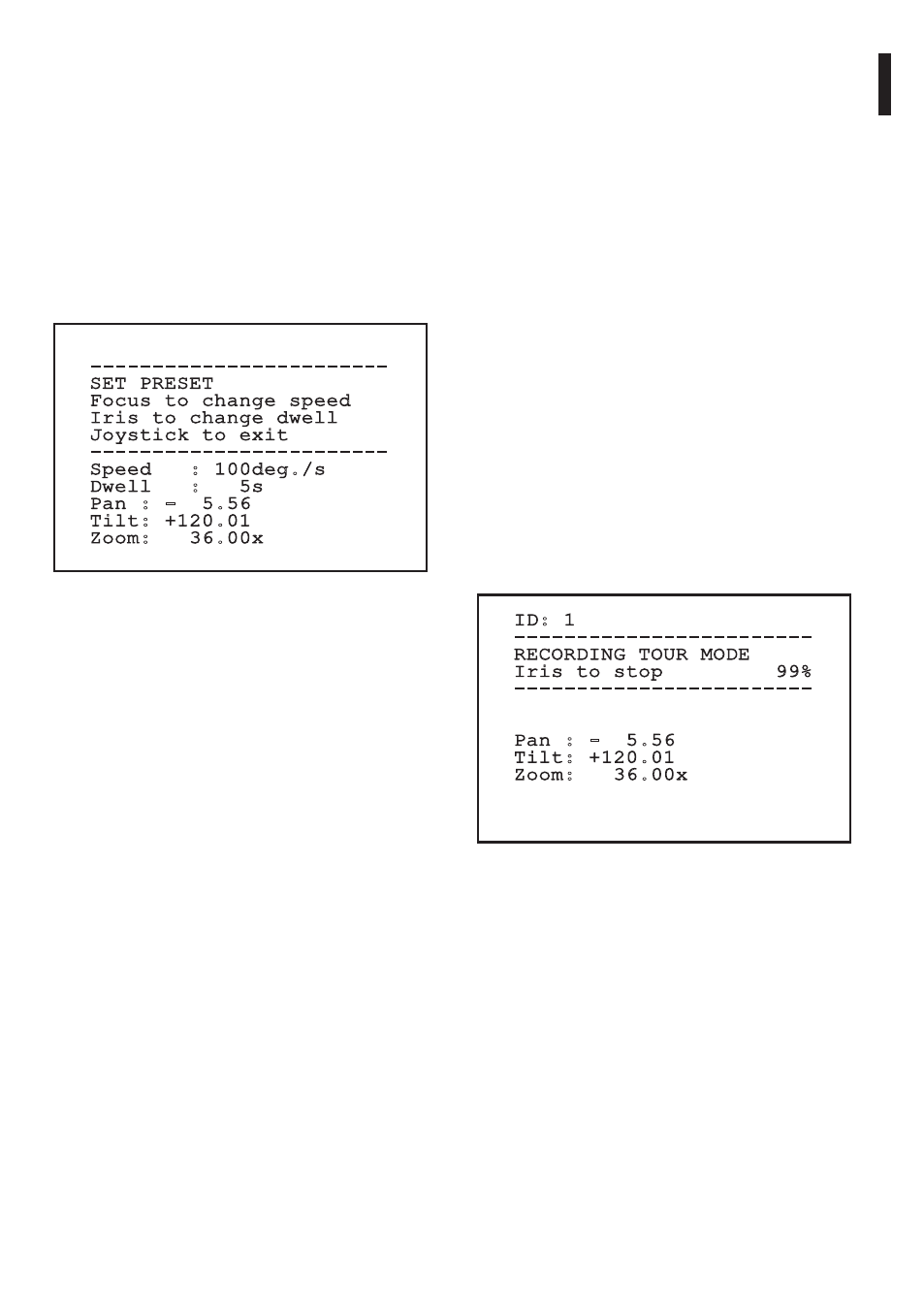

SET PRESET
Focus to change speed
Iris to change dwell
Joystick to exit
------------------------
Speed : 100deg./s
Dwell : 5s
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Fig. 134
10.2.2 Saving from the Menu
Refer to 9.6.4.3 Preset Menu, page 45.
10.3 Recalling a position (Scan)
Using the control keyboard it is possible to recall a
previously saved position (for further information,
refer to the manual of the keyboard in use).
10.4 Enabling Patrol function
Using the control keyboard it is possible to enable the
automatic patrol (for further information, refer to the
manual of the keyboard in use or to Tab. 11, page 68).
Disabling can be carried out by moving the joystick
or by recalling a different type of movement.
To configure the Patrol function, refer to 9.6.4.6 Patrol
Menu, page 47.
10.5 Enabling Autopan Function
Using the control keyboard it is possible to enable the
Autopan (for further information, refer to the manual
of the keyboard in use or to Tab. 11, page 68).
Disabling can be carried out by moving the joystick
or by recalling a different type of movement.
To configure the Autopan function, refer to 9.6.4.7
Autopan Menu, page 47.
10.6 Recalling a pattern (Tour)
The Tour functioning mode allows the repetition of a
previously recorded route in a continuous manner.
The pan & tilt can store up to 3 Tours, each lasting no
more than 2 minutes.
To save a Tour, enter the special preset of the number
of Tour to be saved using the keyboard (Tab. 11, page
68).
To simplify the recording of the Tour, the pan &
tilt automatically limits the speed of the Pan & Tilt
depending on the Zoom factor.
While the Tour is being recorded, the remaining
recording time is displayed, as shown in the figure.
ID: 1
------------------------
RECORDING TOUR MODE
Iris to stop 99%
------------------------
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Fig. 135
To interrupt recording, press the Iris Open or Iris Close
key.
To start the play-back of a Tour, enter the special
preset of the number of Tour to be displayed using
the keyboard (Tab. 11, page 68).
