Set the preset positions for the other units in the
same way.
Close the NVR application and re-start it to
save the settings.
When the application is re-started, the preset
positions can be loaded using the Go To command
on the control panel, and selecting the desired
position.

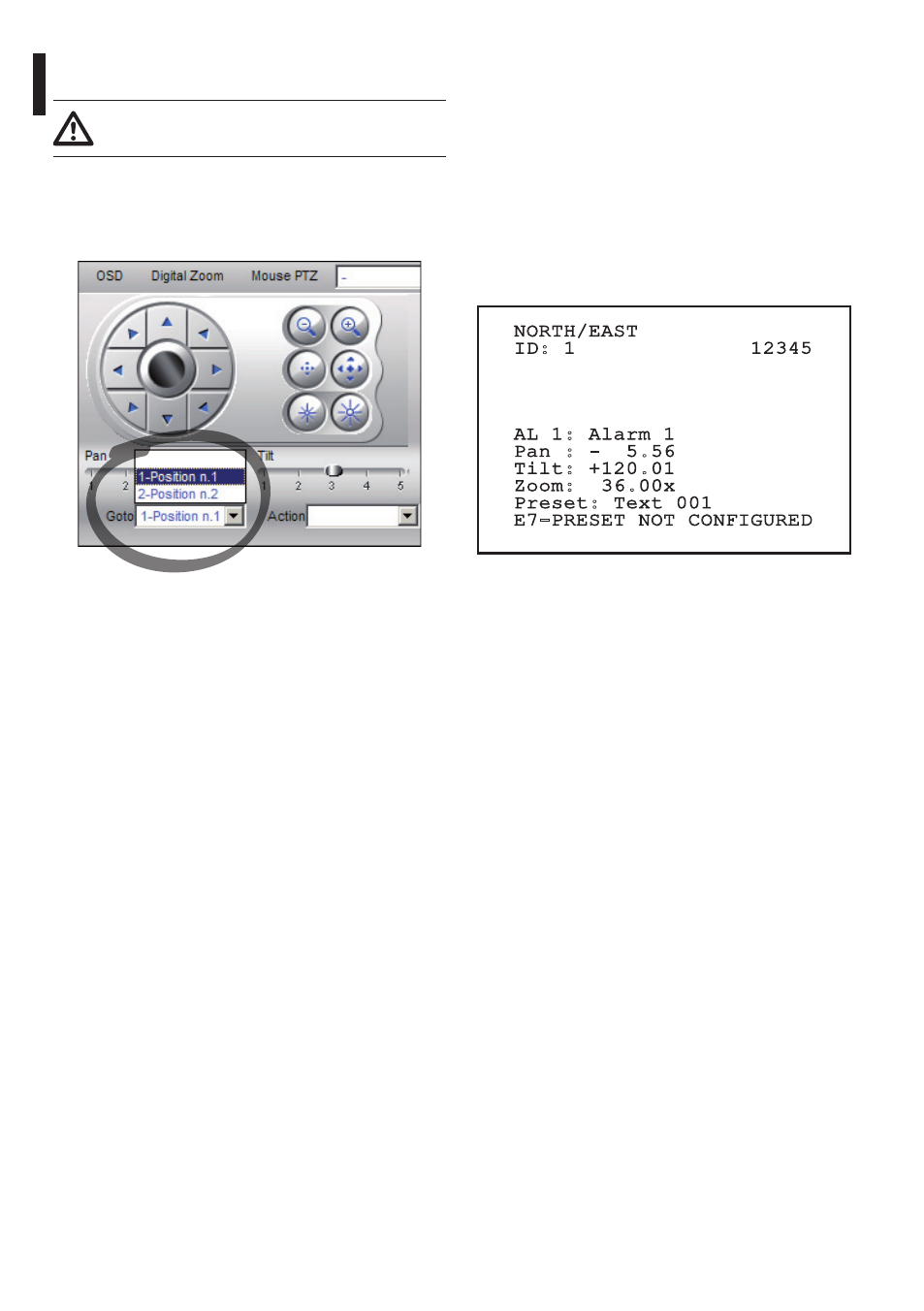

Fig. 132
To control the other available functions, such as
recording on disc, playback and snapshot, and for
other detailed information about using the software,
see the manual on the installation CD: NVR User
Manual.
10 Instructions for safe
operation
10.1 Visualizing the state of the
pan & tilt
During normal operation the pan & tilt displays
on screen, at user's choice, the data organized as
illustrated. The visualization can be enabled or
disabled (9.6.5 Display Menu, page 48).
NORTH/EAST
ID: 1 12345
AL 1: Alarm 1
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Preset: Text 001
E7-PRESET NOT CONFIGURED
Fig. 133
NORTH/EAST: Name of the area where one is
currently located;
ID: 1: Receiver’s address;
12345: Complete list of active alarms;
AL 1: Alarm 1: Text regarding the last active alarm;
Pan: - 5.56/Tilt: +120.01/Zoom: 36.00x: Current
position of Pan, Tilt and Zoom;
Preset: Text 001: Name of selected active preset;
E7-PRESET NOT CONFIGURED: The following field
shows the errors found while the system was running
or the commands received via serial (visualization can
be enabled or disabled only for received commands).
