9.6.3.4 Masking Menu (Edit Masks)
Once inside the Edit Masks menu it is possibile to set
the following parameters:
1. Mask Number: Allows you to choose the mask
on which to operate.
2. Enable Mask: Enables or disables the selected
mask.
3. Edit Mask: Allows the creation or editing of a
mask.
EDIT MASK
------------------------
1>MASK NUMBER : 1
2 ENABLE MASK : N
3 EDIT MASK >

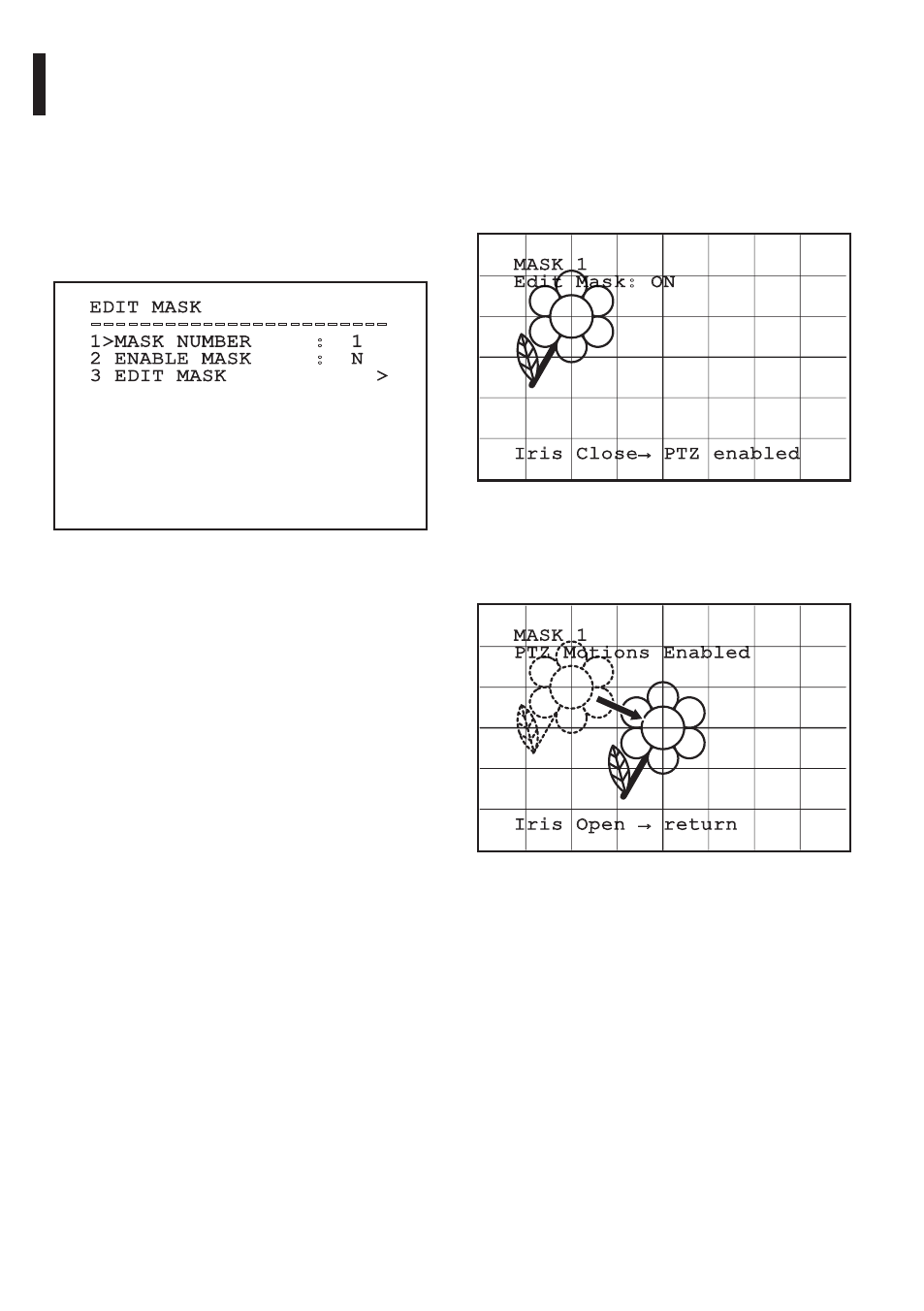

Fig. 71
Selecting the option Edit Mask in the menu makes it
possible to set new values for the selected mask.
9.6.3.5 How to create a new mask
Choose a disabled mask by selecting Mask Number
from the Edit Masks menu. Select Edit Mask to edit it.
(Fig. 71, page 38).
In the following example we shall mask a flower.
• Press the Iris Close button to pass from Masking
mode to Move Camera mode.
MASK 1
Edit Mask: ON
Iris Close→ PTZ enabled
Fig. 72
• Operate the joystick on the keyboard to move the
unit and if necessary operate the zoom to centre
the flower on the screen.
MASK 1
PTZ Motions Enabled
Iris Open → return
Fig. 73
