9.6.10 Thermal Camera Menu
1. Control: Sets the type of control on the thermal
camera.
• Internal: The camera configuration is
managed by the pan & tilt.
• External: The camera configuration is
managed through the RS485-3 serial line
(only for models with double camera)
2. Configuration: To set one of the preset
configurations of the thermal camera.
• Standard: Sets the standard configuration of
the thermal camera.
• High Gain: Sets the configuration for a
higher-resolution image.
• Isotherm: Sets the configuration for
highlighting objects within a given
temperature range (9.6.10.8 Thermal Analysis
Menu (Isotherm), page 56).
• Custom: Signals that the operator has
manually chosen the configuration of the
thermal camera.
3. Flat Field Correction: Allows access to the Flat
Field correction management submenu.
4. Video Setup: Allows access to the video
configuration management submenu.
5. Gain control: Allows access to the gain control
management submenu.
6. ROI Setup: Allows access to the ROI
management submenu.
7. Thermal Analysis: Allows access to the thermal
analysis management submenu.
8. Status: Allows access to the submenu
containing the technical features of the thermal
camera.

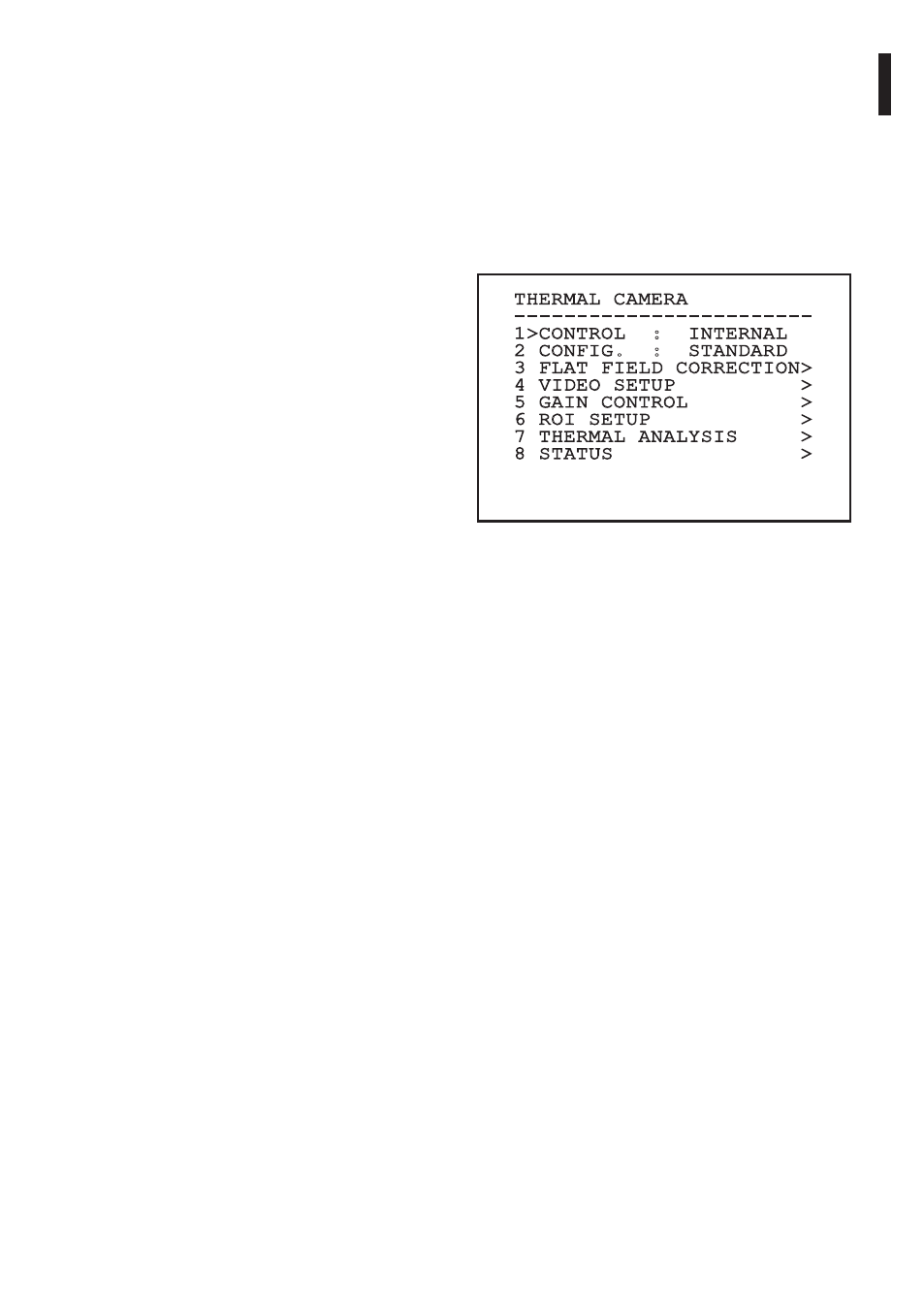

THERMAL CAMERA
------------------------
1>CONTROL : INTERNAL
2 CONFIG. : STANDARD
3 FLAT FIELD CORRECTION>
4 VIDEO SETUP >
5 GAIN CONTROL >
6 ROI SETUP >
7 THERMAL ANALYSIS >
8 STATUS >
Fig. 102
