Instruc
tions manual - English - EN
61

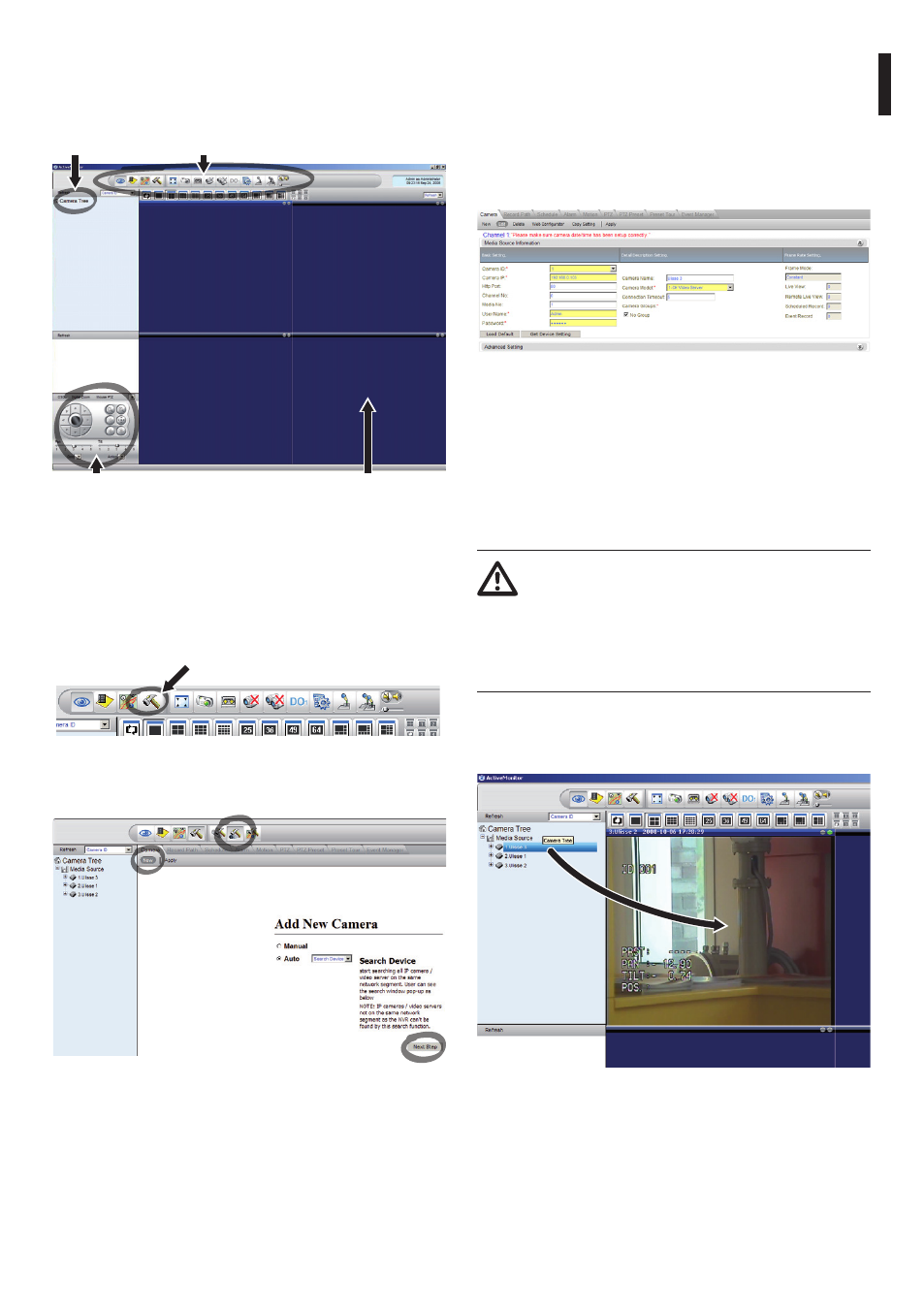

The first time you run the program, the following
display will appear, with an empty camera list
(Camera Tree).
Camera tree Tool bar
Manual control
panel
Live Video
Fig. 122
At this point you need to add the various devices
present in the system. Click on the Setup button in
the control bar.
Setup button
Fig. 123
Then click on Setup Camera.
Fig. 124
Insert the settings manually if you know the IP
addresses of the various units present, otherwise do
an automatic setup, which will identify the various
units.
When setting up manually, it is essential (as in
automatic setup, apart from the IP address) to set the
items marked by an asterisk, i.e.
Camera ID: Consecutively, 1, 2, 3 etc.
Camera IP: E.g. 192.168.0.102
Camera Model: Select 1-CH Video Server
Fig. 125
Set the name that will appear in the Camera Tree:
Camera Name: P&T 2 Example
On completion, click on Apply and wait until the
settings have been saved.
Repeat the procedure for all the other devices
present in the system.
On completion of this stage, you should
close the NVR program and re-start it so
that the changes take effect. When the
program is restarted, the Camera Tree
should contain a list of the units in the
system for which settings have been made.
From the Media Source list, drag & drop the first unit
into one of the blue windows, and the live video
image should appear.
Fig. 126 Example of drag & drop.
Repeat the procedure for the other units.
