6.1.14 Setting the baud rate
To set the baud rate operate on DIP 2.
1 2
3 4 5
6 7
8 9
0
1 2
3 4 5
6 7
8 9
0
1 2
3 4 5
6 7
8 9
0
0A
ON
1 2
3 4
5
6 7
8
U2
U1
U3
D
IP
3
D
IP
5
D
IP
4
1
2
3
4
DIP 2

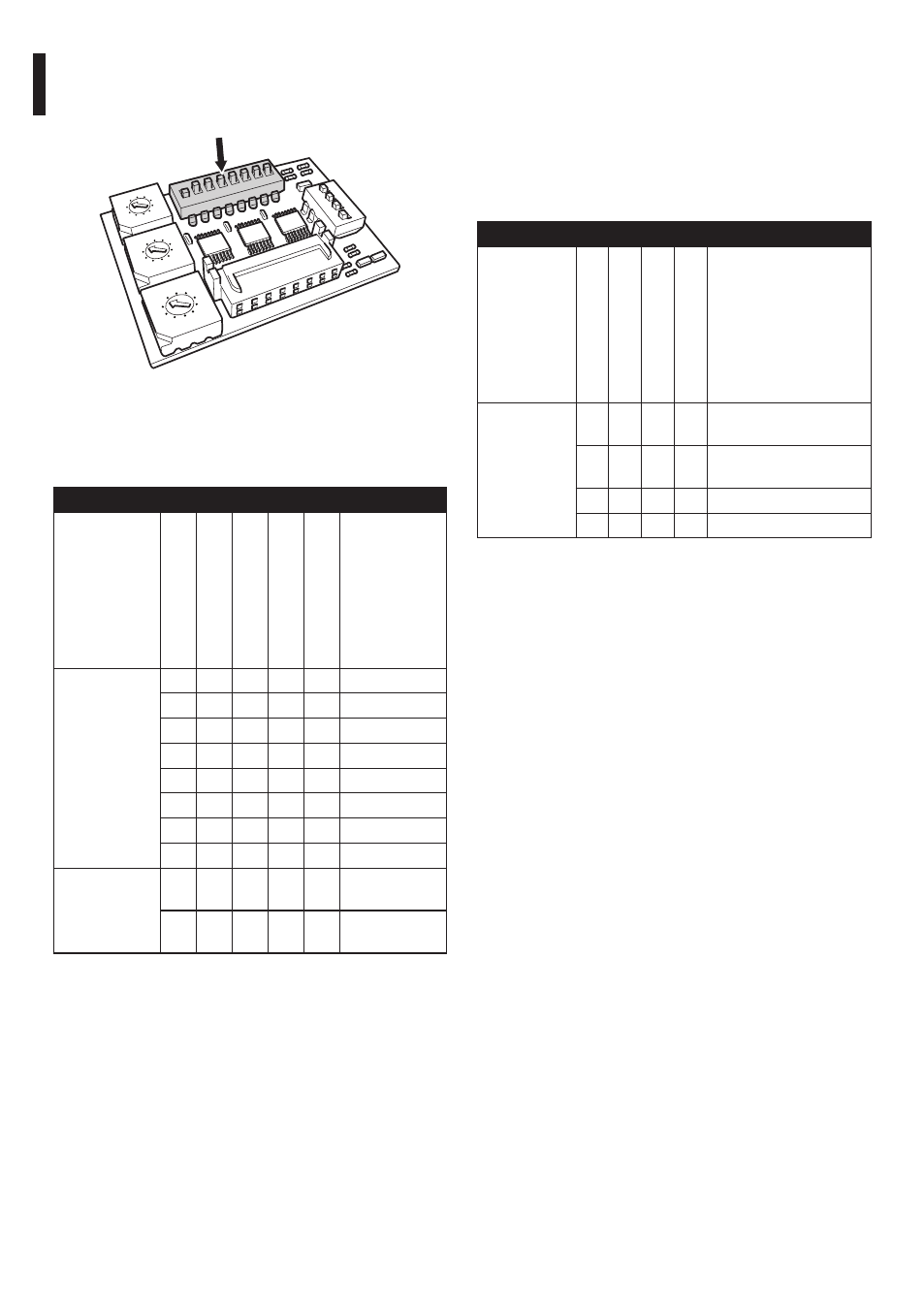

Fig. 37
Dip-switches 4, 3 and 2 are used to set the
communication rate of the device according to the
table below.
SETTING THE BAUD RATE (DIP 2)
Description SW 1 SW 2 SW 3 SW 4 SW 5-6-7-8 Configur
ation
Baud rate
selection
ON ON ON 38400 baud
OFF ON ON 19200 baud
ON OFF ON 9600 baud
OFF OFF ON 4800 baud
ON ON OFF 2400 baud
OFF ON OFF 1200 baud
ON OFF OFF 600 baud
OFF OFF OFF 300 baud
Configurations
display
ON Display ena-
bled
OFF Display disa-
bled
Tab. 5
6.1.15 Serial communication lines
To set the serial communication lines operate on
DIP 2.
The product is designed with two RS485 serial
communication lines which can have various settings
according to the positions of dip-switches 5 and 6 on
the DIP selector.
SERIAL COMMUNICATION LINES (DIP 2)
Description SW 1-2-3-4 SW 5 SW 6 SW 7-8 Configur
ation (see
rela
ted chapt
ers)
Serial line ON ON Two-way RS485 TX/
RX line
OFF ON Line RS485-1 reception,
line RS485-2 repetition
ON OFF Two-way RS422 line
OFF OFF One-way RS485 line
Tab. 6
