EN - English - I
nstruc
tions manual
48
9.6.4.9 Advanced Menu
1. Static Control: Enables control of the position
only when the pan & tilt is stopped
2. Dynamic Control: Enables control of the
position only when the pan & tilt is moving
3. Cyclic Homing: If other than zero, it sets a new
homing procedure after the specified number of
hours.
4. Economy Mode: Reduces the motor toque
when the pan & tilt is not moving. Do not enable
in presence of strong wind or vibrations.

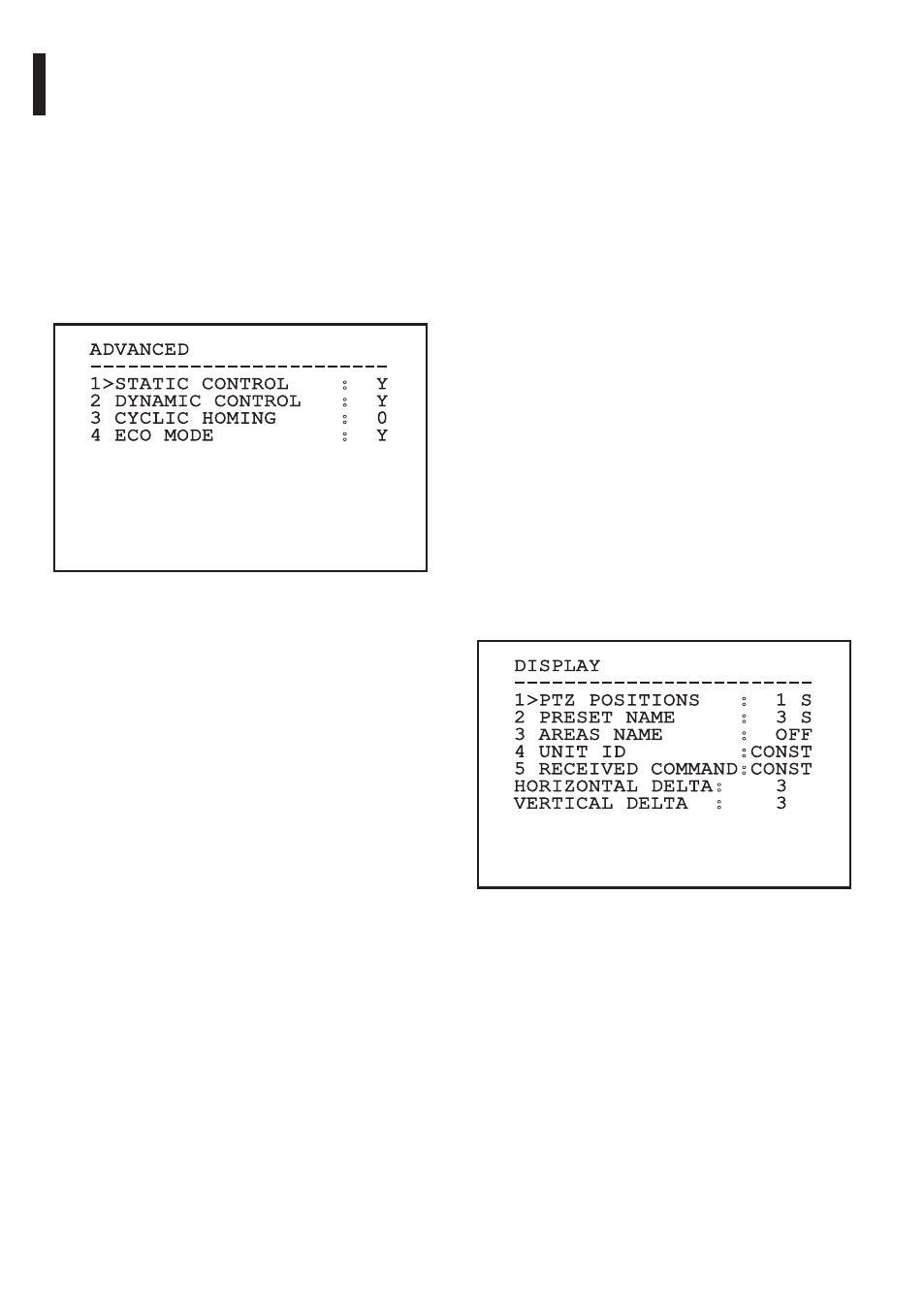

ADVANCED
------------------------
1>STATIC CONTROL : Y
2 DYNAMIC CONTROL : Y
3 CYCLIC HOMING : 0
4 ECO MODE : Y
Fig. 93
9.6.5 Display Menu
1. PTZ Positions: If not on OFF, it is used to select
how the Pan, Tilt and Zoom positions are
displayed on the screen. It is possible to select
timed (1 S, 3 S and 5 S) or constant (CONST)
display.
2. Preset Name: If not on OFF, it is used to select
how the text associated with the last-reached
Preset position is displayed on the screen. It is
possibile to select timed (1 S, 3 S and 5 S) or a
constant (CONST) display.
3. Areas Name: If not on OFF, it is used to select
how the texts associated with active areas are
displayed. It is possibile to select timed (1 S, 3 S
and 5 S) or constant (CONST) display.
4. Pan & Tilt ID: If not on OFF, it shows the ID of
the pan & tilt.
5. Received Commands: If not on OFF, it is used
to select how the received serial commands are
displayed. It is possibile to select timed (1 S, 3 S
and 5 S) or constant (CONST) display.
6. Horizontal Delta: This moves the menu texts
horizontally, for better centring.
7. Vertical Delta: This moves the menu texts
vertically for better.
DISPLAY
------------------------
1>PTZ POSITIONS : 1 S
2 PRESET NAME : 3 S
3 AREAS NAME : OFF
4 UNIT ID :CONST
5 RECEIVED COMMAND:CONST
HORIZONTAL DELTA: 3
VERTICAL DELTA : 3
Fig. 94
