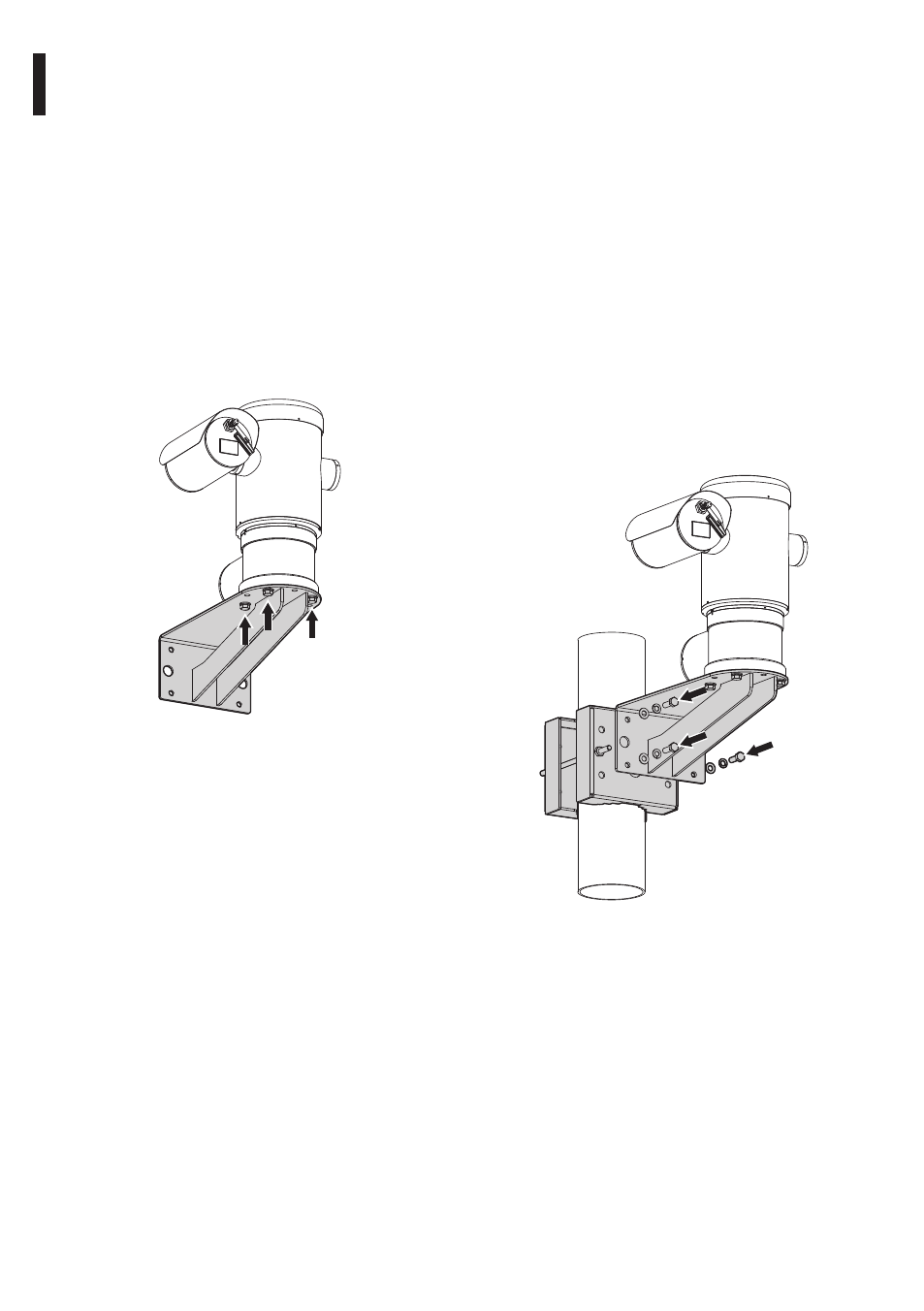

5.4.2 Fixing with bracket
The bracket can be fixed to the vertical wall. Use
screws and wall fixing devices that can bear at least
four times the weight of the unit.
To fix the device to the bracket, use 4 washers, 4
stainless steel grower washer and 4 hexagon stainless
steel bolts (A4 class 80) M10x20mm.
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking
compound (Loctite 270) into the threaded holes in
the base of the device.
Tighten them to 35Nm. The thread compound
must cure for one hour, allow for this period prior to
completing the installation.
Fig. 7
5.4.3 Fixing the unit to the pole mount
adapter or corner mount adapter
To install the component on a pole or at a wall corner,
first of all fix the pan & tilt unit to the wall bracket (
5.4.2 Fixing with bracket, page 14).
5.4.3.1 Fixing with pole mount
Fix the wall bracket to the pole mount adapter
using 4 washers, 4 stainless steel grower washer
and 4 hexagon stainless steel bolts (A4 class 80)
M10x30mm.
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking
compound (Loctite 270) into the threaded holes in
the base of the device.
Tighten them to 35Nm. The thread compound
must cure for one hour, allow for this period prior to
completing the installation.
Fig. 8
