• Insert the silicone sheath supplied for this purpose.
• Combine the 2 optical fibers using ST-ST adapter
supplied.

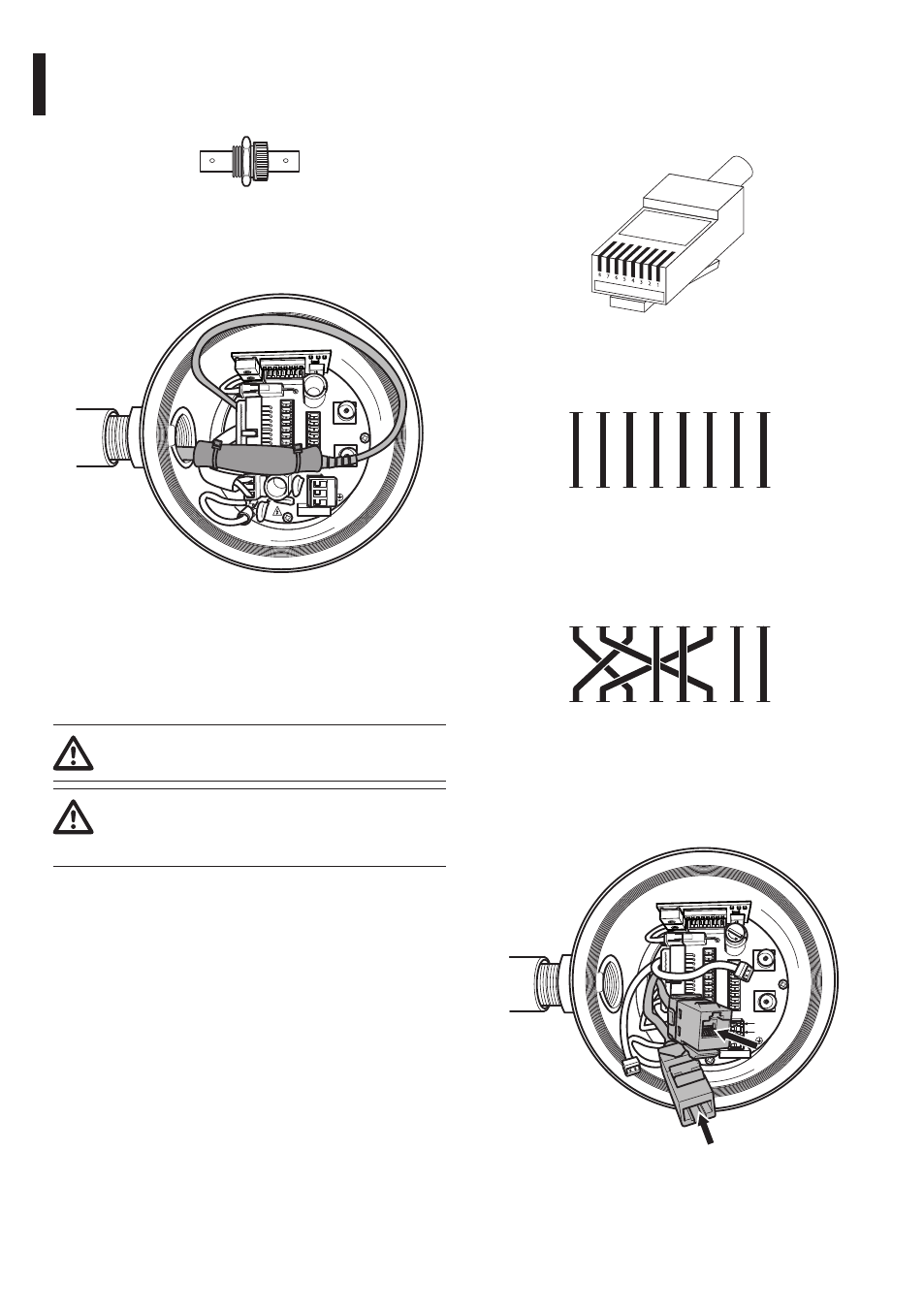

Fig. 24
• Cover the ST-ST adapter with silicone sheath
secure it with a clamp
100nMBW3
L
N
VAR3
VAR1 AC
AL1
AL2
AL3
AL4
AL5
COM
RL1
RL1
RL2
RL2
GND
W
GND
B
A
B
A
IN J1
J6
J2
J3 J8
J7
FUS1
VAR2
VIDEO - 1
VIDEO - 2
RS485
FUS2
J9
Fig. 25
• Refer to the manual of the receiver optical fiber
for the control of the video and telemetry from
remote.
6.1.8 Connection of the ethernet cable
Operating mode valid only on version with
IP board.
Telemetry transmission and video signal
pass through the Ethernet cable. Do not
connect cable RS485 and the video cable.
To connect the net cable a UTP, Category 5E or
superior, 4 pair with a maximum length of 100m is
needed.
Crimp the RJ45 connector on the ethernet cable.
Crimping should be straight-through if passing via
a hub or switch while it should be crossover if you
are connecting directly to the PC for the necessary
checks.
Fig. 26 Crimped cable.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A
B
Fig. 27 Straight-through cable.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A
B
Fig. 28 Crossover cable.
Connect the crimped net cable to connector RJ45
located on the base of the unit.
FUSE
FUSE
100nMBW3
L
N
VAR3
VAR1 AC
AL1
AL2
AL3
AL4
AL5
COM
RL1
RL1
RL2
RL2
GND
W
GND
B
A
B
A
IN J1
J6
J2
J3 J8
J7
FUS1
VAR2
VIDEO - 1
VIDEO - 2
RS485
FUS2
J9
Fig. 29
