Page 34: 2 how to move around the menus

EN - English - I

nstruc

tions manual

9 Configuration

9.1 On Screen Menu (OSM)

During the normal operation of the unit it is possible

to activate the On Screen Menu in order to set the

advanced functions using the corresponding keys

(for further information, refer to the manual of the

keyboard in use or to Tab. 11, page 68).
Exit the On Screen Menu with Zoom Wide (or Zoom-).

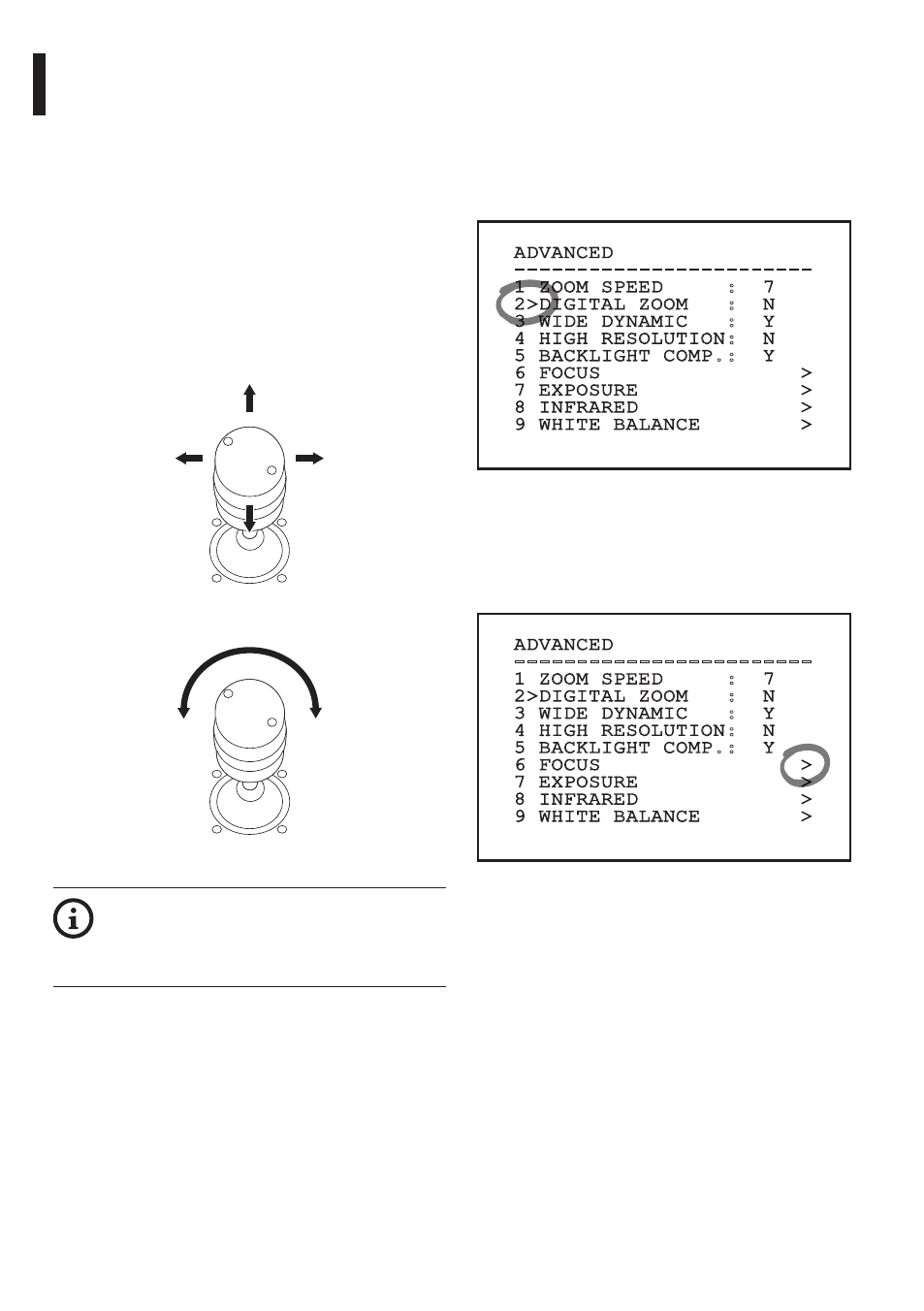

9.1.1 How to use the joystick

All operations in the menus are carried out using the

joystick.

Down

Left

Right

Fig. 51

Exit

Confirm

Fig. 52

If using a control keyboard with a dual axis

joystick, use the Zoom Wide and Zoom

Tele keys to carry out the Exit and Confirm

commands.

9.2 How to move around the

menus

Each page of the OSM shows a list of parameters or

sub-menus that can be selected by the operator. To

scroll through the parameters move the cursor by

operating the joystick (up and down).

ADVANCED

------------------------

1 ZOOM SPEED : 7

2>DIGITAL ZOOM : N

3 WIDE DYNAMIC : Y

4 HIGH RESOLUTION: N

5 BACKLIGHT COMP.: Y

6 FOCUS >

7 EXPOSURE >

8 INFRARED >

9 WHITE BALANCE >

Fig. 53

The symbol > at the end of a line indicates the

presence of a specific submenu. To enter the

submenu just confirm the menu item. To exit the

submenu use the Exit function (Zoom Wide).
