Rawson Accu-Rate/Accu-Plant

PF3000

Application Rate Mode

Ag Leader Technology

April 2002

2-66


Cable attachment
for Rawson Accu-
Rate and Seed
Manager




























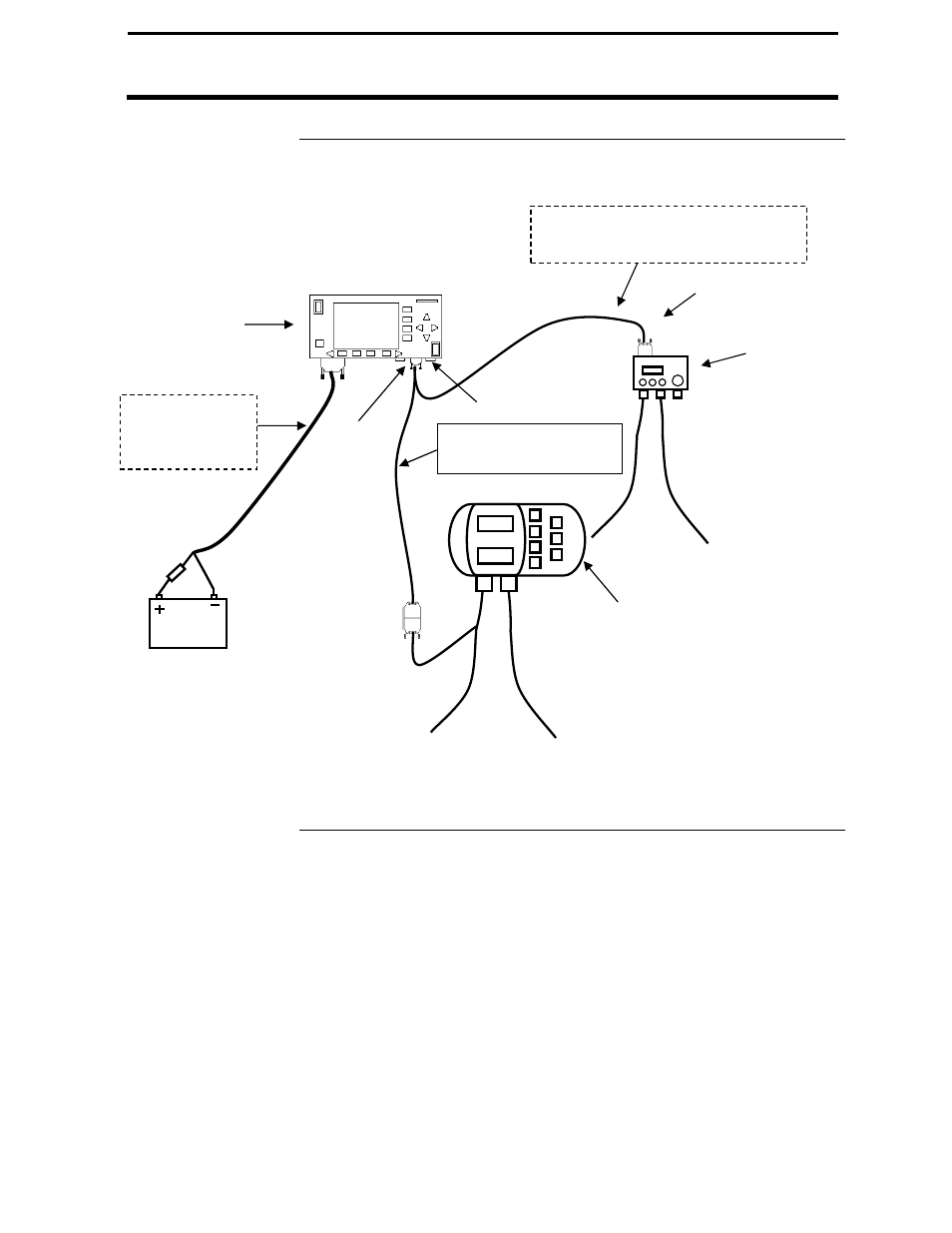

The diagram above shows connections required for the PF to control the
population of the Accu-Rate and record the actual population as
measured by the Seed Manager or Vanguard VM 2500 (PIC). The
ground speed, swath width and area count status come from the Seed
Manager.


Com A

ATV Battery
Power Cable
(p.n. 2000497-2)

PF3000

Vanguard PIC or
Dickey-john Seed
Manager Console

Rawson Serial Cable (p.n. 2000952)
(Same as PC cable)

Rawson

Console

Dickey-john Serial
Cable (p.n. 2000947)

Port 2

Port 3
