Ag Leader PF3000 Harvest & Application Operators Manual - Manual (Page 112)

Flowmeter Controller PF3000
Application Rate Mode Ag Leader Technology
April 2002 2-96

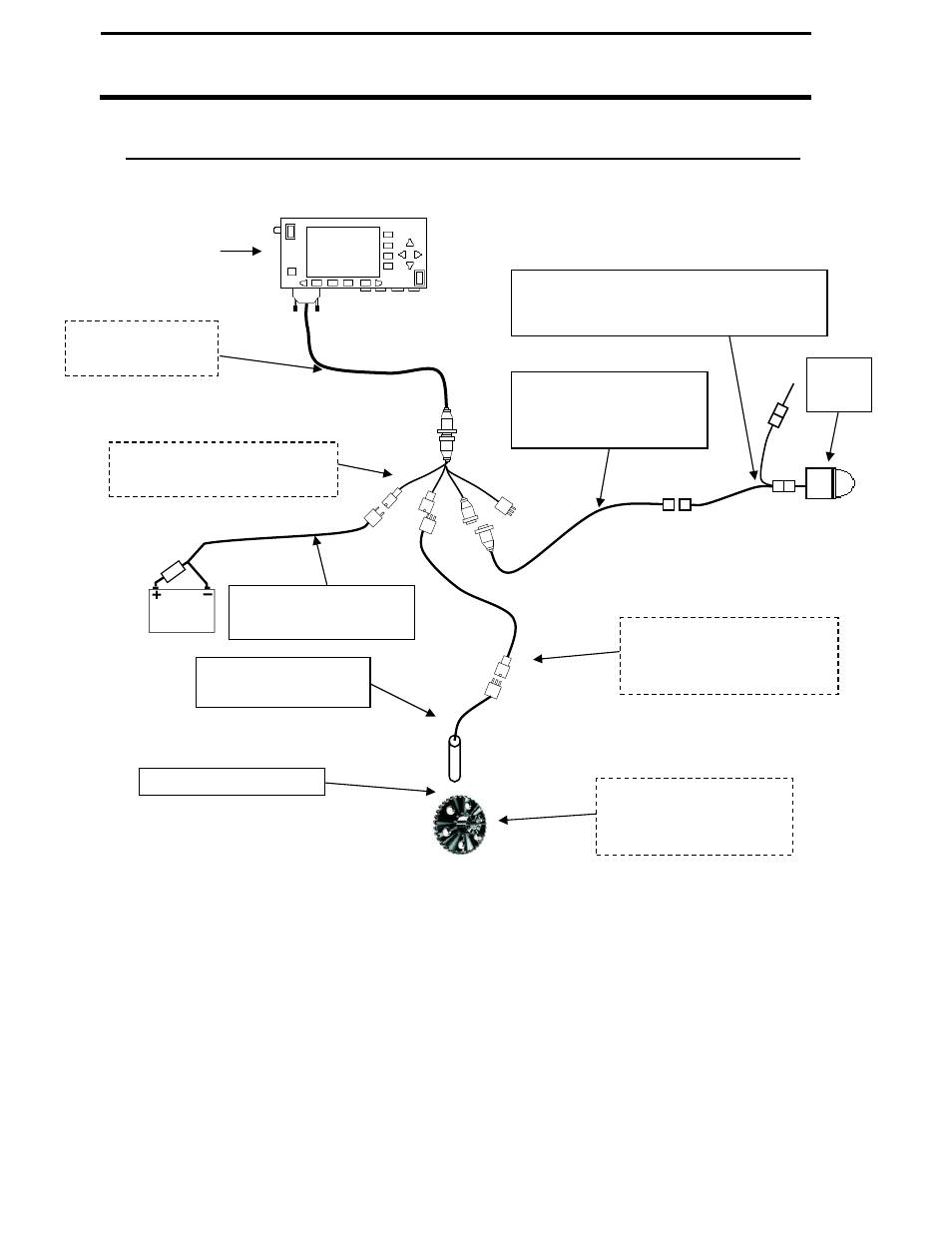

Example of connections for a sprocket and shaft speed sensor on a Planter
Tractor Cab Cable
(p.n. 2000493)
Tractor Distribution Cable
(p.n. 2000494)
1/16” to 1/8” Clearance
Shaft Speed Sensor (p.n.
2000882-3)
30 to 45 tooth Sprocket -
#40 or larger sprocket
(not included)
Flow Meter Ext. Cable
(p.n. 2000453-2 [10 ft.])
(p.n. 2000453-3 [25 ft.])
Radar Extension Cable
(p.n. 2000816-1 10 ft
p.n. 2000816-2 20 ft)
Radar Tee Cable-Raven, Micro-Trak,
Magnavox (Deere) Case-IH available. Dickey-
john radar connects direct to distribution cable.
Radar
Gun
Battery Power Cable
(p.n. 2000495)
PF3000
