PF3000

General

Ag Leader Technology

April 2002

1-7

Area Count Switch

The area count switch manually turns on and off area counting. When the
switch is in the up position area is counting. When the switch is in the
down position, area is not counting. The monitor will display either “AREA
ON” or “AREA OFF” on the bottom right corner of the display to indicate
the status of area couting.

Connectors

The PF3000 has four connectors on the bottom side of the console. The
large 25-pin connector is for power and sensor connections. The three 9-pin
ports (Port 1, Port 2, Port 3) are for connecting to a GPS receiver, planter or
fertilizer or sprayer controller or any other GPS compatible device.



















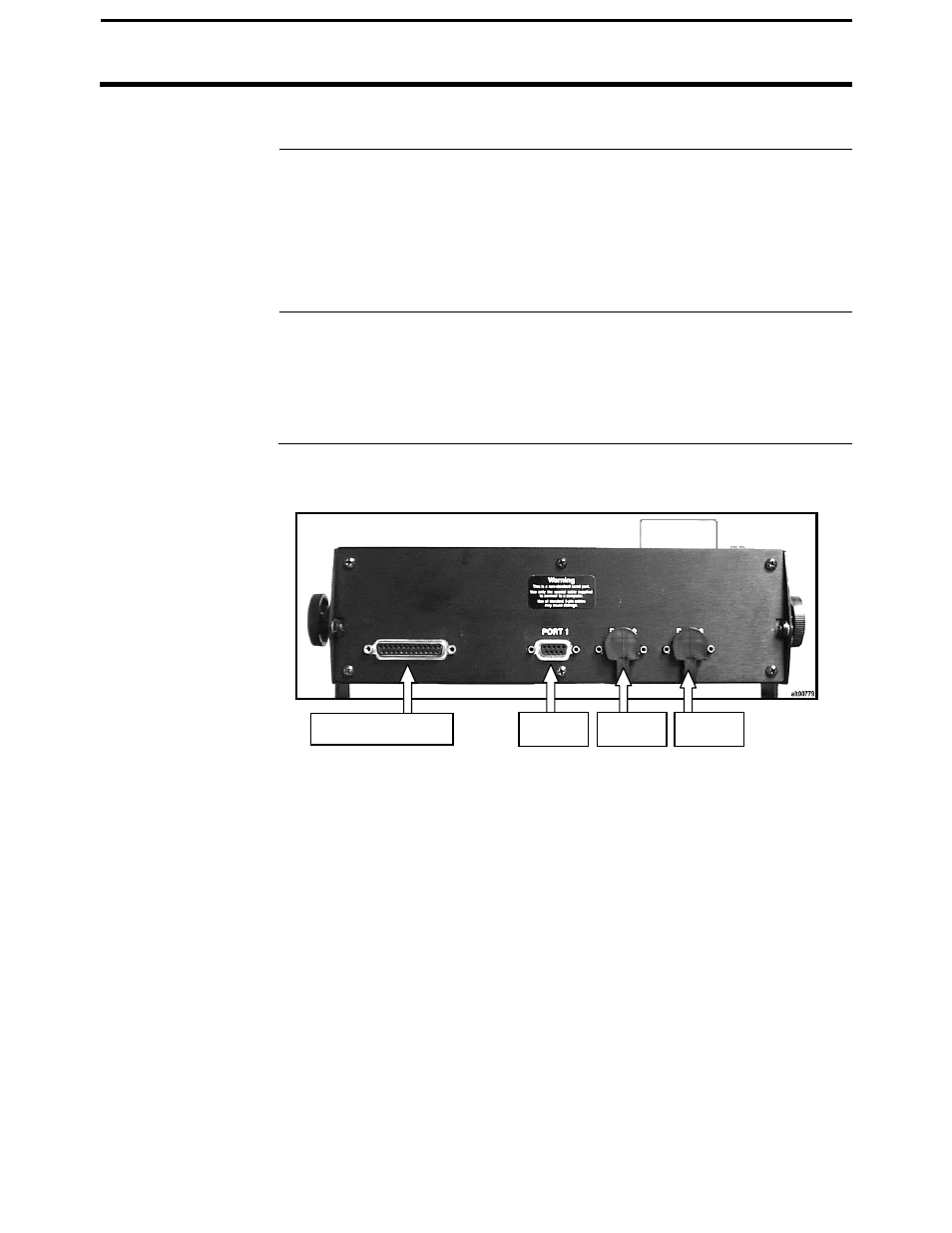

Figure 3. PF3000 Connectors

Port 3

Port 2

Port 1

25-Pin Connector
