On Screen Map PF3000
All Modes Ag Leader Technology
April 2002 4-4
On Screen Map
The PF 3000 mapping screen will display a coverage map based
on the swath width and path traveled by the vehicle. The monitor
makes one coverage map for the GPS data logged for each field in
each operating mode.
The On Screen Map can be used to identify missed passes and
verify data collection. It does not have enough resolution to
show small uncovered areas between passes.

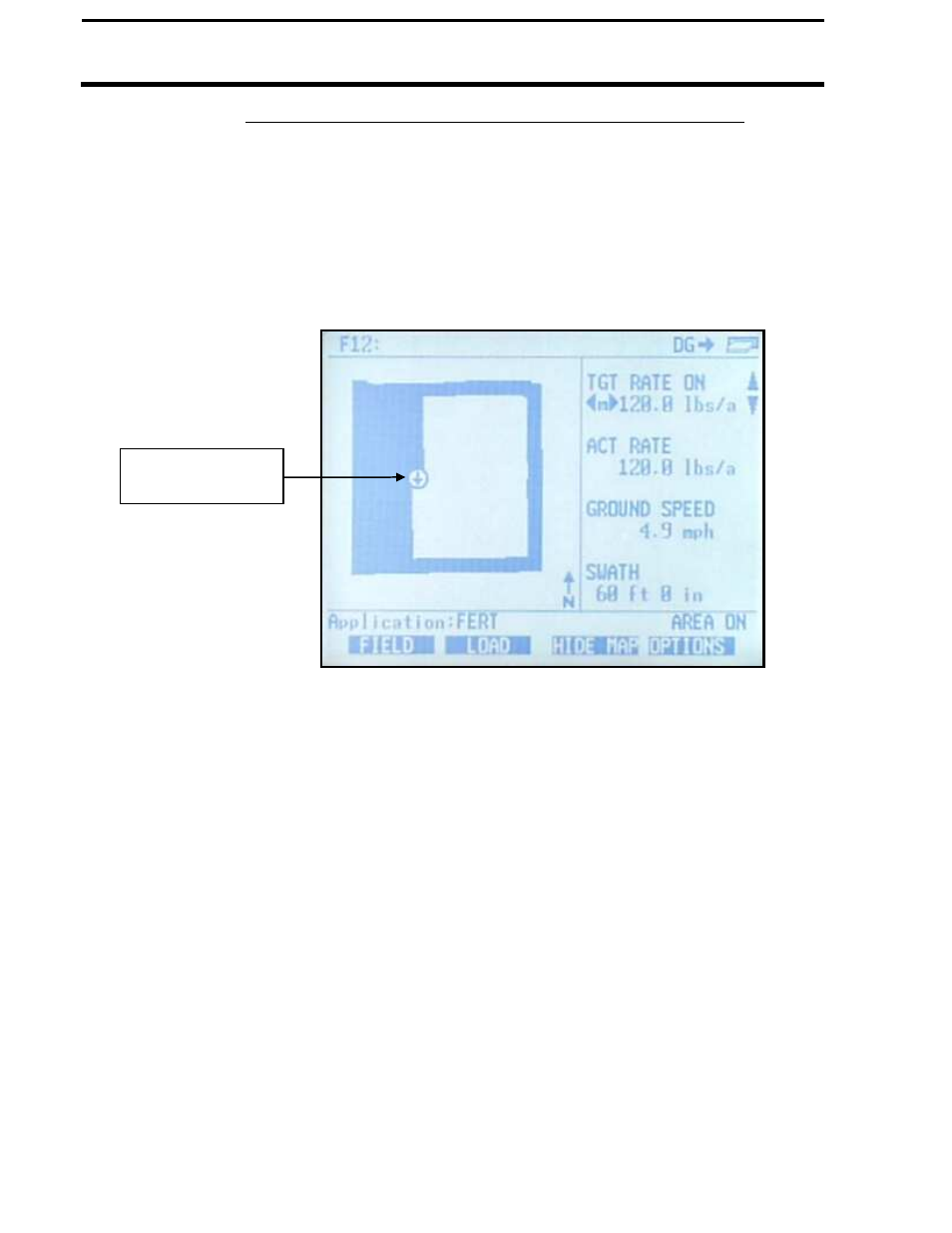

Example of Coverage Map
PF Coverage Files
(PFC files) The PFC file is used to store each coverage map made by the
PF3000. The data is stored on a memory card that is in the
monitor at the time the file is created. The PFC file will not be
read or created by anything other than a PF model monitor. It will
always be 20 kb in size regardless of field size.
The field and operating mode of the PFC file is identified in the
file name. The format is shown below:
MMMMFNNN.pfc where Mode is abbreviated as M, Field is
abbreviated as F and field number is abbreviated as N.
Position and
Heading of vehicle
