PF3000

Rawson Accu-Rate/Accu-Plant

Ag Leader Technology

Application Rate Mode

April 2002

2-65


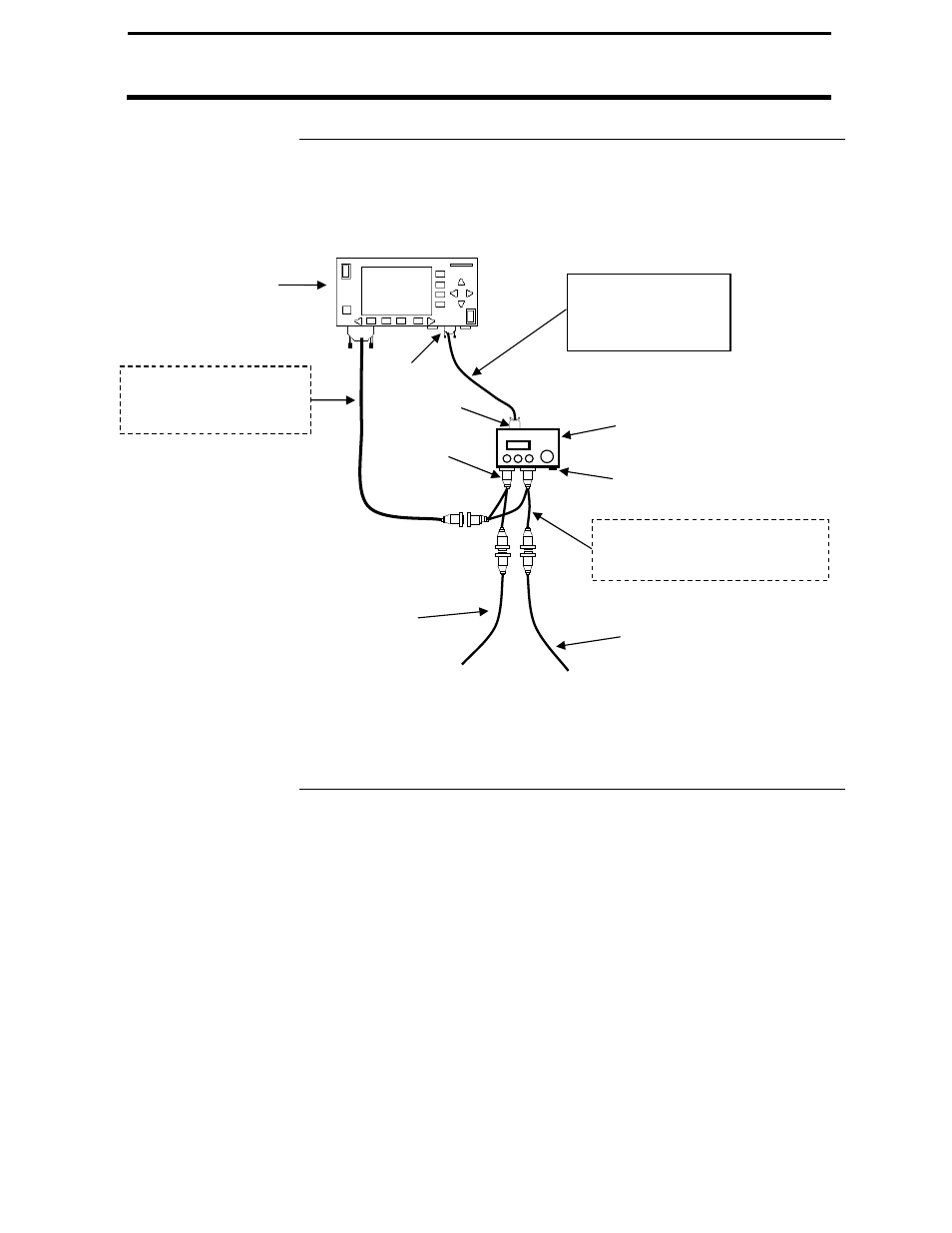

Cable attachment
for Rawson Accu-
Rate Controller





























The Rawson serial cable (p.n. 2000952) enables the PF3000 to control
the rate of the Rawson processor. The Rawson Accu-Rate Tee Cable
(p.n. 2000890) provides power, radar ground speed and actual rate
(based on drive rpm) signals to the PF.

Rawson Wiring Harness--
Drive Speed Connection.

Rawson Wiring Harness--Power,
Ground Speed, and Area Count
Connections.

Rawson Accu-Rate Console

Drive B Connection

Rawson Serial
Cable (p.n.
2000952)
(Same as PC Cable)

Rawson Accu-Rate Tee Cable

(p.n. 2000890)

Drive A

Connection

Com A

Tractor Cab Cable
(p.n. 2000493)

PF3000

Port 3
