Node List View
Display the Node List View in the View panel by choosing Node List from the
view tabs. This view displays information about all node attachments to any
F_Ports on the director sorted by port number. All data is dynamic and updates
automatically as devices log in and log out.

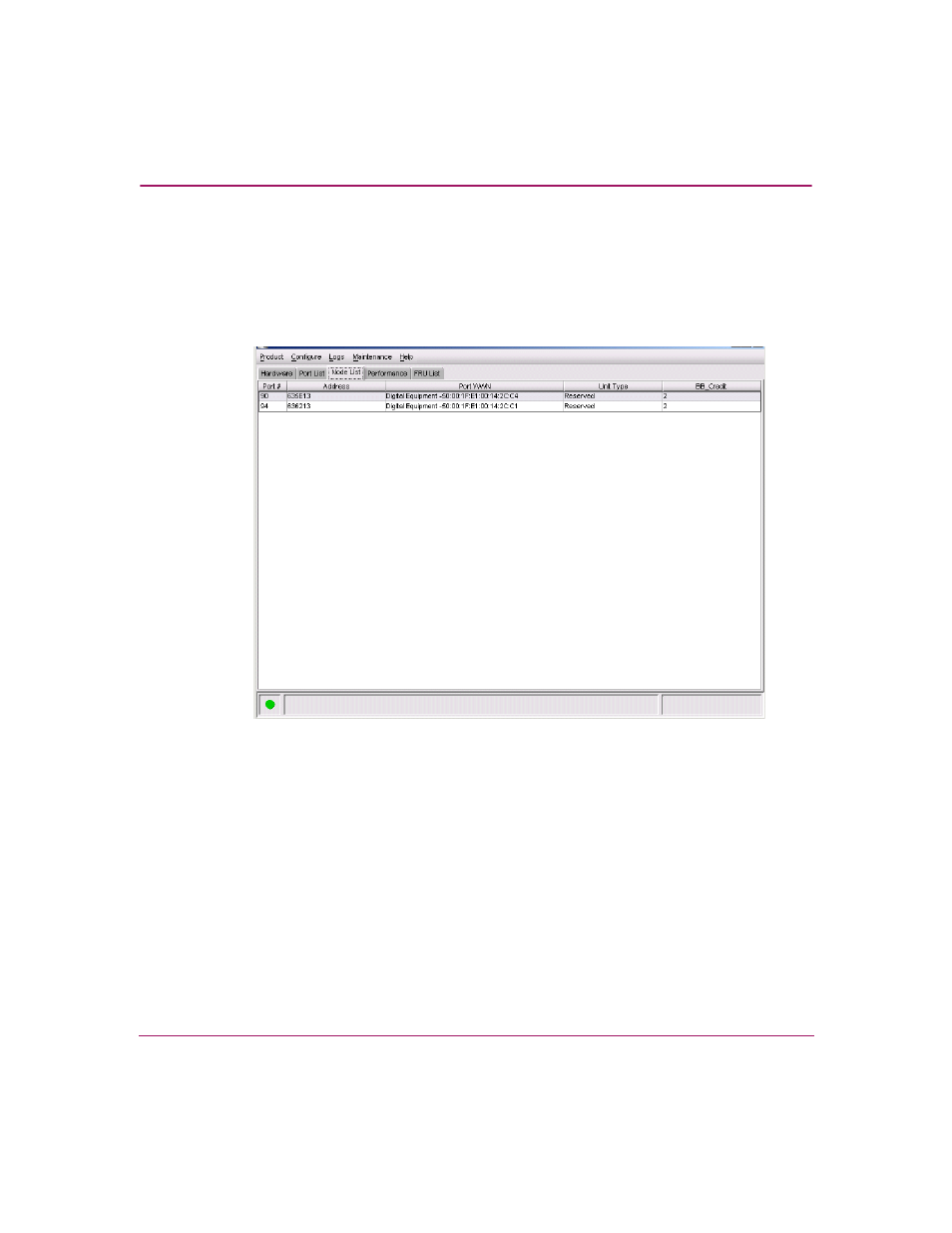

Figure 27: Node List View
Information that displays for each node includes:
■
Port #—The physical port number, from 0–63 on the Director 2/64 and 0–127
and 132–143 on the Director 2/140. Note that on the Director 2/140, ports
128–131 are internal ports and are not available for external connections.
■
Address
— In FICON management style, this displays the logical port address
(hexadecimal of port number).
— In Open Systems style, this displays the nodes Fibre Channel address.
