Monitoring and managing the Director

90

Director Element Manager User Guide

Port List View

Display the Port List View as shown in

Figure 26

in the View panel by choosing

the Port List option from the view tabs.

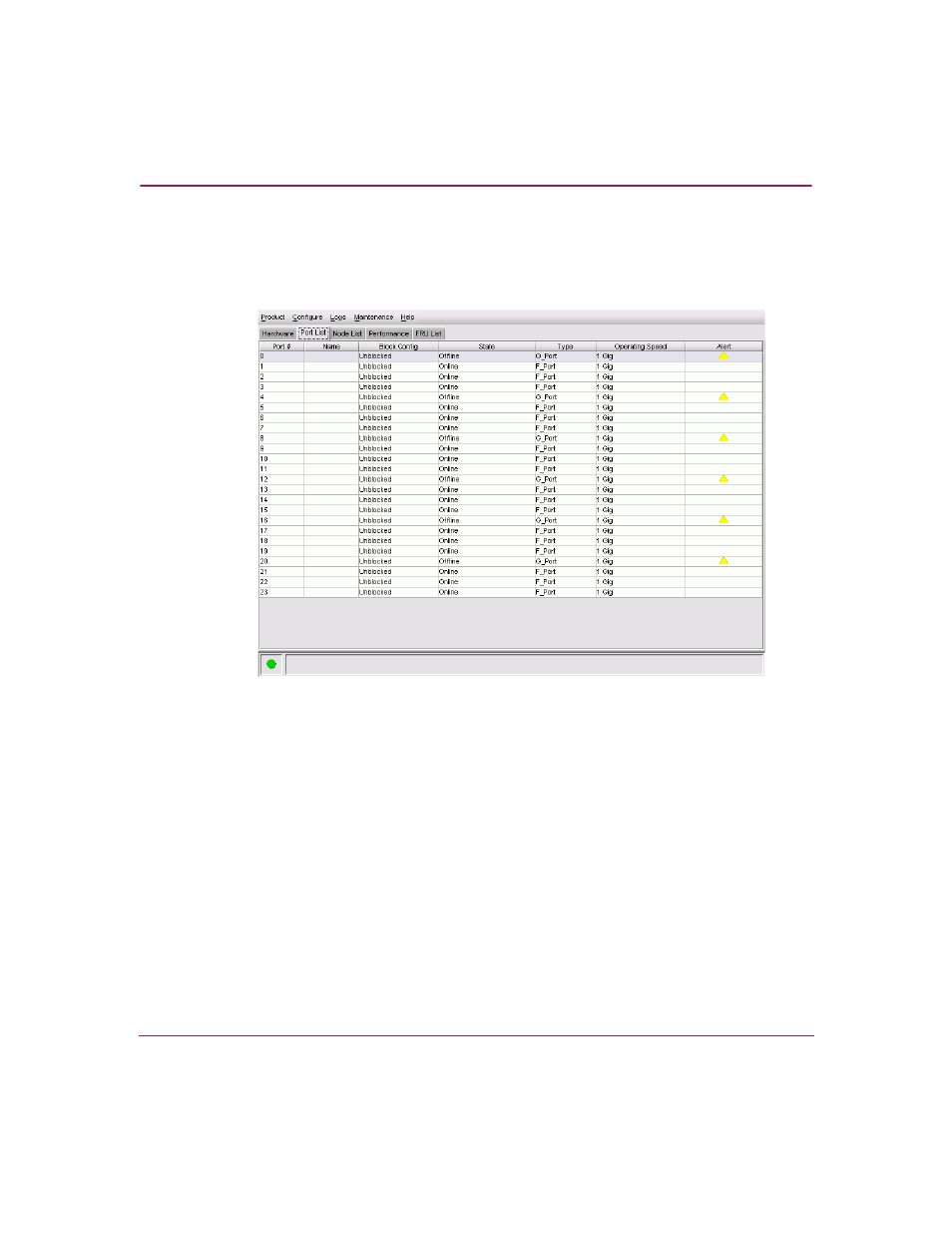

Figure 26: Port List View

The Port List View displays the following information on all ports that can be
installed in the director. All information is updated automatically.

#—The physical port number, from 0–63 on the Director 2/64 and 0–127 and
132–143 on the Director 2/140. Note that for this director, ports 128–131 are
internal ports and not available for external connections.

Addr (FICON management style only)—Displays the logical address of the
port, which is the port number in hexadecimal format. For example, the
address for port 0 is 4 (0+4). If port addresses have been swapped, those
addresses will be followed by an asterisk (*).

Name—Displays the port name as configured through the Configure Ports
dialog box.
